Before You Start

WARNING
Excessive Weight Hazard
Use two or more people to move and install washer.
Failure to do so can result in back or other injury.
To prevent floor damage, set the washer onto cardboard
before moving across floor.
Move the washer to within approximately 90 cm of the final
location.

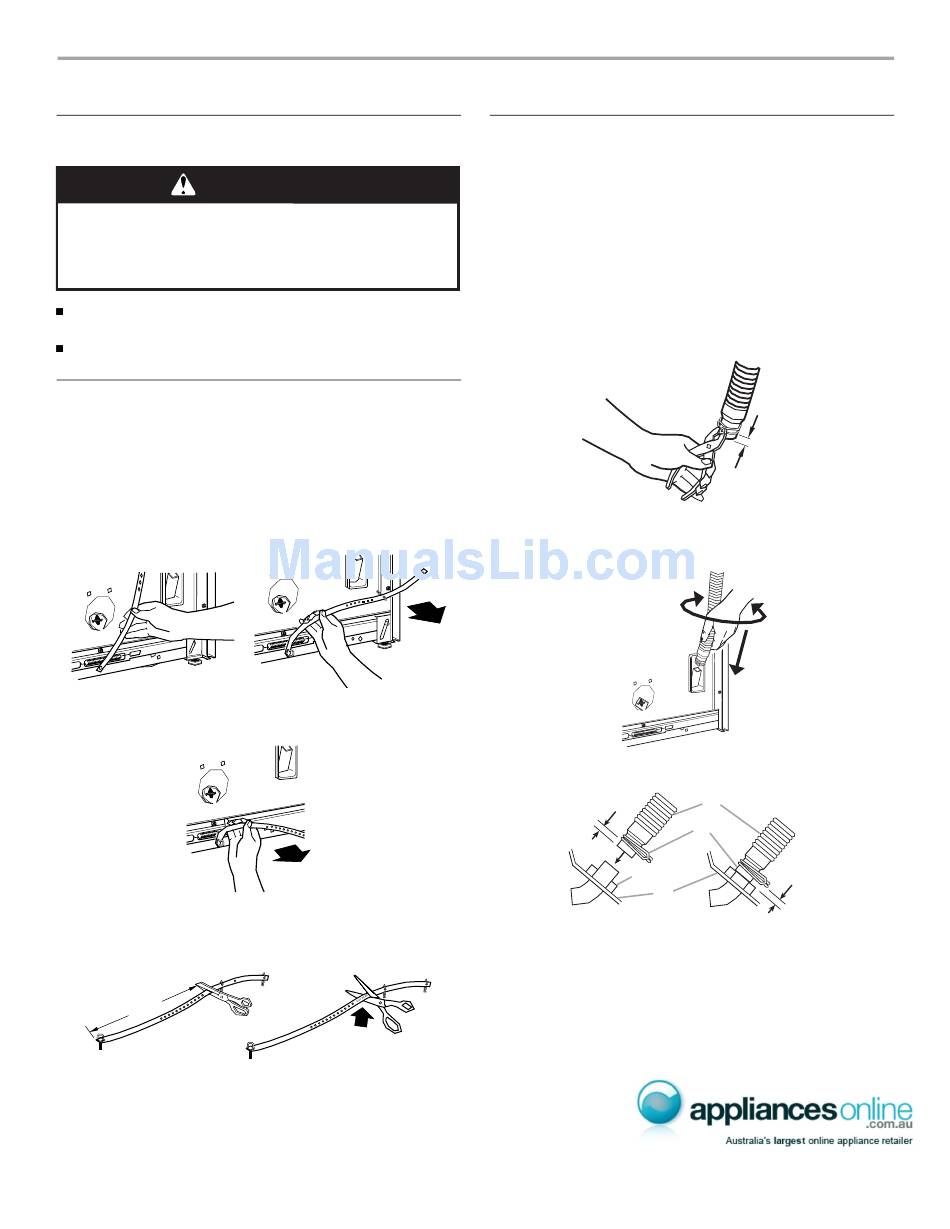

Remove Shipping Strap

Removing the shipping strap is necessary for smooth operation. If
the shipping strap is not removed, the washer will make excessive
noise. The washer must be in the upright position before removing
the shipping strap.
1. Do not cut yellow strap. Pull yellow strap firmly, until
completely removed from washer. There will be two cotter
pins on the end of the shipping strap when it is pulled out of
the washer.
2. Pull firmly to remove the end of the shipping strap that
remains pinned to the back of the washer. This will release the
rear self-leveling feet.
3. Cut the shipping strap about 40 cm from plug end. Look for
the words "CUT HERE." Discard end with the cotter pins. You
will use the remainder of the shipping strap later to secure the
drain hose.
40 cm
4

INSTALLATION INSTRUCTIONS

Connect Drain Hose

Proper connection of the drain hose will protect your floors from
damage due to water leakage. To prevent the drain hose from
coming off or leaking, it must be installed per the following
instructions.
IMPORTANT: To ensure proper installation, this procedure must
be followed exactly.
1. Check the drain hose to see that it is the proper length.
2. Wet the inside of the straight end of the drain hose with tap
water. DO NOT USE ANY OTHER LUBRICANT.
3. Squeeze ears of silver, double-wire clamp with pliers to open.
Place clamp over the straight end of the drain hose 6 mm from
the end.
4. Open clamp. Twist hose back and forth while pushing down
onto drain connector at the bottom of the washer. Continue
until hose contacts the ribbed stop on the cabinet.
5. Place clamp over area marked "CLAMP." Release clamp.
6 mm
C
D
A. Drain Hose
B. Clamp
6 mm
A
B
6 mm
C. Ribbed stop
D. Cabinet
