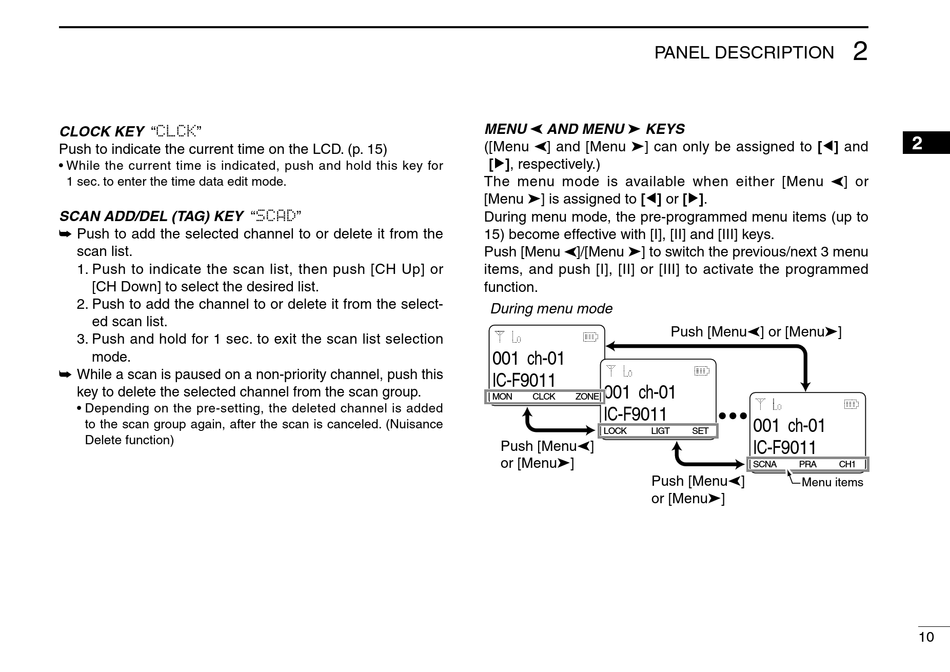

Icom IC-F9011B Instruction Manual page 15

CLOCK KEY "CLCK"
Push to indicate the current time on the LCD. (p. 15)
• While the current time is indicated, push and hold this key for
1 sec. to enter the time data edit mode.
SCAN ADD/DEL (TAG) KEY "SCAD"
➥ Push to add the selected channel to or delete it from the
scan list.
1. Push to indicate the scan list, then push [CH Up] or
[CH Down] to select the desired list.
2. Push to add the channel to or delete it from the select-
ed scan list.
3. Push and hold for 1 sec. to exit the scan list selection
mode.
➥ While a scan is paused on a non-priority channel, push this
key to delete the selected channel from the scan group.
• Depending on the pre-setting, the deleted channel is added
to the scan group again, after the scan is canceled. (Nuisance
Delete function)
PANEL DESCRIPTION
MENU AND MENU ➤ KEYS
] and [Menu ➤] can only be assigned to [Ω] and
( [Menu
[≈], respectively.)
The menu mode is available when either [Menu
[Menu ➤] is assigned to [Ω] or [≈].
During menu mode, the pre-programmed menu items (up to
15) become effective with [I], [II] and [III] keys.
Push [Menu ]/[Menu ➤] to switch the previous/next 3 menu
items, and push [I], [II] or [III] to activate the programmed
function.
During menu mode
001 ch-01
IC-F9011
001 ch-01
MON CLCK ZONE
IC-F9011
LOCK LIGT
Push [Menu ]
or [Menu�]
Push [Menu ]
or [Menu�]
] or
Push [Menu ] or [Menu�]
001 ch-01
SET
IC-F9011
SCNA PRA CH1
Menu items
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
10
