Operator's Manual
Installation & Operating manual
The harman TlC 2000 Coal/wood Stove
R11
SAFETY NOTICE
PlEASE rEAd ThIS ENTIrE mANuAl bEFOrE YOu INSTAll ANd uSE YOur NEw rOOm hEATEr. FAIlurE
TO FOllOw INSTruCTIONS mAY rESulT IN PrOPErTY dAmAgE, bOdIlY INjurY, Or EvEN dEATh.
FOr uSE IN ThE u.S. ANd CANAdA. dO NOT INSTAll IN A mObIlE hOmE.
IF ThIS STOvE IS NOT PrOPErlY INSTAllEd, A hOuSE FIrE mAY rESulT. FOr YOur SAFETY, FOllOw
INSTAllATION dIrECTIONS.
CONTACT lOCAl buIldINg Or FIrE OFFICIAlS AbOuT rESTrICTIONS ANd INSTAllATION INSPECTION
rEQuIrEmENTS IN YOur ArEA.
CONTACT YOur lOCAl AuThOrITY (SuCh AS muNICIPAl buIldINg dEPArTmENT, FIrE dEPArTmENT, FIrE
PrEvENTION burEAu, ETC.) TO dETErmINE ThE NEEd FOr A PErmIT.
CETTE guIdE d'uTIlISATION EST dISPONIblE EN FrANCAIS. ChEz vOTrE CONCESSIONNAIrE dE
hArmAN.
SAvE ThESE INSTruCTIONS.
manual # 3-90-08691
Advertisement
Table of Contents
Related Manuals for Harman Stove Company TLC 2000
Summary of Contents for Harman Stove Company TLC 2000
-
Page 1: Safety Notice

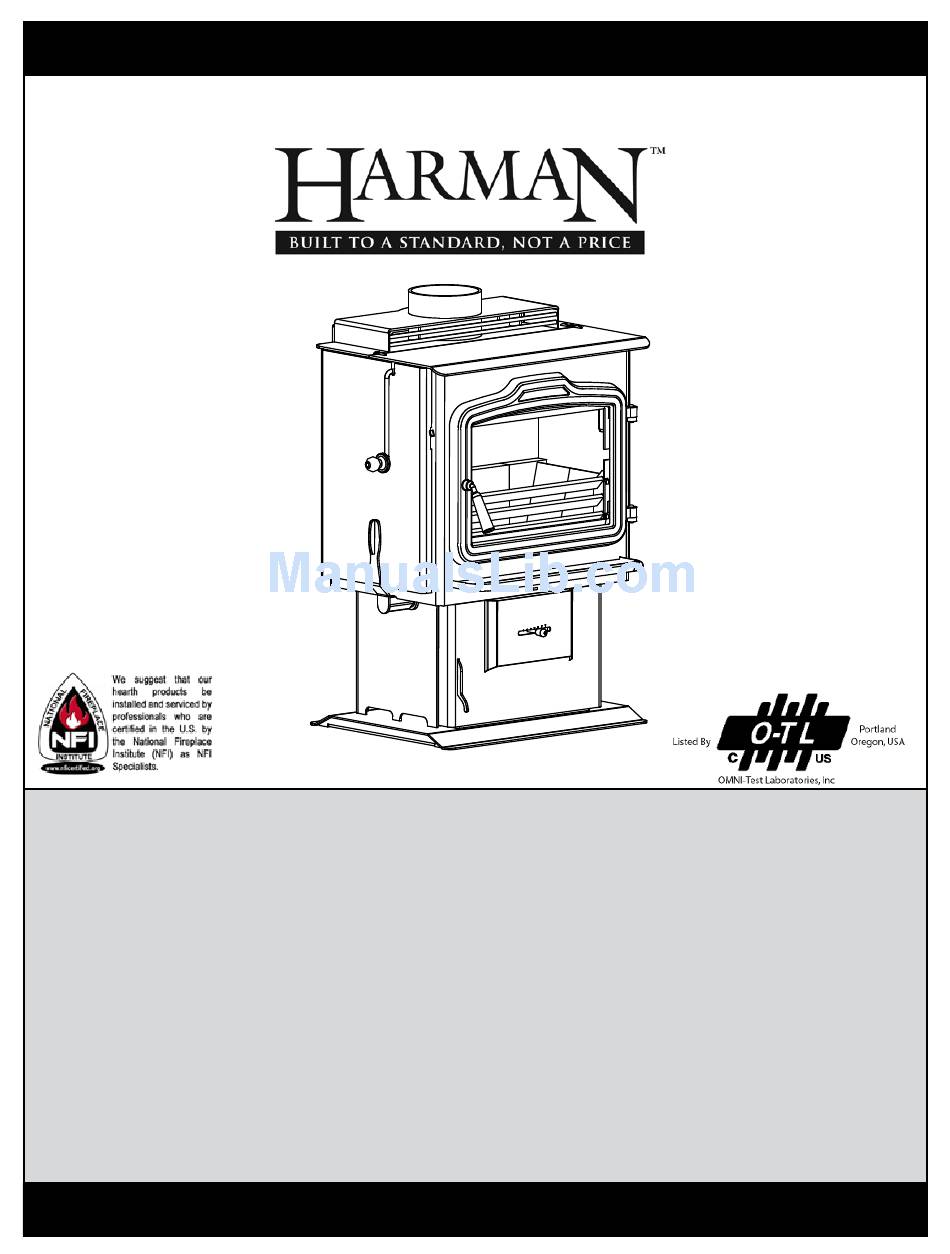

Installation & Operating manual The harman TlC 2000 Coal/wood Stove SAFETY NOTICE PlEASE rEAd ThIS ENTIrE mANuAl bEFOrE YOu INSTAll ANd uSE YOur NEw rOOm hEATEr. FAIlurE TO FOllOw INSTruCTIONS mAY rESulT IN PrOPErTY dAmAgE, bOdIlY INjurY, Or EvEN dEATh. - Page 3 TLC 2000 Coal Stove...
-
Page 4: Table Of Contents
TLC 2000 Coal Stove INDEX Specifications Operation Building a Fire Maintenance Installation Chimney System Service Parts List Warranty Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. - Page 5 The TLC 2000 is a natural draft system which If the alarm sounds relies on a properly designed chimney to remove CO 1. Increase ventilation by opening windows or and other combustion by-products from the stove.
-
Page 6: Specifications
TLC 2000 Coal Stove Specifications - TLC 2000 Weight 375 lbs Flue Size 6 inch Fuel USA: Pea, Nut, or Stove coal Cordwood with optional spark screen Canada: Wood, or coal as above. Wood alone as local codes allow Log Length Recommended 16"... - Page 7 TLC 2000 Coal Stove Clean-out Cover Top Load Door Top Load Opening Top Load Door Arm Glass Door Wood Air Control Grates (2) Coal Bars (3) Side Shield Coal Air Control Removable Shaker Handle Front Load Door Latch Ash Door...
-
Page 8: Operation
The glass used in your TLC 2000 is manufactured to exact standards to withstand the high heat of the fire, but like all Fuel should be stored in a dry place, prefferably indoors. -
Page 9: Building A Fire
TLC 2000 Coal Stove Air Controls CAuTION: THE OPERATION RANGE OF Coal THE AIR CONTROLS MAy NOT BE ALTERED The primary air control for coal burning is a knob FOR ANy REASON. located on the bottom door. Sliding the knob to the left pro- vides less air for a smaller fire. - Page 10 Operating as a Fireplace The TLC 2000 is tested and approved to be burned with the front load door open. In this mode of operation you get a true fire sound as well as appearance. Due to the crackling and popping of burning wood it is necessary to place the optional screen over the door opening.
- Page 11 TLC 2000 Coal Stove Building and Maintaining a Coal Fire; Build a wood fire as described but instead of adding larger wood, limit the size to about 2" in diameter. Add enough 2" wood that the firebox floor is covered with burning wood.
- Page 12 TLC 2000 Coal Stove Disposal of Ashes. The TLC 2000 was designed to provide access to the ash pan without the need for opening the main door. Wearing heavy protective gloves, open the ash door and remove the ash pan by pulling it forward by the handle.
-
Page 13: Maintenance
TLC 2000 Coal Stove Maintenance Like all fine equipment, your TLC 2000 requires some Glass - Replacement routine maintenance and inspection. Follow the guidelines The glass in this unit is a ceramic glass. 5mm X 444mm in this section to guarantee safe, efficient operation. - Page 14 Gaskets Gaskets are used on the doors and top lid of the TLC 2000. Blower You must check these gaskets from time to time, and replace The optional blower on your TLC 2000 stove requires very them when necessary.
-
Page 15: Installation
TLC 2000 Coal Stove Installation DO NOT INSTALL IN A SLEEPING ROOM Assembly Blower ( Optional ) Bolt the blower to the bottom rear of the stove with four Blower Variable 1/4-20 bolts. Tighten the bolts, but do not overtighten. -
Page 16: Floor Protection
TLC 2000 Coal Stove Floor Protection Parallel versus Corner Installations In all installations, the area under and around the stove A parallel installation is one in which the back and sides must be protected from falling ash and live coals. The... -
Page 17: Chimney System
When installed and operated according to this manual, the or creosote. The soot and creosote vapors condense in the TLC 2000 will produce enough hot gases to keep the chimney relatively cool chimney flue of a slow burning fire. As a result, warm so that adequate draft is maintained throughout the soot or creosote residue accumulates on the flue lining. -
Page 18: The Chimney
The 3-foot, 2-foot, 10 foot rule Heating Appliances, UL 103, or (2) a code-approved masonry chimney with a flue liner. In Canada, the TLC 2000 is listed for use with prefabricated chimneys tested and listed to the Codes require that solid-fuel chimneys extend 3 ft (0.9 m) - Page 19 ROOM. pipe must extend at least 2" (50 mm) into the room, so the connector can be attached with sheetmetal screws. The Harman TLC 2000 was tested with the fuel door open and closed. venting to a Masonry Fireplace Chimney...
-
Page 20: Service Parts List
TlC-2000 Service Parts beginning manufacturing date: N/A Top load Coal/wood Stove Ending manufacturing date: Active 1-90-08690-1 (black w/door), 1-70-08690-4 (metallic blue), 1-70-08690-5 (honey glo), 1-70-08690-10 (mojave red), 1-70-08690-12 (Forest green), ((Ending manufacturing date: june 2011)--1-70-08690-1 (black) 1-70-08690-2 (Charcoal), 1-70-08690-3 (goldenfi re)) Part number list on following page. - Page 21 TlC-2000 Service Parts beginning manufacturing date: N/A Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at depot ITEm dESCrIPTION...
- Page 22 TlC-2000 Service Parts beginning manufacturing date: N/A Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at depot ITEm dESCrIPTION...
-
Page 23: Warranty
Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance... - Page 24 WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...
- Page 25 Notes...
- Page 26 Notes...
- Page 28 Proudly Printed On 100% Recycled Paper...
