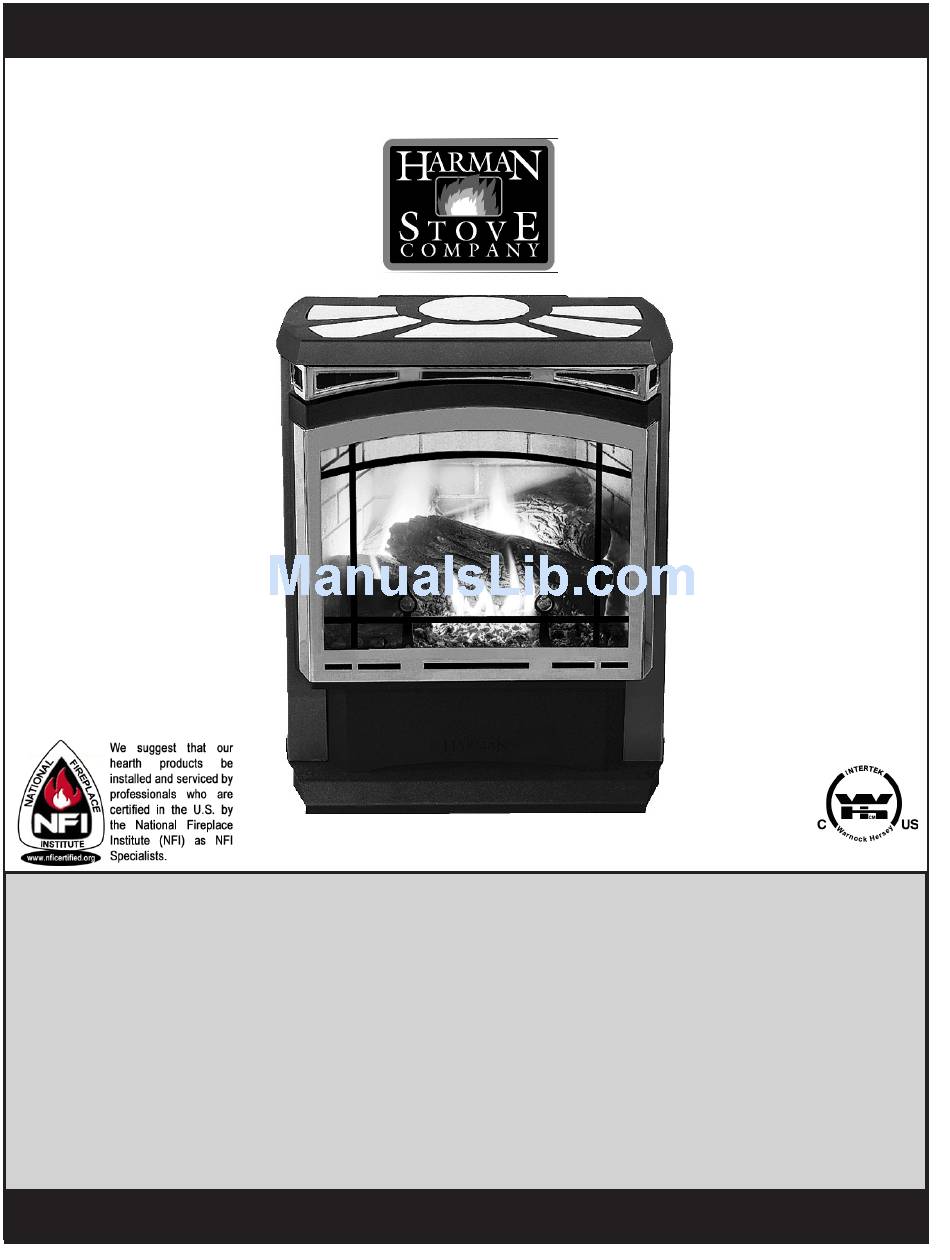

the harman conquest Gas stove
WARNING: If the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.
Installation and service must be performed by a quali-
fied installer, service agency, or the gas supplier. Do
not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appli-
ance.
Installation & Operating Manual
"Ce manuel est disponible en Français sur demande"

SAFETY NOTICE

save these instructions.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
Tested to
ANSI Z21.88-2002,
CSA2.33-M02 and
CAN-CGA-2.17-M91
r12


Advertisement

Table of Contents
loading

Related Manuals for Harman Stove Company Conquest

Summary of Contents for Harman Stove Company Conquest

  • Page 1: Safety Notice

    Installation & Operating Manual the harman conquest Gas stove Tested to ANSI Z21.88-2002, CSA2.33-M02 and CAN-CGA-2.17-M91 “Ce manuel est disponible en Français sur demande” SAFETY NOTICE WARNING: If the information in these instructions WHAT TO DO IF YOU SMELL GAS are not followed exactly, a fire or explosion may •...
  • Page 2 SAFETY NOTICE PLEASE rEAD THIS ENTIrE MANUAL bEFOrE YOU INSTALL AND USE YOUr NEW rOOM HEATEr. FAILUrE TO FOLLOW INSTrUCTIONS MAY rESULT IN PrOPErTY DAMAGE, bODILY INjUrY, Or EvEN DEATH. FOr USE IN THE U.S. AND CANADA. SUITAbLE FOr INSTALLATION IN MObILE HOMES IF THIS HArMAN STOvE IS NOT PrOPErLY INSTALLED, A HOUSE FIrE MAY rESULT.

  • Page 3: Table Of Contents

    Safety Precautions Operation Specifications Clearances venting Installation Changing To Natural Gas Option Installation Thermostat remote Control Glass Grill blower Maintainence Wiring Diagram Parts Trouble Shooting Warranty Manufactured by The Harman Stove Company 352 Mountain House rd. Halifax PA 17032...
  • Page 4 Introduction The Harman Conquest Direct Vent Gas Stove is a When operating your Harman Conquest Gas listed gas-fired direct vent room fireplace tested by Stove, respect basic safety standards. Read these Intertek Testing Services/Warnock Hersey to ANSI instructions carefully before you attempt to operate Z.88-00-CSA .33-00 and CANL/CGA-...

  • Page 5: Operation

    OPErATION WArNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. A. This appliance has a pilot. When lighting the pilot, follow instructions exactly. b. Before operating, smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.
  • Page 6 OPErATION Operation HOW TO LIGHT THE FIrE . STOP! Read the safety information on the front cover of this manual. . If using the optional thermostat, set thermostat to the lowest setting. 3. Turn off electric power to the optional blower. 4.
  • Page 7 OPErATION 15. Set the High-Low Regulator to desired setting: Turn fully counterclockwise for High and fully clockwise for Low. If using a Thermostat, keep on High setting. Flame Height NOTE: An odor, resulting from the initial heating Adjuster of new materials in your heater, is not unusual during the first fire, and in most cases will disap- pear after an hour or two.

  • Page 8: Venting

    vENTING Only For Qualified Installers 4.0 4.974 rATINGS NATUrAL PrOPANE Input Rating (Btu/hr)(0-4500 ft.)(0-1375 m) 29000 29000 Min. Input Rating (Btu/hr)(0-4500 ft.)(0-1375 m) 14900 14100 Orifices (DMS)(0-4500 ft.)(0-1375 m) Manifold Pressure (in w.c./kPa) 3.8/.95 11.0/2.75 Min. Manifold Pressure (in w.c./kPa) ./.7 .8/.7 Min.
  • Page 9 vENTING Only For Qualified Installers MINIMUM CLEArANCES FrOM COMbUSTIbLE CONSTrUCTION Unit to corner walls  in. Unit to side wall 8 in. Unit to back wall 3 in. Unit to alcove ceiling 6 in. Maximum alcove depth 6 in. Electrical Rating: 120 Volts, 60 Hz, <...
  • Page 10 (3.5 kPa). or wood panel extending the full width and depth of The Conquest gas control valve must be in the OFF the appliance. position during any pressure testing of the gas supply sys- tem at pressures equal to or less than 1/2 psig (3.5 kPa).
  • Page 11 Consult your local building codes before beginning the installation, and follow the manufacturer’s instructions exactly. The Simpson Duravent GS venting components listed below are approved for use with the Conquest Direct Vent Gas Stove. Part Numbers for SimpsonDura-vent Pipe and Fittings 6-5/8 x 4 8”...
  • Page 12 vENTING Only For Qualified Installers Selkirk Direct-Temp vs. Simpson Dura-vent Direct vent GS Simpson Dura-vent Direct vent GS Selkirk Direct-Temp Stock No. Description Stock No. Description 4DT-6 6” Pipe Length, Galvanized 6” Pipe Length, Galvanized 908B 6” Pipe Length, Black 4DT-6B 6”...
  • Page 13 vENTING Only For Qualified Installers SECUrE vENT DIrECT vENT SYSTEM - 4” x 6-5/8” and 5” x 8” Cross Reference List Secure Simpson Dura-vent Secure Simpson Dura-vent vent Direct vent GS Direct vent GS vent Description Stock No. Cat No. Stock No.
  • Page 14 vENTING Only For Qualified Installers Montigo Direct vent Standard Series Direct vent (4”/ 7”) Description Order Code HOrIzONTAL TErMINATIONS 3” length, no mounting frame (use with MSr or MOSr) ....MTO3 3” Termination, with integral mounting frame ........MTO3F vErTICAL TErMINATION Termination for vertical installations ..........MvTK1 Includes MXT-10 adaptor (for straight, vertical installations) Termination Touch-Up Paint ............Paint03...
  • Page 15 vENTING Only For Qualified Installers Montigo Direct vent Standard Series Direct vent (4”/ 7”) Description Order Code SNOrKEL TErMINATIONS 18” vertical rise ................SNK47-2 30” vertical rise ................SNK47-3 HEAT GUArD Fits all Standard Series (4/7”) terminations ........MTKOG HEAT SHIELDS Through-the-wall radiation Shield for 4”/7” venting .......rHS100 vinyl Siding Shield recommended for protecting vinyl siding ...
  • Page 16 vENTING Only For Qualified Installers Montigo Direct vent Premium Series Direct vent (5”/8”) Description Order Code HOrIzONTAL TErMINATIONS 3” Termination with no mounting frame (male connector)...... PTO3 (use with MSr or MOSr). 3” Termination & mounting frame (male connector)......PTO3F vErTICAL TErMINATION Termination for vertical installations (male connector) ......
  • Page 17 vENTING Only For Qualified Installers Montigo Direct vent Premium Series Direct vent (5”/8”) Description Order Code SNOrKEL TErMINATIONS 18” vertical rise ..................SNK58-2 30” vertical rise ..................SNK58-3 INSULATED OFFSET bOX M38Dv-ST offset box. Used only on the M38Dv-ST when a shelf or T.v.
  • Page 18 vENTING Only For Qualified Installers eXceLdirect - component List Ø4” i.d Ø5” i.d. Liste des composants component name Ø 6 5/8” o.d Ø8” o.d Longueurs Lengths Longueur 6’’, Galvalume 6” Length, Galvalume TC-4DL6 TC-5DL6 Longueur 6’’, Noire 6” Length, Black TC-4DL6B TC-5DL6B Longueur 12’’, Galvalume...
  • Page 19 vENTING Only For Qualified Installers venting with 6 ” x 4” Pipe This appliance must not be connected to a chimney flue serving a separate solid fuel burning Maximum of four 45 elbows allowed. appliance. Subtract three feet of total horizontal pipe Venting terminals shall not be recessed length for each of the 3rd and 4th 45 elbows...
  • Page 20 vENTING Only For Qualified Installers (a) Termination 10 ft. (3 m) or less from ridge, wall, or parapet (b) Termination more than 10 ft. (3 m) from ridge, wall, or parapet The following diagram and table detail the restrictions on the vent terminal location.
  • Page 21 vENTING Only For Qualified Installers Canadian Installations US Installations  Inches (30 cm) Clearance above grade,  inches (30 cm) veranda, porch, deck, or balcony 6 Inches (15 cm) for appliance < 0,000 6 Inches (15 cm) for appliance < 0,000 Clearance to window or door Btuh (3 kW),  inches (30 cm) for that may be opened...
  • Page 22 vENTING Only For Qualified Installers Damper Settings Top Vent Only Vent damper shown in the Maximum Draft”OPEN” position for top vent. Note: This would be the Minimum Draft”CLOSED” position if a rear vent was installed. CLOSED A vent damper is provided to allow fine tuning of the draft.

  • Page 23: Installation

    Part No. 1-00-09112 Use a /” deep well socket to remove the LP #53 orifice and replace This kit is only for use in the Conquest direct with the #37 Natural gas vent gas stove. orifice from the kit. Remove pilot tower with a 7/16”...
  • Page 24 INSTALLATION Only For Qualified Installers Reinstall burner module back into the stove with the four bolts that were removed. Check gasket for damage Note: The higher the orifice number the smaller and replace if necessary. Check for gas hole in the tip. For example, a number 52 orifice leaks when finished.

  • Page 25: Log Placement

    INSTALLATION Only For Qualified Installers Log Placement Rear Log Wool Nuggets Front Log Place the rear log behind the front log with the branch resting on the front log on the right side as shown. before lighting a fire check that the rear log is as far back against the rear wall as Andirons possible.
  • Page 26 Tile Kit Each tile kit contains six tiles and fifteen allen- set screws. If the Conquest is installed as a top vent, then the round tile is not used. If it is installed as a rear vent, then the trim ring is not used.

  • Page 27: Thermostat

    INSTALLATION - Options Only For Qualified Installers Connecting the Optional Thermostat If the optional thermostat is used, it must be plugged into the TH terminals located on the valve. When installing a millivolt control system, use only a special low resistance thermostat. DO NOT USE A REGULAR HEATING THERMOSTAT.
  • Page 28 INSTALLATION - Options Only For Qualified Installers Optional blower The Blower Kit (Part # -00-090) includes a blower assembly ready to bolt to the left side of the stove and a blower chamber cover. The blower has a variable speed control knob to adjust the blower speed as desired.
  • Page 29 MAINTENANCE A qualified service person should conduct an annual inspection and maintenance of your Conquest, Clip its venting, and the installation to keep it running Door Glass safely and efficiently. The following procedures Gold Frame should be performed only by a qualified service per- son.
  • Page 30 MAINTENANCE Inspecting the venting An inspection of both the inner and outer pipes of the venting system should be made during the an- nual service appointment. There must be no blockage and be in good repair. The vent manufacturer’s in- Air Out structions may provide specific suggestions or details on vent inspection.

  • Page 31: Blower

    MAINTENANCE Optional blower Wiring Low voltage Wiring Diagram ( 120 volt ) Diagram Temperature Switch ON/OFF Switch Blower Speed Control Valve Power Cord WARNING: This heater is equipped with a three-pronged grounding plug that should be plugged directly into a properly grounded receptacle.

  • Page 32: Parts

    MAINTENANCE Parts ) -89-0900 Body weldment 4) -0-7330 Right side panel ) -0-0900 LP valve assembly 25) 1-10-73129 Left side panel 3) -00-090 Optional blower 6) -00-7347 Spring clamp 4) 1-00-09105 Optional window grid 7) -00-7348 Spring clips 5) 1-10-73102 Pedestal weldment 8) 3-3-039 Door springs...

  • Page 33: Burner Parts

    MAINTENANCE burner Parts 1) 3-40-08715 LP pilot 10) 3-40-09210(A) Hood (orifice) elbow ) -00-73 Igniter mount 11) 3-40-09210(B) #53 hood (orifice) 3) 3-40-08220 Igniter (piezo) ) -0-73 Valve body weldment 4) 3-3-0900 90 degree street elbow 13) 3-30-937161501 3/8” elevator bolt 5) 3-40-09106 50% turn down LP valve 14) 3-31-08284...

  • Page 34: Trouble Shooting

    TrOUbLE SHOOTING Only For Qualified Installers Pilot does not light after many tries. Check ignitor wire and Look to see if a spark jumps Reconnect or replace connections from piezo ignitor from the ignitor electrode Ignitor wire. to ignitor ceramic at pilot. to the pilot when the ignitor button is pushed.
  • Page 35 TrOUbLE SHOOTING Only For Qualified Installers Pilot does not stay lit Check inlet pressure Correct inlet pressure Good Adjust pilot adjustment to Check size of pilot flames achieve proper flame. Good Check Milivolt output Replace Thermocouple of thermocouple. Should be 10 or more Mv. Good replace valve...
  • Page 36 TrOUbLE SHOOTING Only For Qualified Installers Main burner will not light (with valve in “on” position) Light pilot Is Pilot lit Check Thermopile voltage at terminals marked TP on valve. too low Replace Thermopile Should be approximately 200 mv with switch “on” and approximately 400 mv with switch “off”.
  • Page 37 LAbELS Only For Qualified Installers...

  • Page 38: Warranty

    Harman Stove Company. This warranty does not apply if the product has been altered in any way after leaving the factory. Harman Stove Company and its agents assume no liability for “resultant damages of any kind” arising from the use of its products. In addition, the manufacturer and its warranty administrator shall be held free and harmless from liability from damage to property related to the operation, proper or improper, of the equipment.
