Perfect Fit 2009-2012 Toyota RAV4 (Without JBL System)
Installation Manual
KTX-RV48-S

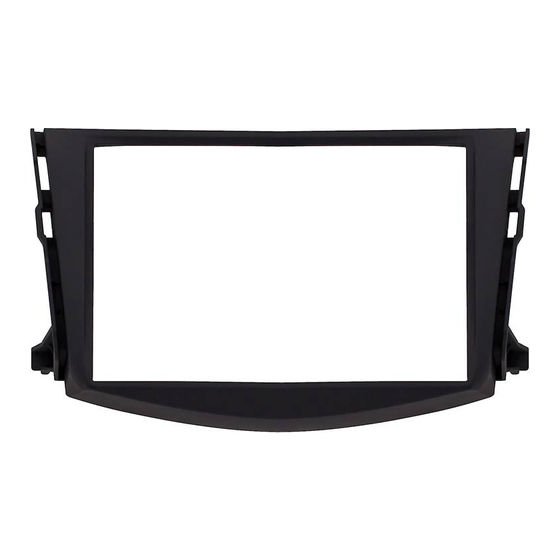

RAV4 Trim Panel x 1
Steering Wheel Interface
Power Harness x 1
Module x 1
Left Bracket x 1
Right Bracket x 1
Introduction
This KTX-RV48-S Perfect Fit installation kit is for Select 2009-2012 Toyota RAV4 vehicles. In-
cluded are all the parts needed to install your Alpine INE-Z928HD Audio Video Navigation system
in Select 2009-2012 Toyota RAV4 vehicles. KTX-RV48-S Perfect Fit installation kit also includes
an interface module that allows steering wheel remote control of the Alpine system. Refer to the
individual instruction sections of this manual to remove your vehicle's factory radio and assemble
the kit.
Caution! Disconnect your vehicle's negative battery terminal before the installation to
help prevent electrical damage. We recommend the use of a digital multimeter to check
vehicle wiring. Do not use a test light! A test light or grounded wire probe can cause
damage to the vehicle's computer and/or diagnostic systems. Avoid all factory airbag
wiring. Airbags can accidentally deploy causing serious injury or even death.
Notes:
instructions.
1
