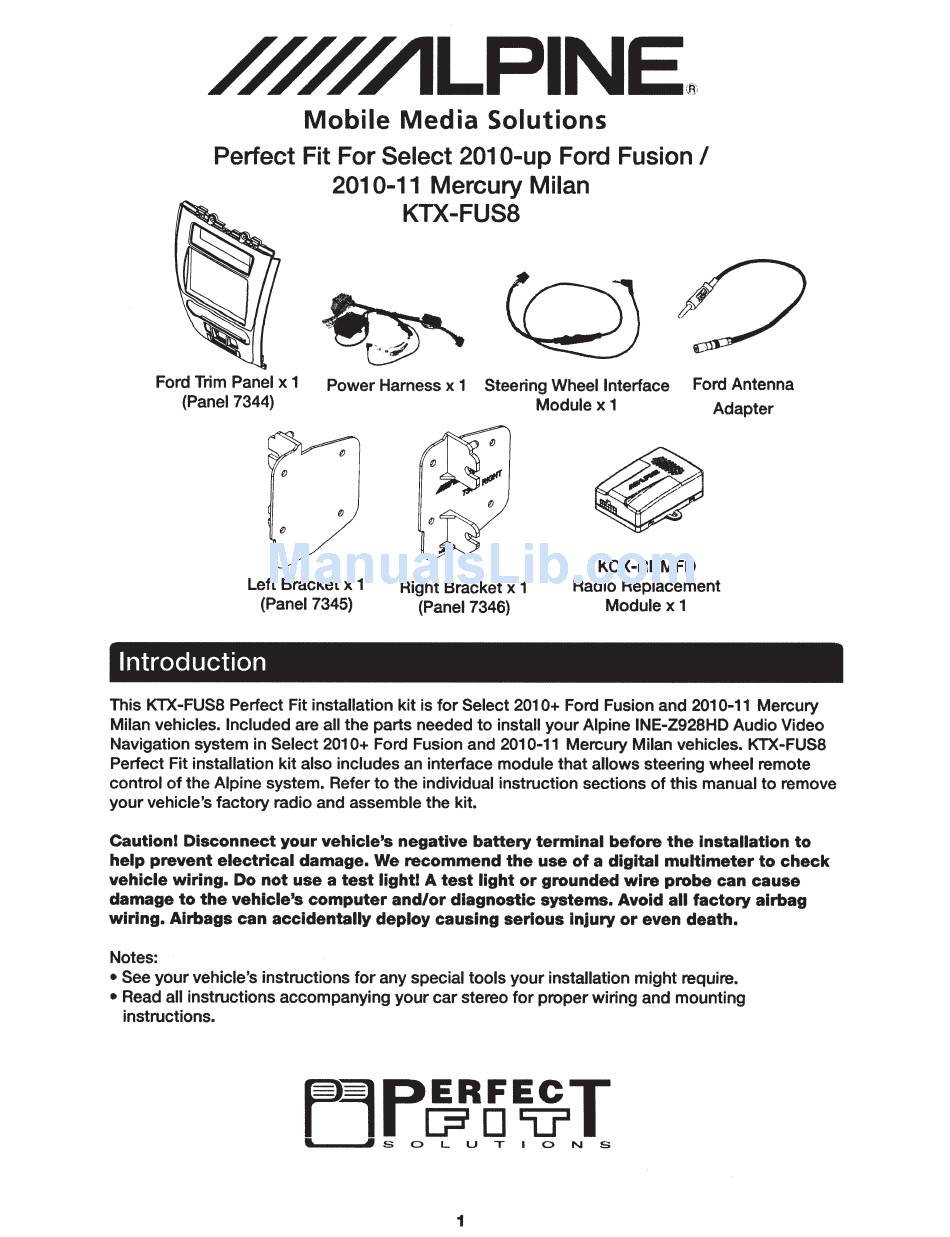

Perfect Fit For Select 201 0-up Ford Fusion I
Ford Trim Panel x 1
(Panel 7344)
2010-11 Mercury Milan
KTX-FUSS
Power Harness
x
1
Steering Wheel Interface
Module
x
1
Ford Antenna
Adapter
Left Bracket x 1
(Panel 7345)
Right Bracket x 1
(Panel 7346)
KCX-RRMFD
Radio Replacement
Module x 1
Introduction
This KTX-FUS8 Perfect Fit installation kit is for Select 2010+ Ford Fusion and 2010-11 Mercury
Milan vehicles. Included are all the parts needed to install your Alpine INE-Z928HD Audio Video
Navigation system in Select 2010+ Ford Fusion and 2010-11 Mercury Milan vehicles. KTX-FUS8
Perfect Fit installation kit also includes an interface module that allows steering wheel remote
control of the Alpine system. Refer to the individual instruction sections of this manual to remove
your vehicle's factory radio and assemble the kit.
Caution! Disconnect your vehicle's negative battery terminal before the Installation to
help prevent electrical damage. We recommend the use of a digital multimeter to check
vehicle wiring. Do not use a test light! A test light or grounded wire probe can cause
damage to the vehicle's computer and/or diagnostic systems. Avoid all factory airbag
wiring. Alrbags can accidentally deploy causing serious injury or even death.
Notes:
• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo for proper wiring and mounting
instructions.
