CHAPTER 3.
R1900J
PRODUCT DESCRIPTION

[1] SPECIFICATIONS

ITEM
Power Requirements
Power Consumption
Power Output
Outside Dimensions
Control Complement
Weight

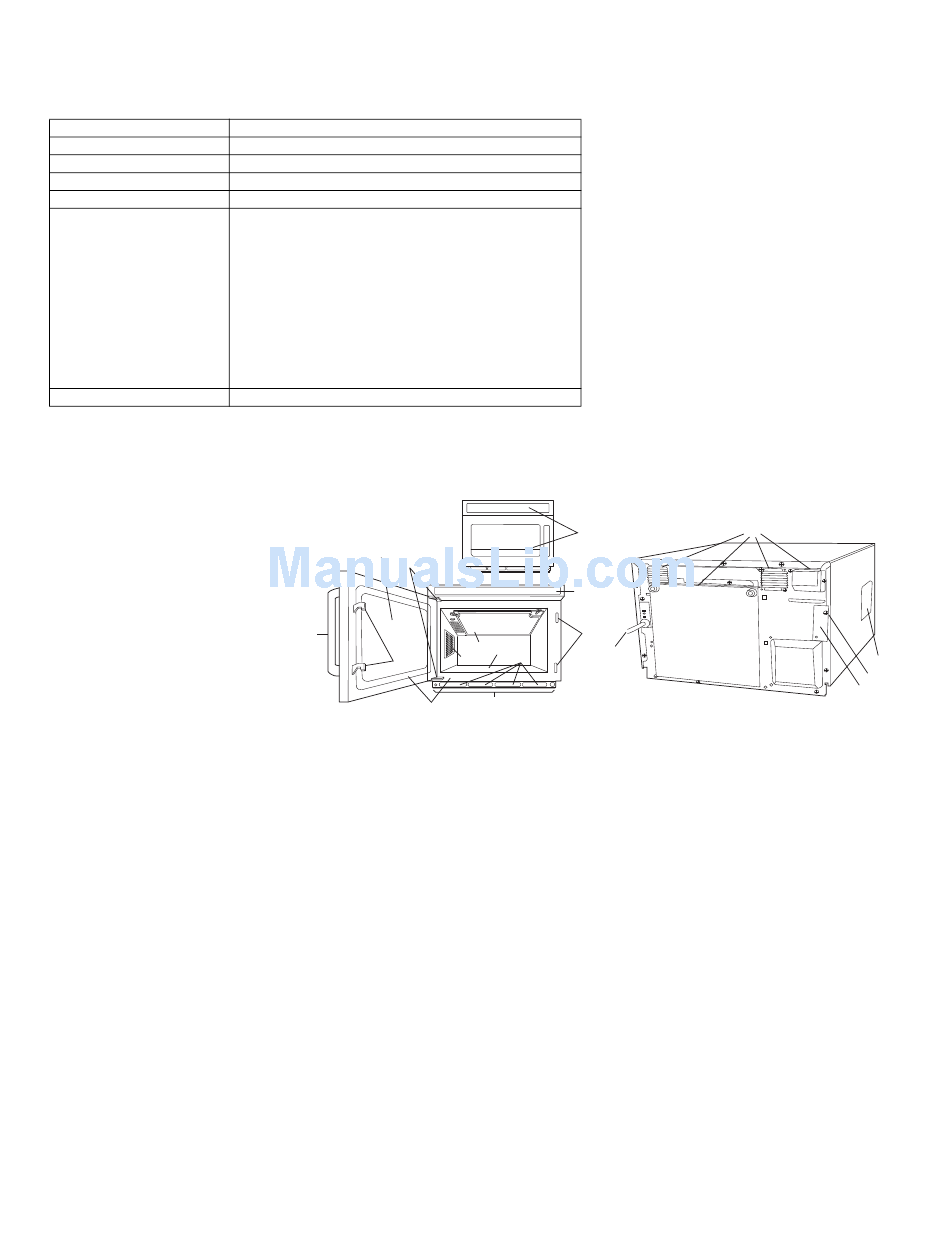

[2] APPEARANCE VIEW

1. OVEN
1. Touch control panels
2. Door latch openings
3. Ceramic shelf
4. Oven lamp
5. Air intake openings
6. Air intake flter
7. Door seals and sealing surfaces
8. Door hinges
9. Oven door with see-through window
10. Door latches
11. Door handle
12. Access cover for replacing the oven lamp
13. Ventilation openings
14. Power supply cord
15. Mounting plate
16. Screw for mounting plate
17. Splash cover
DESCRIPTION
Single phase 230 - 240V, 50Hz, 3 wire earthed
2.8kW
1900W Operating frequency 2450 MHz (IEC60705)
445mm (W) x 573mm (D) x 346mm (H) (including feet)
Touch Control System
Digital Display
Ten number Pads
STOP/CLEAR pad
CUSTOM SETTING pad
START pad
POWER LEVEL pad (Power level: 0 to 100%)
MANUAL/ REPEAT pad
DOUBLE/ TRIPLE QUANTITY pad
EXPRESS DEFROST pad
SET MEMORY pad
Approx. 33.5 kg
9
8
11
10
1
1
2
17
3
5
4
6
7
3 – 1
13
14
R1900J
12
16
15
