[19] OVEN LAMP AND LAMP SOCKET REMOVAL

1. CARRY OUT 3D CHECKS.
2. Remove the oven lamp.
3. By pushing the tab, remove the lamp spacer with the lamp socket
from the lamp angle assembly.
4. Remove the lamp spacer from the lamp socket.
5. Pull the wire leads from the oven lamp socket by pushing the termi-
nal hole of the oven lamp socket with the small flat type screw
driver.
6. Now, the oven lamp socket is free.
Terminal
Wire lead

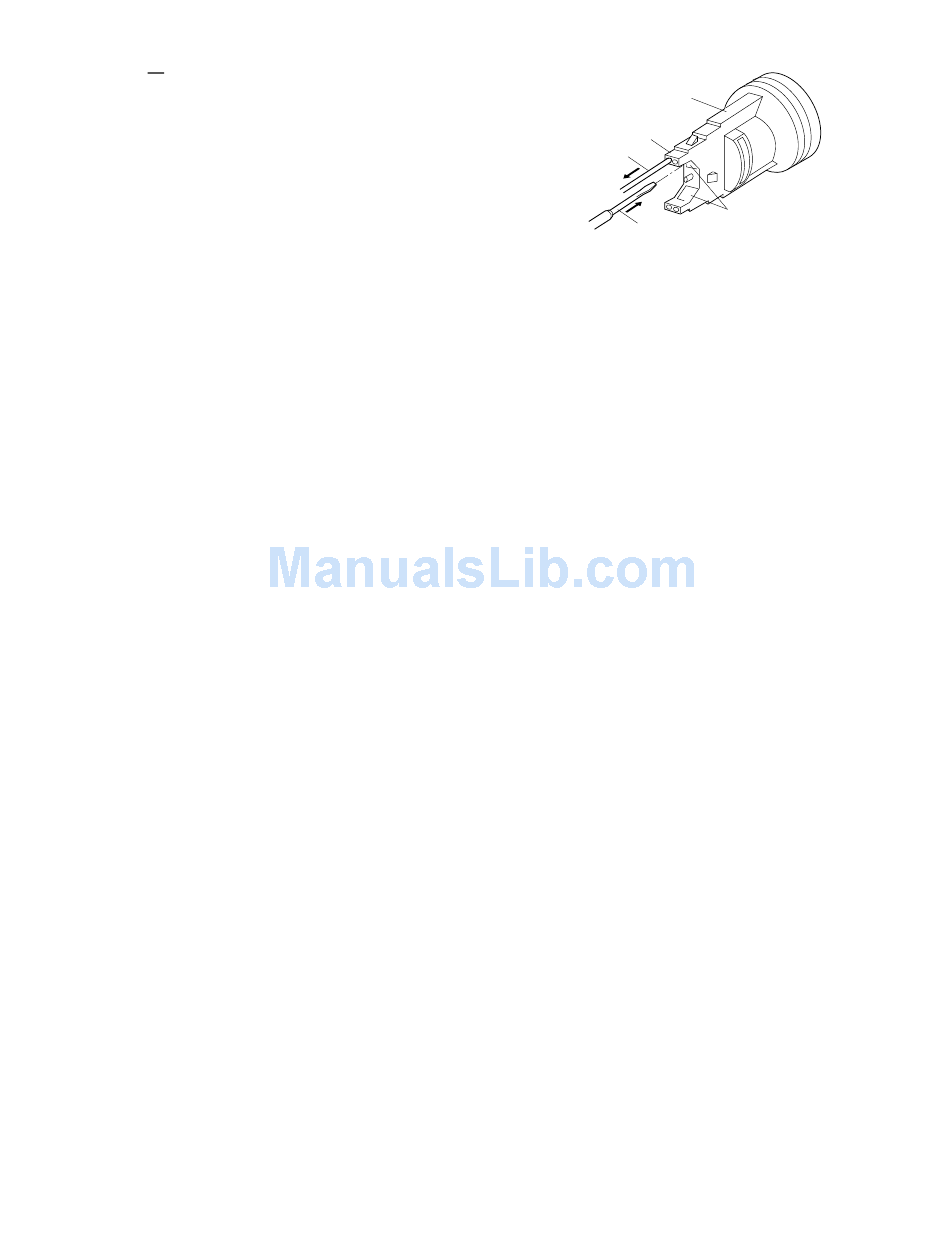

Figure C-8. Oven lamp socket
9 – 8
Oven lamp
socket
Terminal hole
Flat type small
screw driver
