R1900J

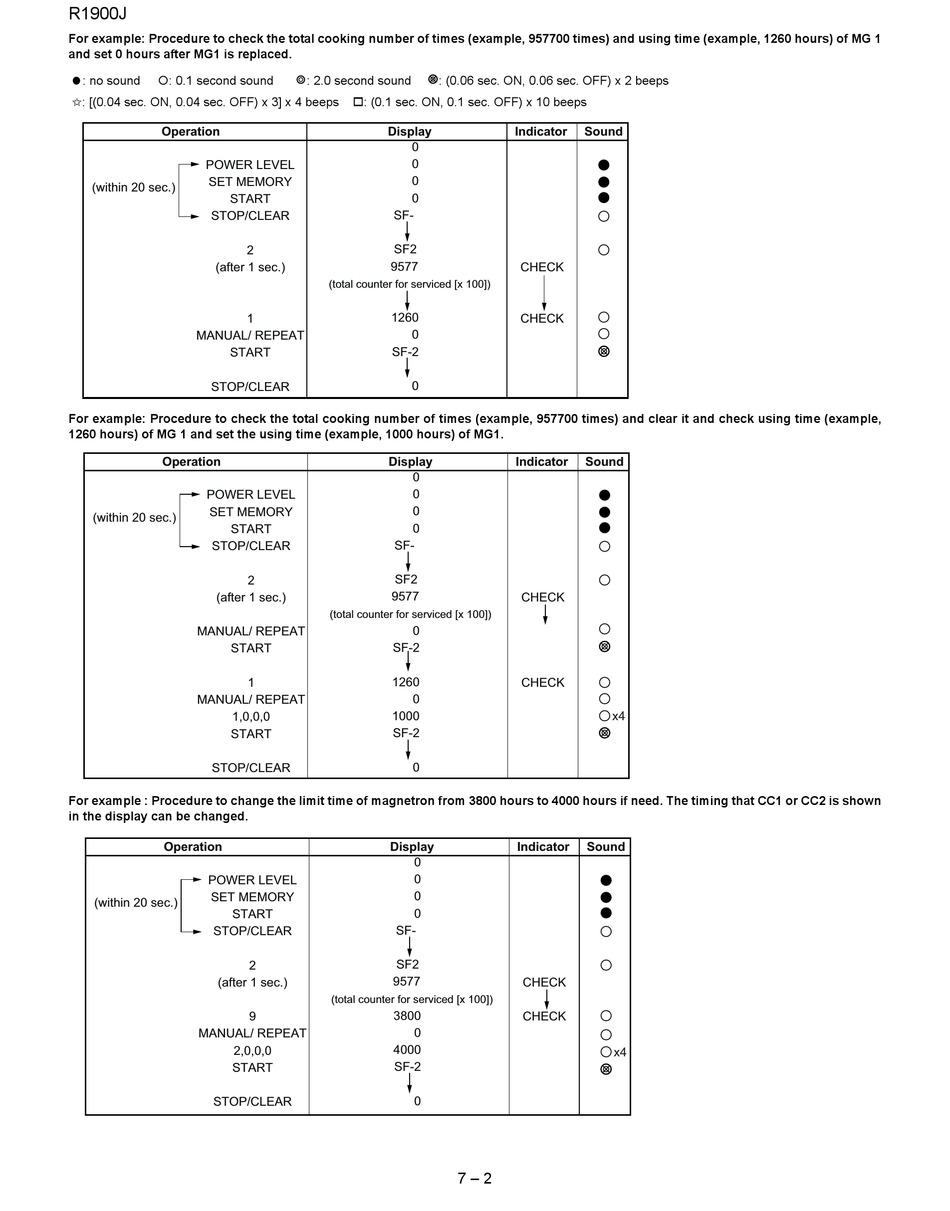

For example: Procedure to check the total cooking number of times (example, 957700 times) and using time (example, 1260 hours) of MG 1
and set 0 hours after MG1 is replaced.
: no sound : 0.1 second sound
✩: [(0.04 sec. ON, 0.04 sec. OFF) x 3] x 4 beeps
Operation
POWER LEVEL
SET MEMORY
(within 20 sec.)
START
STOP/CLEAR
(after 1 sec.)
MANUAL/ REPEAT
START
STOP/CLEAR
For example: Procedure to check the total cooking number of times (example, 957700 times) and clear it and check using time (example,
1260 hours) of MG 1 and set the using time (example, 1000 hours) of MG1.
Operation
POWER LEVEL
SET MEMORY
(within 20 sec.)
START
STOP/CLEAR
(after 1 sec.)
MANUAL/ REPEAT
START
MANUAL/ REPEAT
1,0,0,0
START
STOP/CLEAR
For example : Procedure to change the limit time of magnetron from 3800 hours to 4000 hours if need. The timing that CC1 or CC2 is shown
in the display can be changed.
Operation
POWER LEVEL
SET MEMORY
(within 20 sec.)
START
STOP/CLEAR
(after 1 sec.)
MANUAL/ REPEAT
2,0,0,0
START
STOP/CLEAR
: 2.0 second sound
: (0.1 sec. ON, 0.1 sec. OFF) x 10 beeps
Display
0
0
0
0
SF-
SF2
2
9577
(total counter for serviced [x 100])
1 1260
0
SF-2
0
Display
0
0
0
0
SF-
2 SF2
9577
(total counter for serviced [x 100])
0
SF-2
1260
1
0
1000
SF-2
0
Display
0
0
0
0
SF-
2 SF2
9577
(total counter for serviced [x 100])
3800
9
0
4000
SF-2
0
: (0.06 sec. ON, 0.06 sec. OFF) x 2 beeps
Indicator Sound
CHECK
CHECK
Indicator Sound
CHECK
CHECK
Indicator Sound
CHECK
CHECK
7 – 2
x4
x4
