Sharp R-1900J Service Manual page 38

R1900J

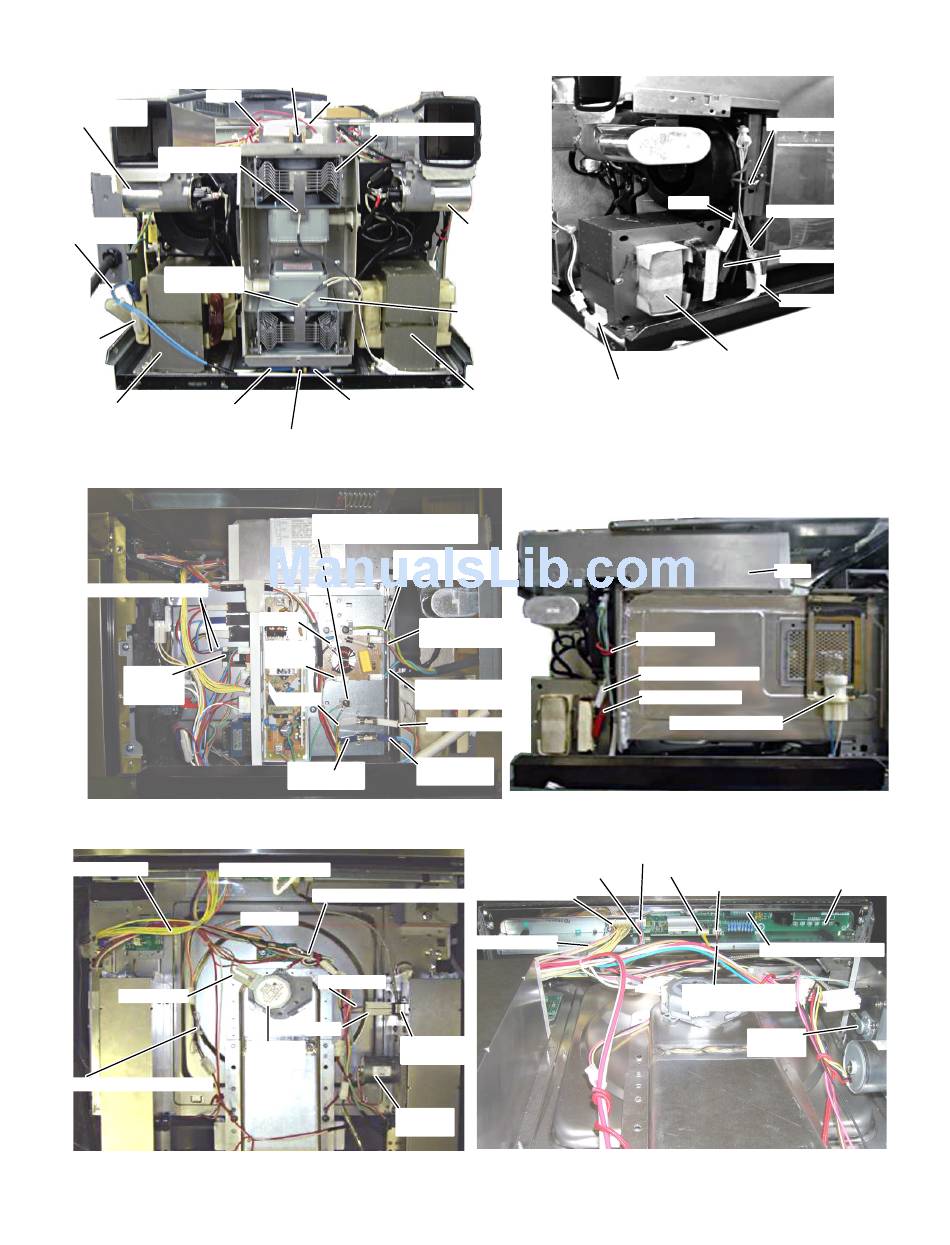

[2] Figure S-1. Pictorial Diagram
Red
High voltage
capacitor (2)
Magnetron
thermistor (1)
Blue
(Blue case)
Magnetron
thermistor (2)
Gray
Blue
Power
(Blue case)
transformer (2)
Wire leads to cook relay
Current
transformer
CT1
CPU harness White/Orange/Blue
White/Gray
Weak point for Fan motor
TOP VIEW
Magnetron temp.fuse (1)
White
MG1: Magnetron
Gray
(Blue case)
Magnetron temp.fuse (2)
REAR VIEW
Earth position of power unit
and door sensing switch
Green/Yellow wire
of power supply cord
Black
Gray/
White
Blue wire of
power supply cord
Brown
Blue/Blue
Yellow
(Blue case)
(Blue case)
RIGHT SIDE VIEW
Weak point for Fan motor
Red/Red
Brown/Red
Black
Oven temp.
Antenna
fuse
motor
Exhaust
fan motor
High voltage
capacitor (1)
Magnetron (2)
Power
transformer (1)
Brown wire of
power supply cord
Red/Brown
Sensor harness
Connector CN-F
CPU harness
11 – 3
Wire holder
White
CPU harness
Red (Red case)
Crosstape
Power transformer (1)
Crosstape
Blue
Wire holder
White (White case)
Red (Red case)
Oven lamp socket
LEFT SIDE VIEW
Connector CN-G
Connector CN-Z
Connector CN-H
Key unit ribbon cable
Harness of
exhaust thermistor
Exhaust
thermistor
CONTROL UNIT
Control
unit
