CHAPTER 4.
RCD1200M
PRODUCT DESCRIPTION

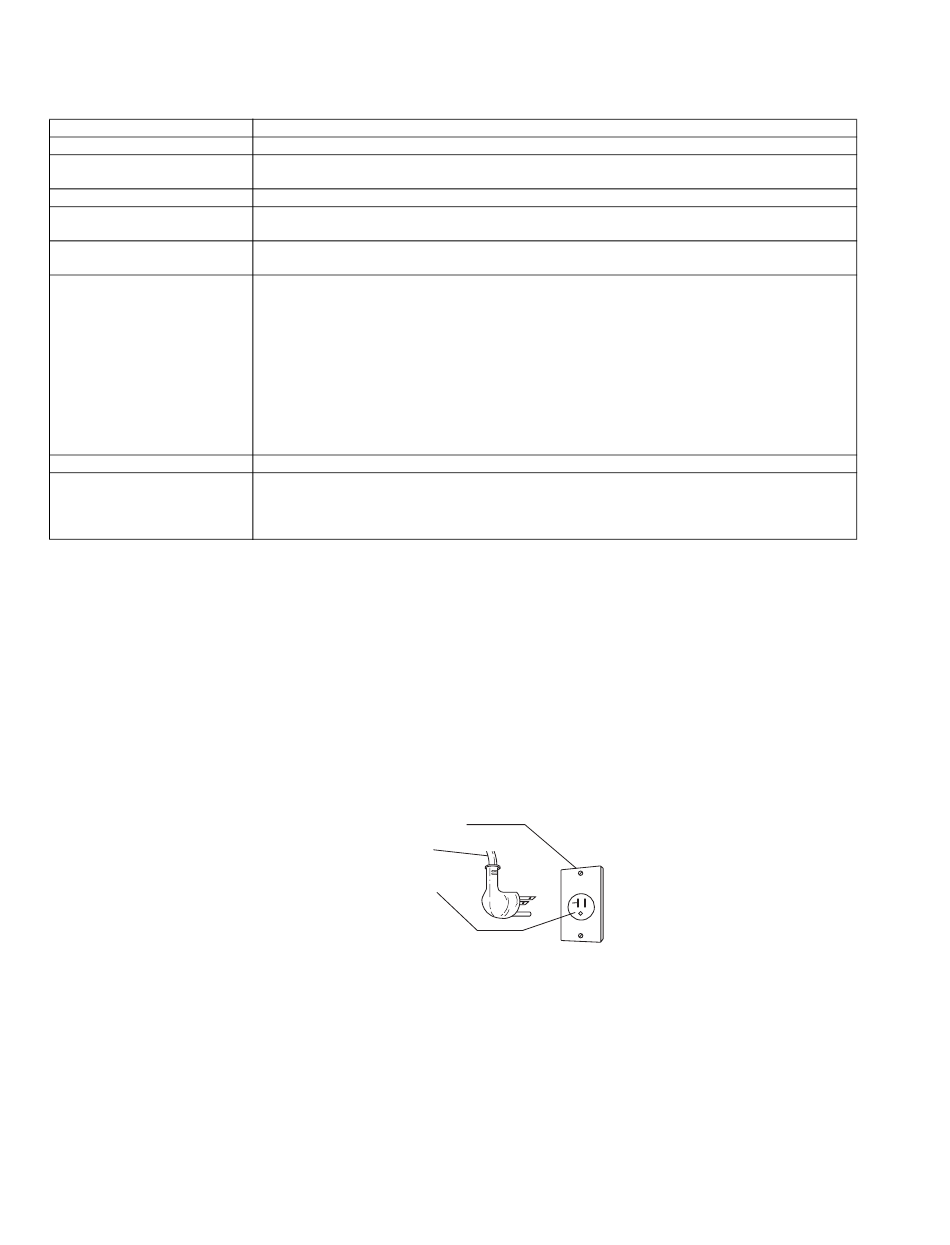

[1] SPECIFICATIONS
ITEM
Power Requirements
Power Consumption
Power Output
Outside Dimensions
Cooking Cavity Dimensions
Control Complement
Weight
Safety Standard
[2] GROUNDING INSTRUCTIONS
1. GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances.
WARNING: Improper use of the grounding plug can result in a risk of electric shock. The electrical requirements are 120 Volt, 60 Hz, AC only, and 20
Amp or more fused electrical supply. It is recommended that a separate circuit serving only this appliance be provided. When installing
this appliance, observe all applicable codes and ordinances. If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension
cord should be AC120 Volt 20 Amp. Consult a qualified electrician or serviceman if the grounding instructions are not completely under-
stood or if doubt exists as to whether the appliance is properly grounded.
Plug Configuration
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven is on a different elec-
trical circuit, relocate the radio or TV as far away from the oven as feasible or check position and signal of receiving antenna.
Single phase, 60Hz, A.C. only
1.9kW
120V-16A
1200W Operating frequency 2450 MHz
17-1/2" (W) x 20-1/2" (D) x 13-5/8" (H)
445mm (W) x 520mm (D) x 346mm (H) (including feet)
14" (W) x 13" (D) x 7-1/8" (H)
355mm (W) x 326mm (D) x 177mm (H)
Touch Control System
Digital Display
Ten number Pads
STOP/CLEAR pad
CUSTOM HELP pad
START pad
SELECT POWER pad (Power level: 0 to 100%)
SELECT TIME pad
DOUBLE/ TRIPLE QUANTITY pad
EXPRESS DEFROST pad
SET MEMORY pad
Approx. 65 lbs/ 29.5 kg
UL Listed.
FCC Authorized
DHHS Rules, CFR, Title 21, Chapter 1, Subchapter J
NSF Certified, CSA
Receptacle Box Cover
3-Pronged plug
(NEMA 5-20P)
3-Pronged Receptacle
(NEMA 5-20R)
120V 20A
Service Manual
DESCRIPTION
4 – 1
RCD1200M
