ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver
wrench , and a rubber mallet

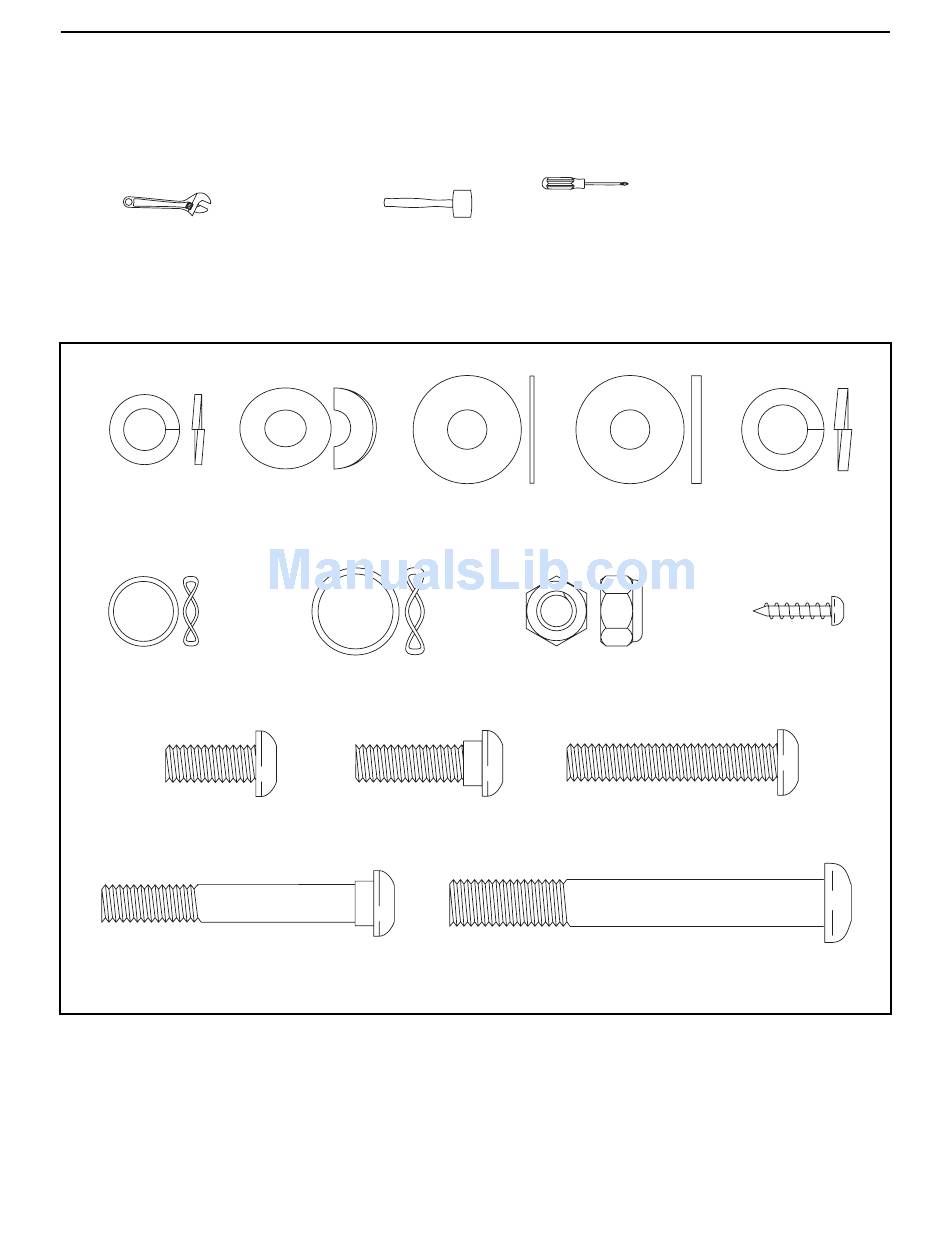

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.
M8 Split
Washer (97)–10
Wave Washer
(80)–2
M8 x 19mm Patch
Screw (86)–4
M8 x 58mm Shoulder
Bolt (88)–2
M8 Curved M8 x 23mm x
Washer (29)–4 1mm Washer
Large Wave
Washer (89)–2
M8 x 23mm Patch
Shoulder Screw (103)–4
.
M8 x 23mm x
2mm Washer
(102)–4 (31)–8
M8 Nylon
Locknut (84)–6
M8 x 45mm Button
M10 x 80mm Button Bolt (93)–2
5
, an adjustable
M10 Split
Washer (99)–2
M4 x 16mm
Round Head
Screw (92)–14
Screw (90)–10
