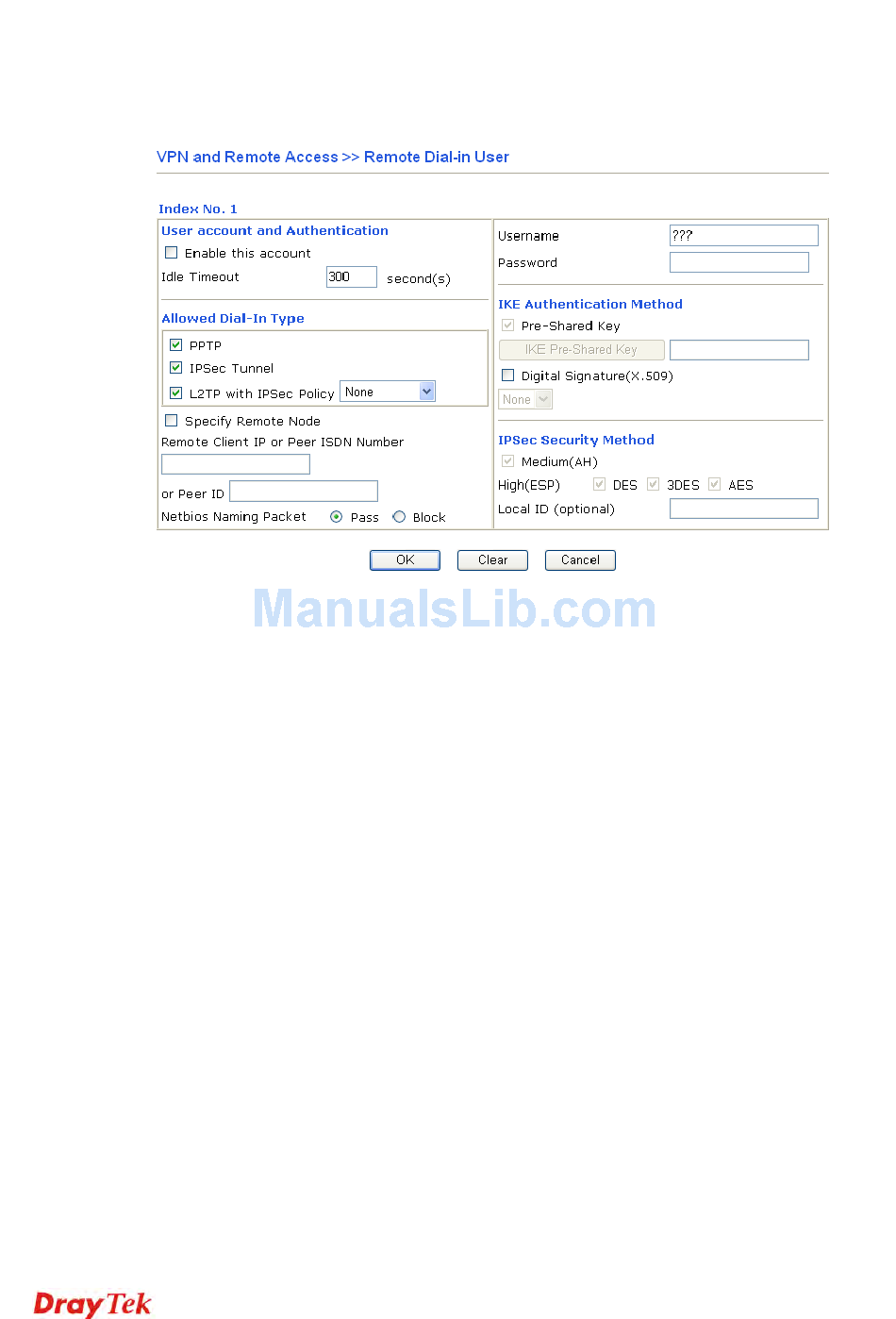

Click each index to edit one remote user profile. Each Dial-In Type requires you to fill the
different corresponding fields on the right. If the fields gray out, it means you may leave it
untouched. The following explanation will guide you to fill all the necessary fields.
Enable this account
PPTP
IPSec Tunnel
L2TP
Specify Remote Node
Netbios Naming Packet
Check the box to enable this function.
Idle Timeout- If the dial-in user is idle over the limitation of
the timer, the router will drop this connection. By default, the
Idle Timeout is set to 300 seconds.
Allow the remote dial-in user to make a PPTP VPN connection
through the Internet. You should set the User Name and
Password of remote dial-in user below
Allow the remote dial-in user to make an IPSec VPN
connection through Internet.
Allow the remote dial-in user to make a L2TP VPN connection
through the Internet. You can select to use L2TP alone or with
IPSec. Select from below:
None - Do not apply the IPSec policy. Accordingly, the VPN
connection employed the L2TP without IPSec policy can be
viewed as one pure L2TP connection.
Nice to Have - Apply the IPSec policy first, if it is applicable
during negotiation. Otherwise, the dial-in VPN connection
becomes one pure L2TP connection.
Must -Specify the IPSec policy to be definitely applied on the
L2TP connection.
Check the checkbox-You can specify the IP address of the
remote dial-in user, ISDN number or peer ID (used in IKE
aggressive mode).
Uncheck the checkbox-This means the connection type you
select above will apply the authentication methods and security
methods in the general settings.
Pass – Click it to have an inquiry for data transmission between
the hosts located on both sides of VPN Tunnel while connecting.
