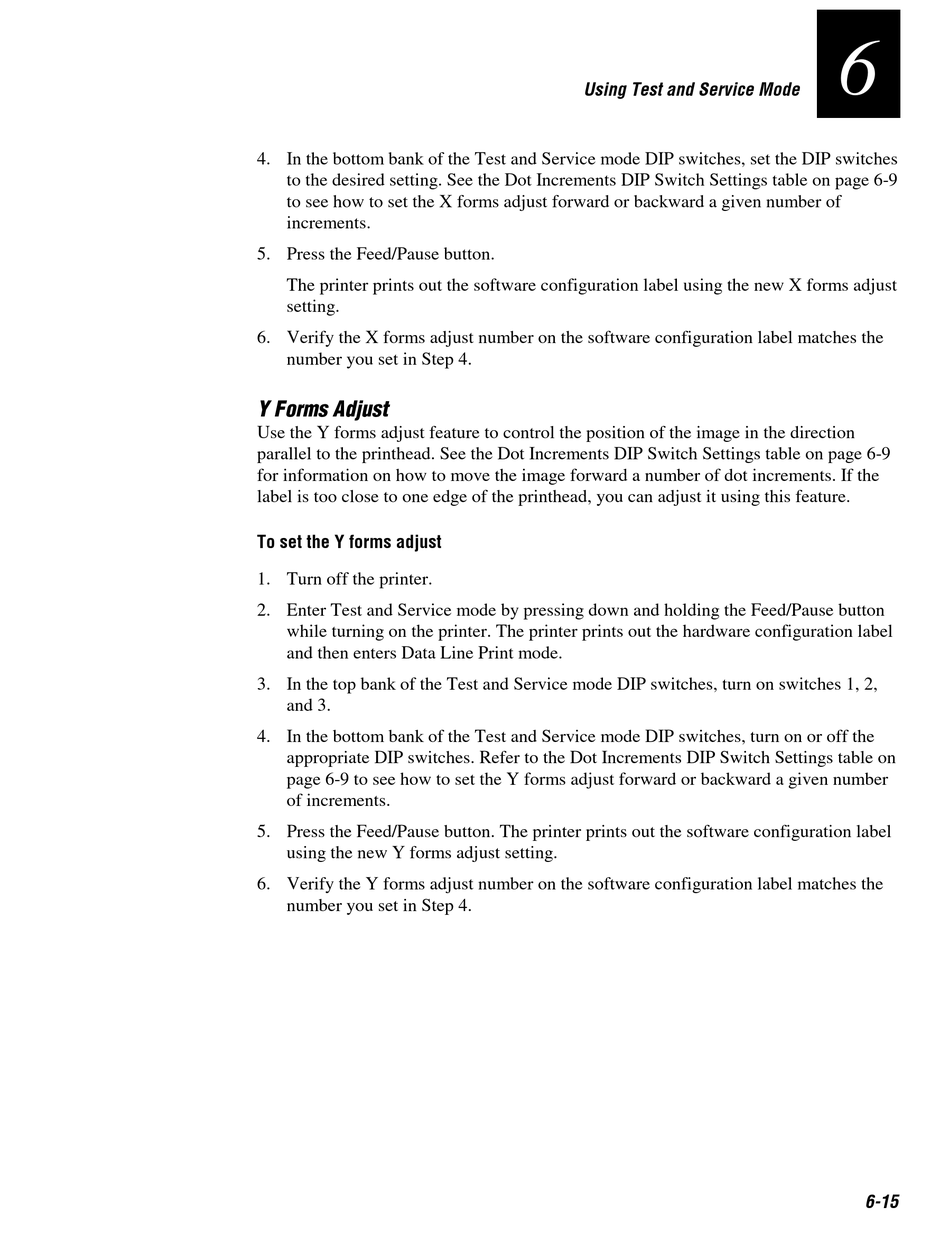

4. In the bottom bank of the Test and Service mode DIP switches, set the DIP switches
to the desired setting. See the Dot Increments DIP Switch Settings table on page 6-9
to see how to set the X forms adjust forward or backward a given number of
increments.
5. Press the Feed/Pause button.
The printer prints out the software configuration label using the new X forms adjust
setting.
6. Verify the X forms adjust number on the software configuration label matches the
number you set in Step 4.

Y Forms Adjust

Use the Y forms adjust feature to control the position of the image in the direction
parallel to the printhead. See the Dot Increments DIP Switch Settings table on page 6-9
for information on how to move the image forward a number of dot increments. If the
label is too close to one edge of the printhead, you can adjust it using this feature.
To set the Y forms adjust
1. Turn off the printer.
2. Enter Test and Service mode by pressing down and holding the Feed/Pause button
while turning on the printer. The printer prints out the hardware configuration label
and then enters Data Line Print mode.
3. In the top bank of the Test and Service mode DIP switches, turn on switches 1, 2,
and 3.
4. In the bottom bank of the Test and Service mode DIP switches, turn on or off the
appropriate DIP switches. Refer to the Dot Increments DIP Switch Settings table on
page 6-9 to see how to set the Y forms adjust forward or backward a given number
of increments.
5. Press the Feed/Pause button. The printer prints out the software configuration label
using the new Y forms adjust setting.
6. Verify the Y forms adjust number on the software configuration label matches the
number you set in Step 4.
