To enable 5 mil Advanced mode, turn off DIP switches 4 and 5.
•
To enable 2.5 mil Advanced mode, turn off DIP switch 4 and turn on DIP
switch 5.
7. Press the Feed/Pause button.
The printer prints out the software configuration label. Verify that the label states
the correct mode.
8. Turn off the printer.
9. Reset the DIP switches to the original settings and then turn on the printer.
10. Download the 86XX formats, fonts, and graphics from the host to the 4420 or 4440
printer.

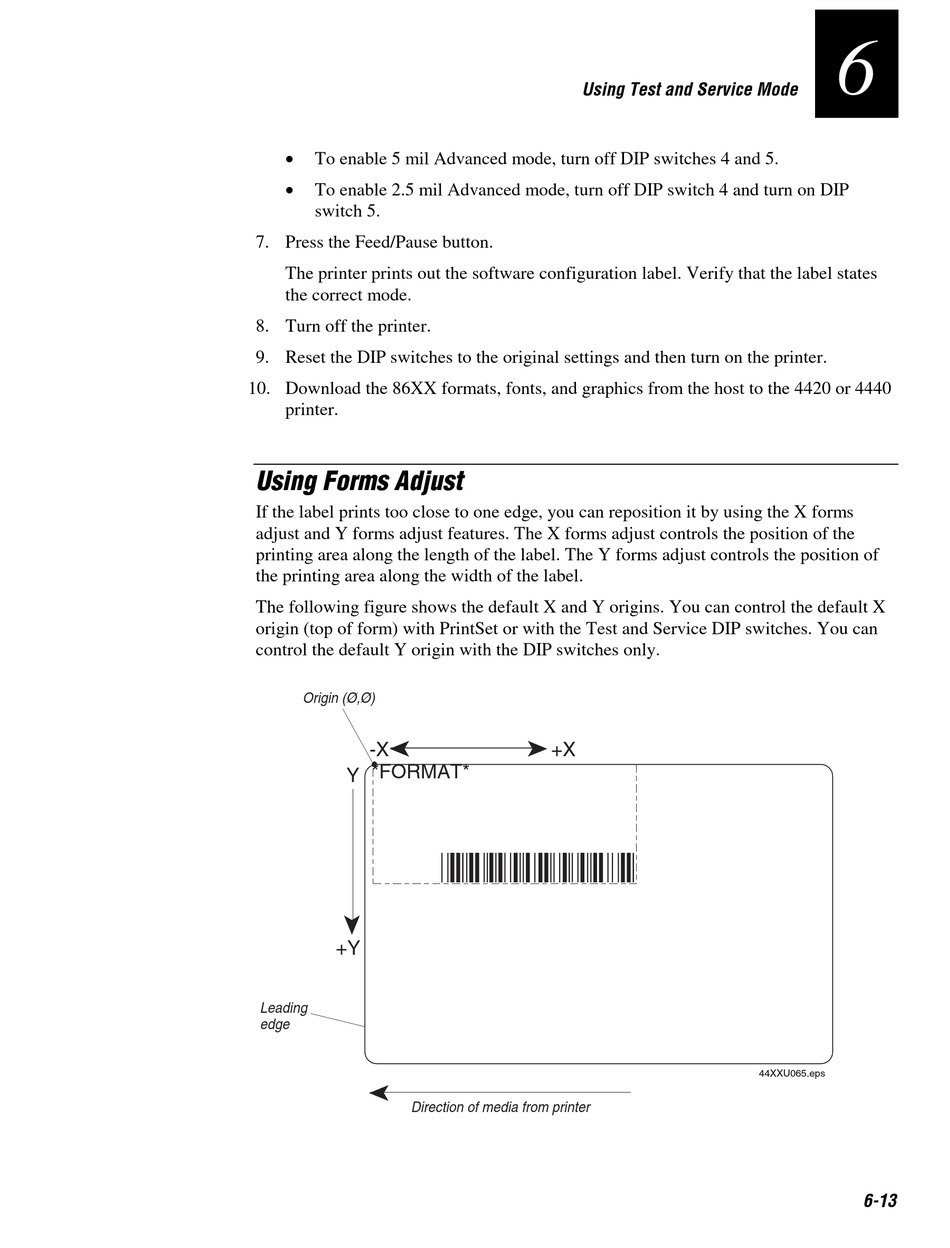

Using Forms Adjust

If the label prints too close to one edge, you can reposition it by using the X forms
adjust and Y forms adjust features. The X forms adjust controls the position of the
printing area along the length of the label. The Y forms adjust controls the position of
the printing area along the width of the label.
The following figure shows the default X and Y origins. You can control the default X
origin (top of form) with PrintSet or with the Test and Service DIP switches. You can
control the default Y origin with the DIP switches only.
Origin (Ø,Ø)
➤
-X
*FORMAT*
Y
+Y
Leading
edge
➤
Direction of media from printer
C d 39
Using Test and Service Mode
➤
+X
*FORMAT*
