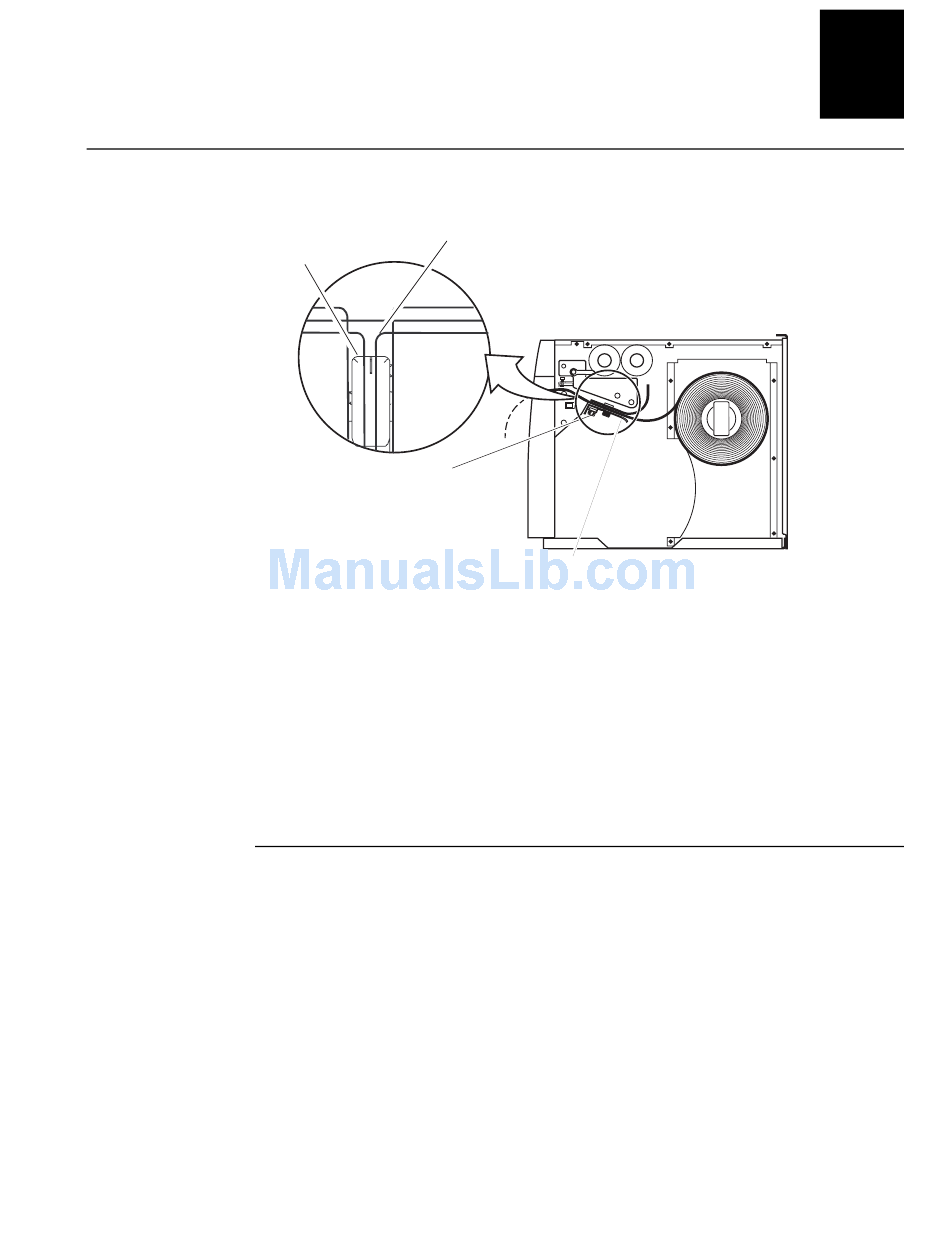

Adjusting the Label Gap Sensor
Label
gap
sensor
4. Turn the label gap sensor knob clockwise to secure it in the new position.
5. Try printing a label to see if the printer is detecting the start of the label
6. If the printer is still not detecting the top of form, slide the label gap sensor a little
7. Replace the media cover.

Adjusting the Label Mark Sensor

The label mark sensor detects the black mark on the back of continuous media stock.
The printer uses the output to determine the start of print. The label mark sensor is
behind the platen roller and near the inboard edge of the printer. You can position the
label mark sensor no more than 6.35 cm (2.5 in) from the inboard edge of the printer.
To adjust the label mark sensor
1. Remove the media cover and locate the label mark sensor.
2. Use your index finger to slide the label mark sensor to the correct position for the
39
Helvetica Condensed
Label
radius
Label gap
sensor knob
(top of form).
further toward the outer edge of the lower media guide.
media. You can position the label mark sensor anywhere from the inboard edge of
the printer to the center of the paper path.
Optimizing Printer Performance
Lower
media
guide
5
44XXU050.eps
5-11
