EasyCoder 4420/4440 Bar Code Label Printer User's Manual
The print darkness adjust in PrintSet is similar to the dark adjust available on a copier.
An increase in print darkness increases the energy to the printhead and results in darker
print. A decrease in print darkness decreases the energy to the printhead and results in
lighter print.

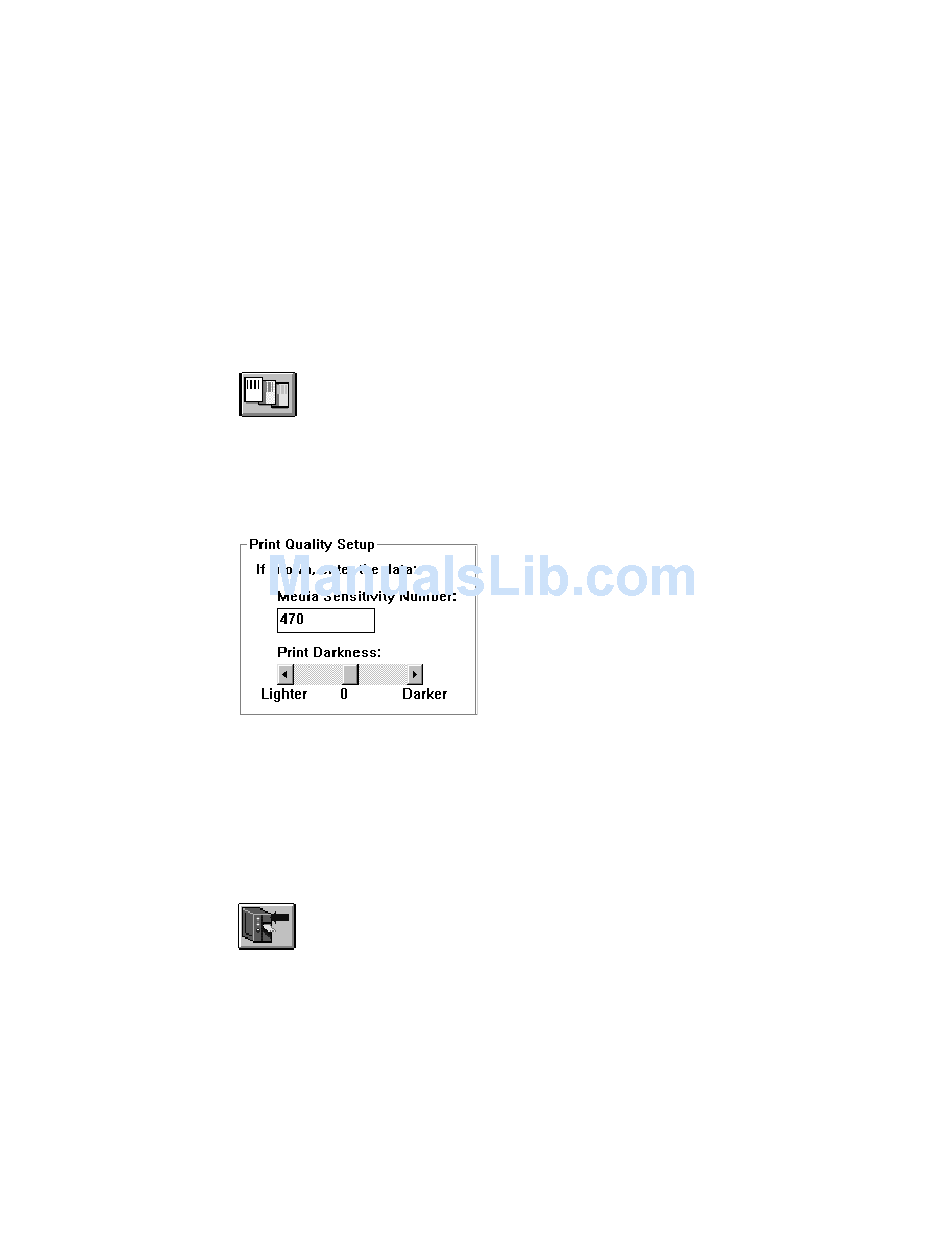

To adjust the print darkness with PrintSet
1. Start PrintSet on your PC.
2. Click the Paper Type button:
3. In the Print Quality Setup dialog box, adjust the Print Darkness slider bar until the
4. Click OK.
5. Download your change to the printer by pressing the button to send command
5-6
setting that you want appears underneath it.
You can adjust the print darkness from +10 to -10.
updates to the attached printer.
