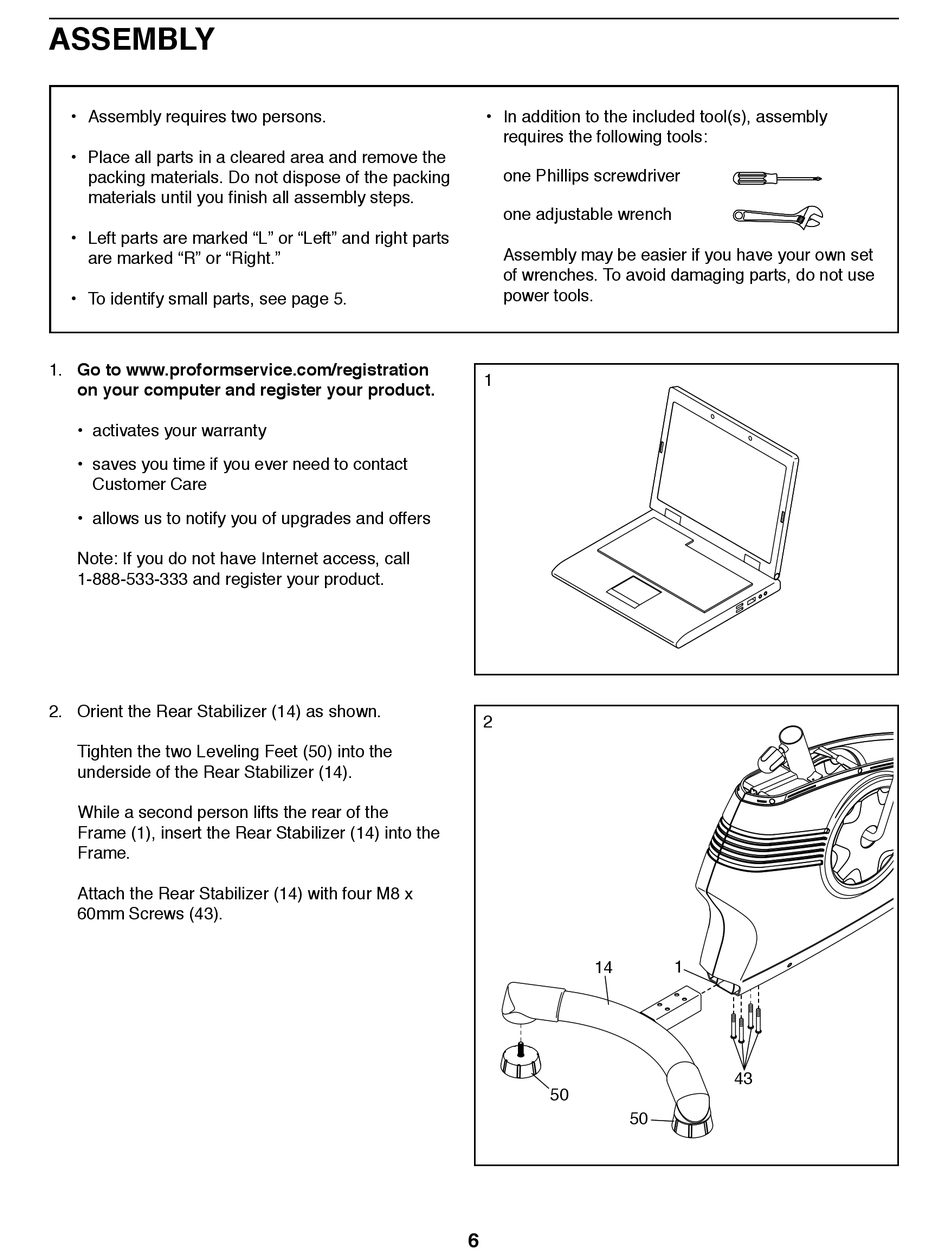

ASSEMBLY

•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you  nish all assembly steps.
•• Left parts are marked “"L”" or “"Left”" and right parts
are marked “"R”" or “"Right.”"
•• To identify small parts, see page 5.
1. Go to www.proformservice.com/registration
on your computer and register your product.
•• activates your warranty
•• saves you time if you ever need to contact
Customer Care
•• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
1-888-533-333 and register your product.
2. Orient the Rear Stabilizer (14) as shown.
Tighten the two Leveling Feet (50) into the
underside of the Rear Stabilizer (14).
While a second person lifts the rear of the
Frame (1), insert the Rear Stabilizer (14) into the
Frame.
Attach the Rear Stabilizer (14) with four M8 x
60mm Screws (43).
•• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
2
14
50
50
6
1
43
