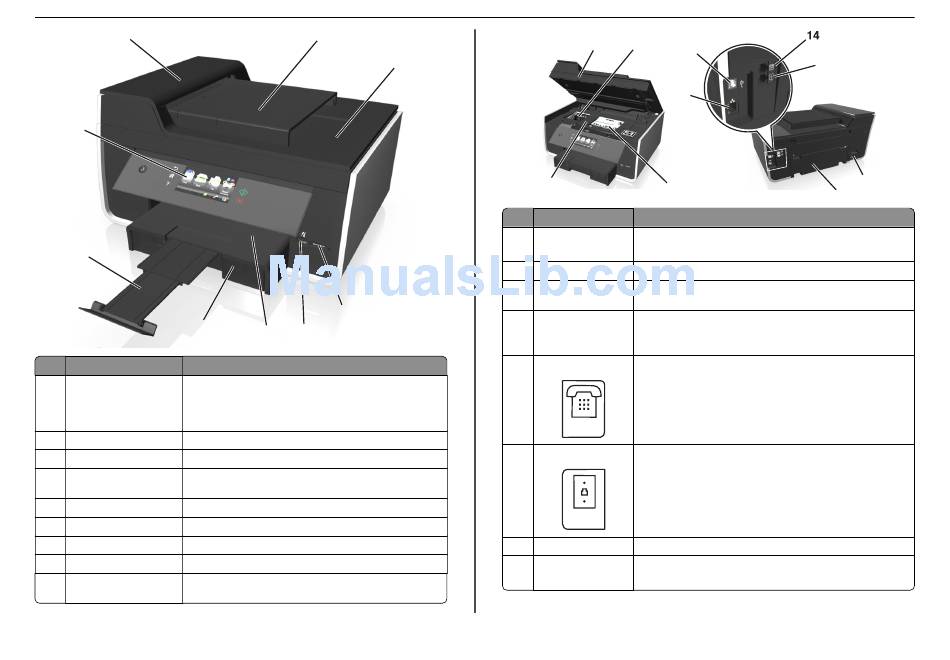

About your printer
9
8
7
6
Use the
To
1
Automatic Document Feeder
Load original documents into the ADF for scanning, copying, or faxing.
(ADF) tray
Note: Do not load postcards, photos, small items, or thin media
(such as magazine clippings) into the ADF. Place these items on the
scanner glass.
2
ADF output tray
Hold documents as they exit from the ADF.
3
Memory card slot
Insert a memory card.
4
PictBridge and USB port
Connect a PictBridge-enabled digital camera or a flash drive to the
printer.
5
Paper exit tray
Hold paper as it exits.
6
Paper tray (Tray 1)
Load paper.
7
Paper stop
Catch the paper as it exits.
8
Printer control panel
Operate the printer.
9
ADF
Scan, copy, or fax multiple‑page letter‑, legal‑, and A4‑size
documents.
1
2
SD /M
S- Du o/
M M C
3
4
5
10
11
13
12
19
18
Use the
To
10
Scanner unit
•
Access the ink cartridges and printhead.
•
Remove paper jams.
11
Ink cartridge access area Install, replace, or remove ink cartridges.
12
Ethernet port
Connect your printer to a computer, a local network, an external DSL, or
a cable modem.
13
USB port
Connect the printer to a computer using a USB cable.
Warning—Potential Damage: Do not touch the USB port except when
plugging in or removing a USB cable or installation cable.
14
EXT port
Connect additional devices (telephone or answering machine) to the
printer and the telephone line. Use this port if you do not have a dedicated
fax line for the printer, and if this connection method is supported in your
country or region.
Note: Remove the plug to access the port.
15
LINE port
Connect the printer to an active telephone line (through a standard wall
jack, DSL filter, or VoIP adapter) to send and receive faxes.
16
Power supply with port
Connect the printer to a power source.
17
Duplex unit
•
Print on both sides of a sheet of paper.
•
Remove paper jams.
12
15
16
17
