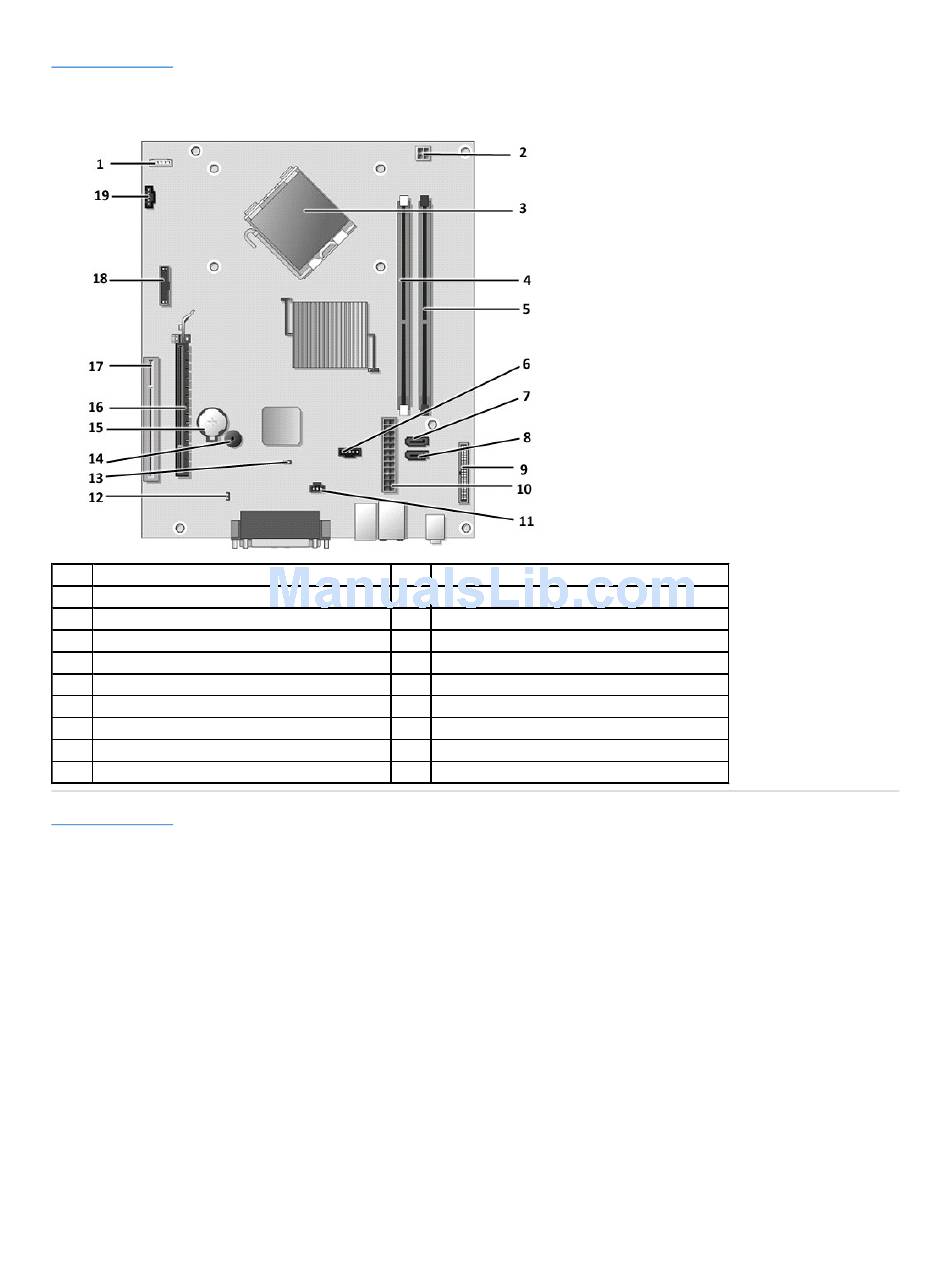

System Board Layout

Dell™ OptiPlex™ 380 Service Manual—Small Form Factor
1 speaker connector (INT_SPKR)
3 processor connector (CPU)
5 memory module connector (DIMM_2)
7 SATA drive connector (SATA 0)
9 front panel connector (FRONTPANEL)
11 chassis intrusion switch connector (INTRUDER)
13 reset jumper (RTCRST)
15 coin-cell battery socket (BATTERY)
17 PCI connectors (SLOT2 and SLOT3)
19 processor fan connector (FAN_CPU)
Back to Contents Page
2 processor power connector (12 V POWER)
4 memory module connector (DIMM_1)
6 hard-drive fan connector (FAN_HDD)
8 SATA drive connector (SATA1)
10 power connector (POWER)
12 password jumper (PSWD)
14 internal speaker (SPKR)
16 PCI Express x16 connector (SLOT1)
18 serial/PS/2 connector (PS2/SER2)
