Lenovo Flex 14/Flex 14D/Flex 15/Flex 15D Hardware Maintenance
Manual

1020 Hard disk drive

For access, remove this FRU:
• "1010 Battery pack" on page 34

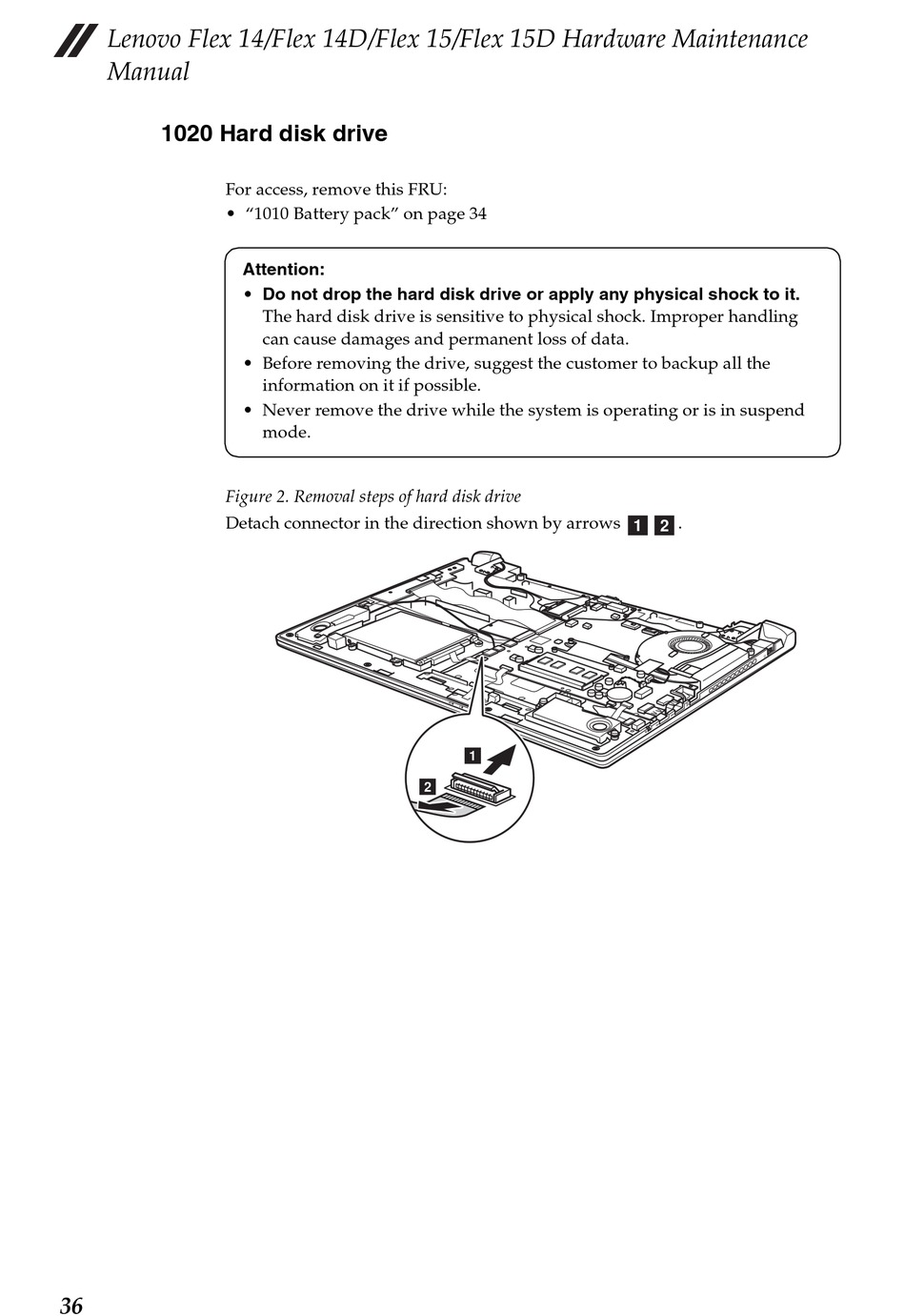

Figure 2. Removal steps of hard disk drive
Detach connector in the direction shown by arrows
36
Attention:
• Do not drop the hard disk drive or apply any physical shock to it.
The hard disk drive is sensitive to physical shock. Improper handling
can cause damages and permanent loss of data.
• Before removing the drive, suggest the customer to backup all the
information on it if possible.
• Never remove the drive while the system is operating or is in suspend
mode.
a
b
a b
.
