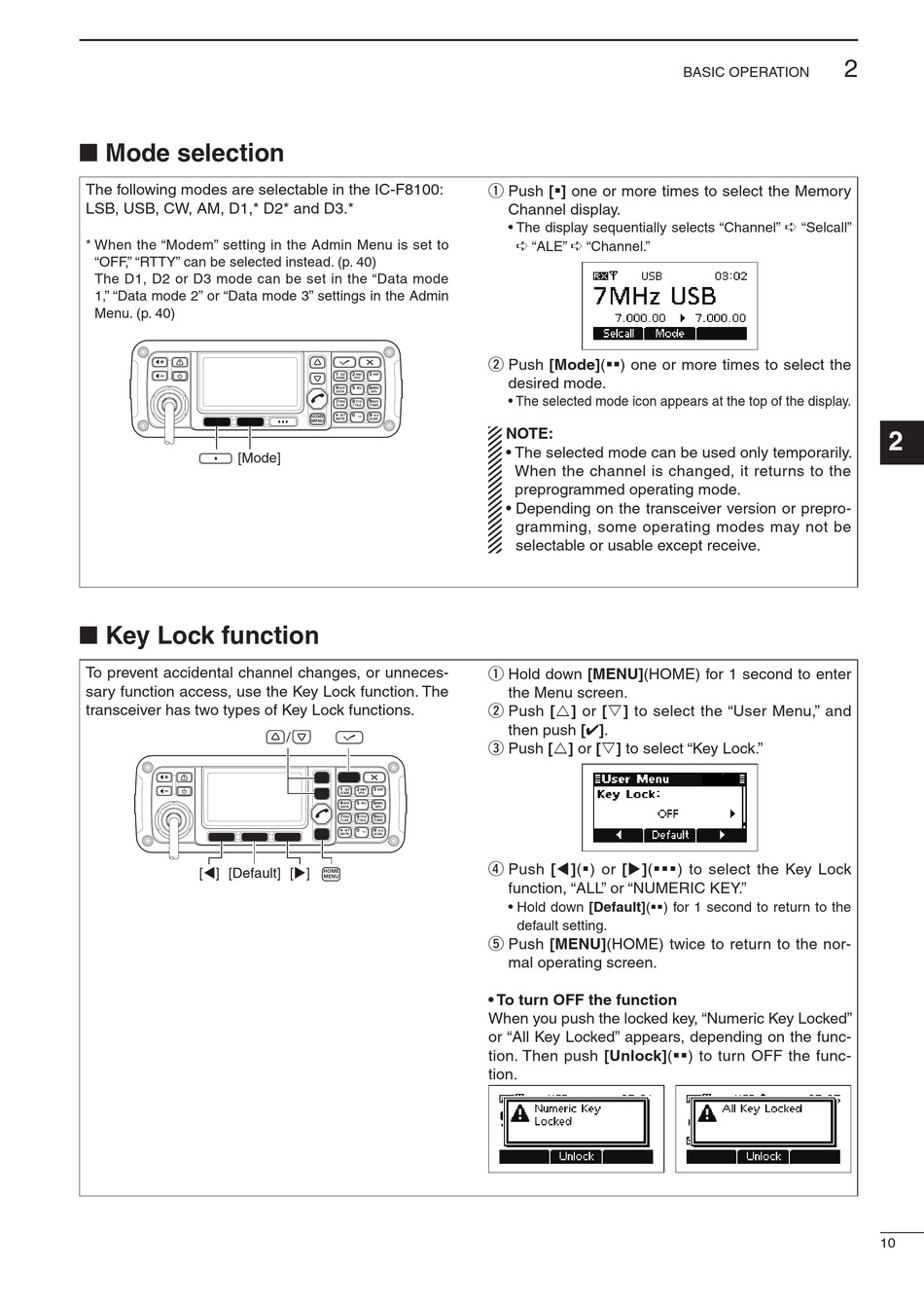

■ Mode selection

The following modes are selectable in the IC-F8100:
LSB, USB, CW, AM, D1,* D2* and D3.*
* When the "Modem" setting in the Admin Menu is set to
"OFF," "RTTY" can be selected instead. (p. 40)
The D1, D2 or D3 mode can be set in the "Data mode
1," "Data mode 2" or "Data mode 3" settings in the Admin
Menu. (p. 40)
[Mode]

■ Key Lock function

To prevent accidental channel changes, or unneces-
sary function access, use the Key Lock function. The
transceiver has two types of Key Lock functions.
[�] [Default] [�]
/
q Push [§] one or more times to select the Memory
Channel display.
• The display sequentially selects "Channel" ➪ "Selcall"
➪ "ALE" ➪ "Channel."
w Push [Mode](§§) one or more times to select the
desired mode.
• The selected mode icon appears at the top of the display.
NOTE:
• The selected mode can be used only temporarily.
When the channel is changed, it returns to the
preprogrammed operating mode.
• Depending on the transceiver version or prepro-
gramming, some operating modes may not be
selectable or usable except receive.
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the "User Menu," and
then push [4].
e Push [r] or [s] to select "Key Lock."
r Push [t](§) or [u](§§§) to select the Key Lock
function, "ALL" or "NUMERIC KEY."
• Hold down [Default](§§) for 1 second to return to the
default setting.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
• To turn OFF the function
When you push the locked key, "Numeric Key Locked"
or "All Key Locked" appears, depending on the func-
tion. Then push [Unlock](§§) to turn OFF the func-
tion.
