Operating mode selection

SSB (USB/LSB), SSB data (USB data/LSB data),
CW, CW reverse (CW-R), RTTY, RTTY reverse
(RTTY-R), PSK, PSK reverse (PSK-R), AM, AM data,
FM and FM data modes are available in the IC-7600.
Push the desired mode switch momentarily to select
a mode of operation.

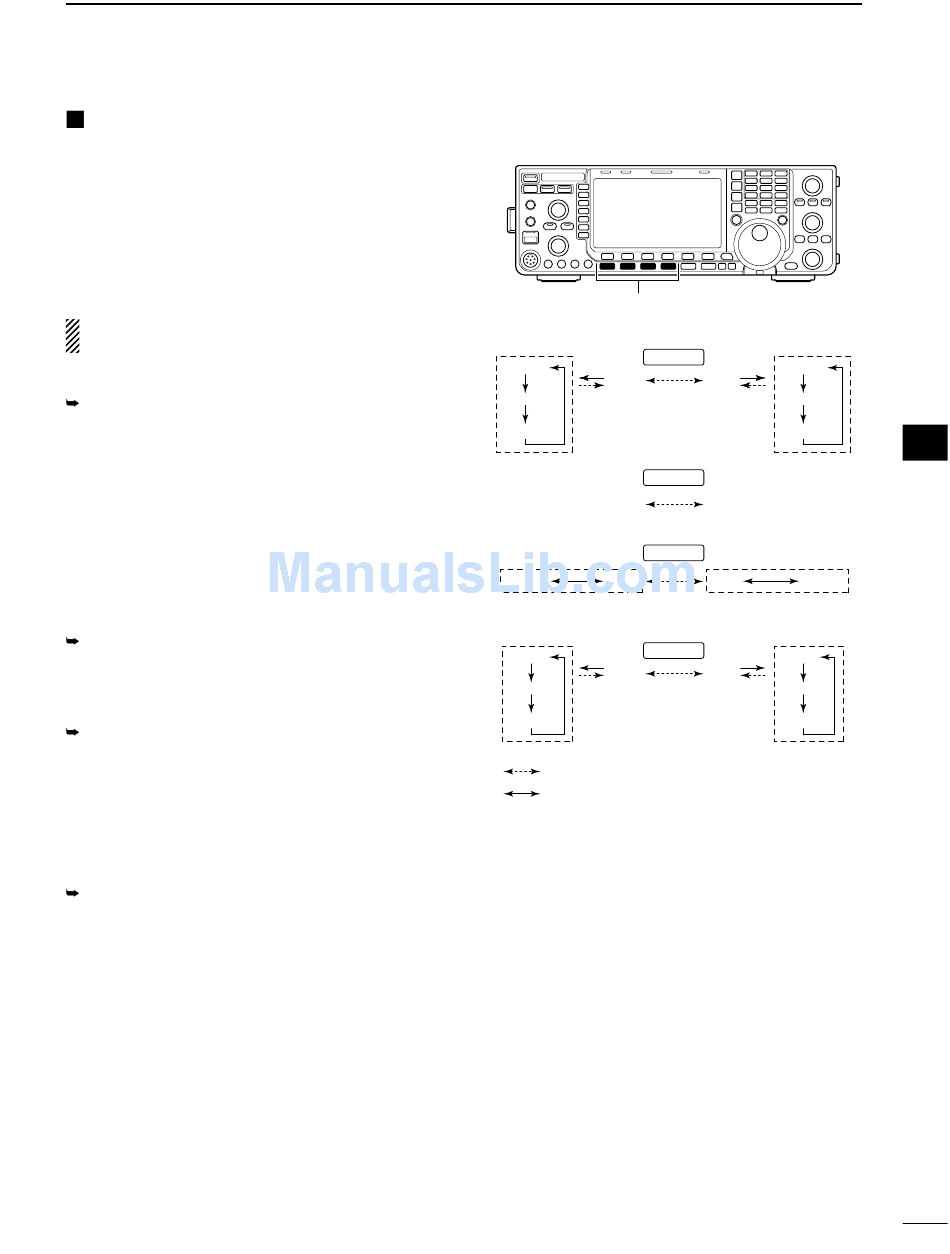

See the diagram as at right for the order of selection.
Microphone signals are muted when data mode is
selected.
• Selecting SSB mode
Push [SSB] to select USB or LSB.
• USB is selected first when above 10 MHz; or LSB is
selected first when below 10 MHz operation.
• After USB or LSB is selected, push
between USB and LSB.
• After USB or LSB is selected, push and hold
1 sec. to select USB or LSB data mode, respectively.
• After USB or LSB data mode is selected, push and hold
[SSB] for 1 sec. to select data 1, 2 and 3, in sequence.
• In USB or LSB data mode, push [SSB] to return to
USB or LSB mode, respectively.
• Selecting CW mode
Push [CW] to select CW.
• After CW is selected, push [CW] to toggle between CW
and CW reverse mode.
• Selecting RTTY/PSK mode
Push [RTTY/PSK] to select RTTY or PSK.
• After RTTY or PSK is selected, push [RTTY/PSK] to
toggle between RTTY and PSK.
• After RTTY or PSK is selected, push and hold
[RTTY/PSK] for 1 sec. to toggle between RTTY and
RTTY reverse, or, PSK and PSK reverse mode,
respectively.
• Selecting AM/FM mode
Push [AM/FM] to select AM or FM.
• After AM or FM is selected, push [AM/FM] to toggle
between AM and FM.
• After AM or FM is selected, push and hold [AM/FM] for
1 sec. to select AM or FM data mode, respectively.
• After AM or FM data mode is selected, push and
hold [AM/FM] for 1 sec. to select data 1, 2 and 3, in
sequence.
• In AM or FM data mode, push [AM/FM] to return to AM
or FM mode, respectively.
USB-D1
USB-D2
USB-D3
[SSB]
to toggle
[SSB]
for
RTTY-R
AM-D1
AM-D2
AM-D3
BASIC OPERATION
Mode switches
SSB
USB LSB
CW
CW CW-R
RTTY/PSK
RTTY PSK
AM/FM
AM FM
: Push mode switch momentary.
: Push and hold mode switch for 1 sec.
3
1
LSB-D1
2
LSB-D2
LSB-D3
3
4
5
6
PSK-R
7
8
FM-D1
9
FM-D2
10
FM-D3
