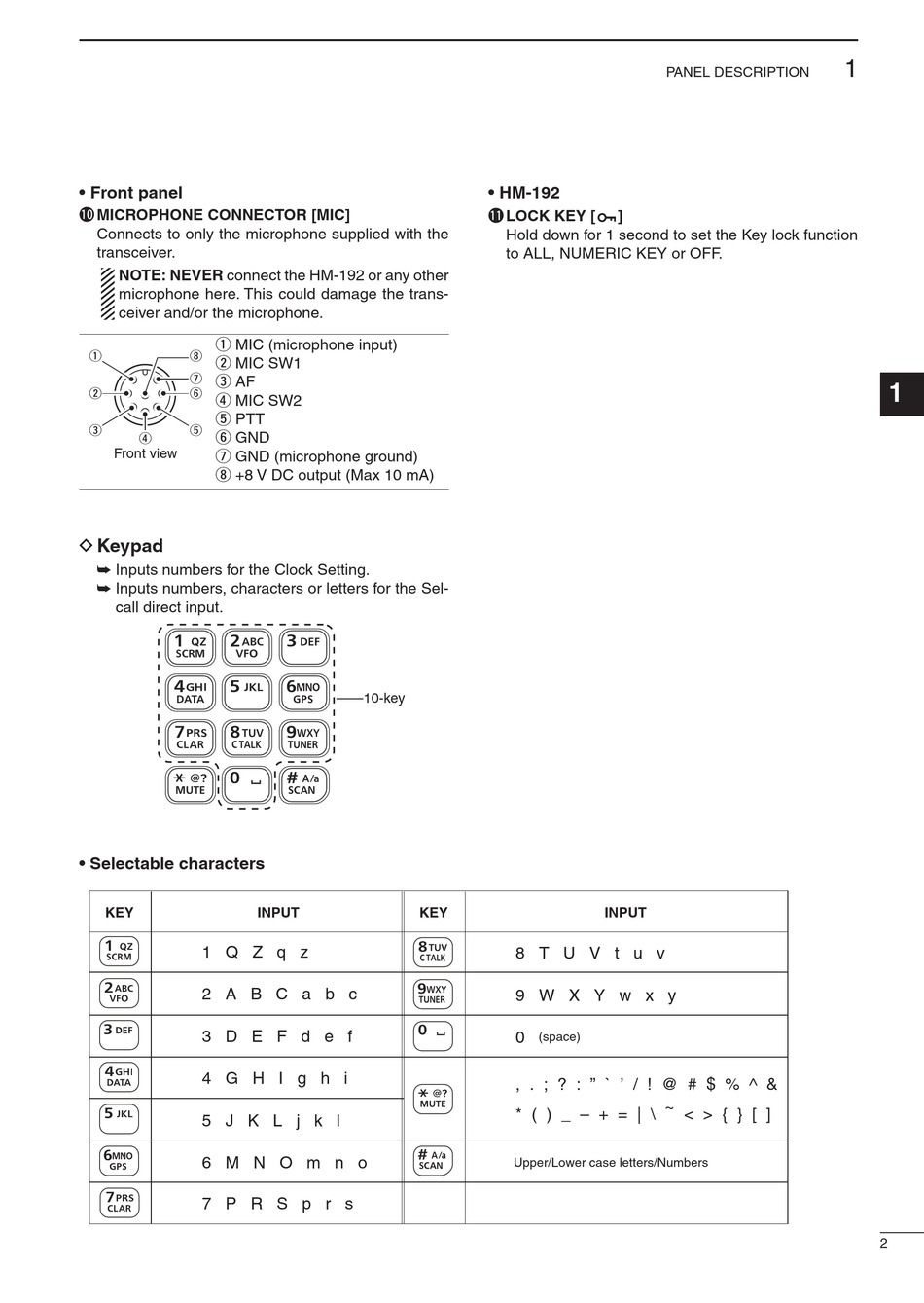

Icom IC-F8100 Instruction Manual page 7

• Front panel
!0 MICROPHONE CONNECTOR [MIC]
Connects to only the microphone supplied with the
transceiver.
NOTE: NEVER connect the HM-192 or any other
microphone here. This could damage the trans-
ceiver and/or the microphone.
q MIC (microphone input)
q i
w MIC SW1
u
e AF
w y
r MIC SW2
t PTT
e t
y GND
r
Front view
u GND (microphone ground)
i +8 V DC output (Max 10 mA)
D Keypad
➥ Inputs numbers for the Clock Setting.
➥ Inputs numbers, characters or letters for the Sel-
call direct input.
• Selectable characters
KEY
1 Q Z q z
2 A B C a b c
3 D E F d e f
4 G H I g h i
5 J K L j k l
6 M N O m n o
7 P R S p r s
10-key
INPUT KEY
• HM-192
!1 LOCK KEY [ ]
Hold down for 1 second to set the Key lock function
to ALL, NUMERIC KEY or OFF.
INPUT
8 T U V t u v
9 W X Y w x y
0
(space)
, . ; ? : " ` ' / ! @ # $ % ^ &
* ( ) _ – + = | \ ~ < > { } [ ]
Upper/Lower case letters/Numbers
