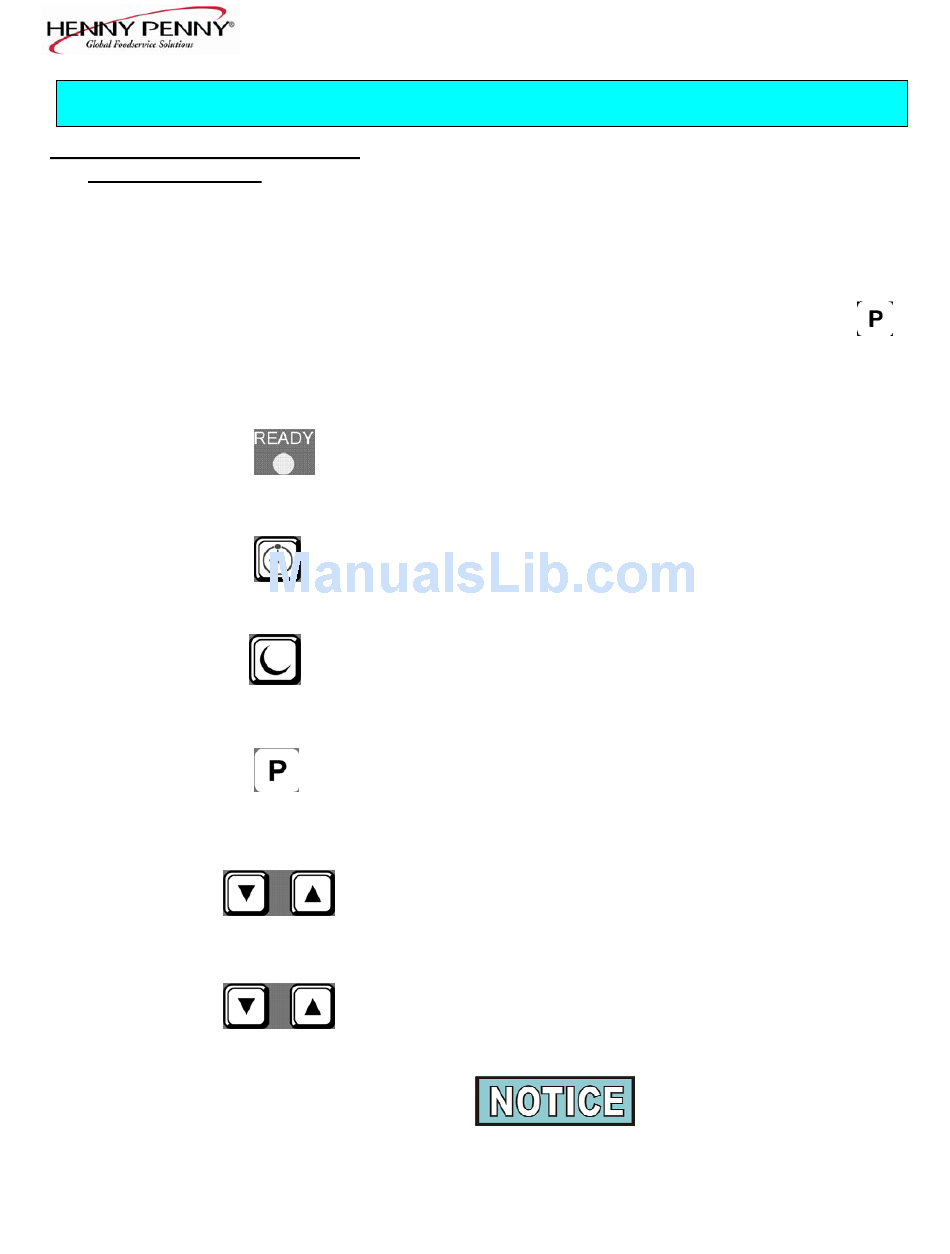

3-1. OPERATING COMPONENTS
C1000 CONTROLS
Fig.
Item
Description
No.
No.
3-1
1
Digital Display
3-1
2
3-1
3
3-1
4
3-1
5
3-1
6 & 7
3-1
8 & 9
408
SECTION 3. OPERATION
Reference Figure 3-1.
Shows the shortening temperature, the timer countdown in
the Cook Cycle, and the selections in the Program Mode; the
temperature of the shortening can be shown by pressing
once, or twice to view set-point temperature;
if shortening temperature exceeds 425°F (218°C), the display
reads "E-5, FRYER TOO HOT"
This LED lights when the shortening temperature is within 5°
of the setpoint temperature, signaling the operator that the
shortening temperature is now at the proper temperature for
dropping product into the frypot
The timer buttons are used to start and stop Cook Cycles
The idle buttons are used to start an Idle Mode which reduces
the temperature of the shortening during non-use periods;
press and hold to exit the Idle Mode
The program button is used to access the Program Modes;
also, once in the Program Mode, it is used to advance to the
next parameter
Used to adjust the value of the currently displayed setting
in the Program Mode and to change set-point temperature for
the left frypot, or basket
Used to adjust the value of the currently displayed setting
in the Program Mode and to change set-point temperature for
the right frypot, or basket
Proceed onto Section 3-3, Filling or Adding Shortening
Model OFE/OFG/OEA/OGA-341, 342
Function
3-1
