Impex MB-2000 Owner's Manual

Monkey bar
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MB-2000
Retain This
Manual for
Reference
10-10-07
OWNER'S
MANUAL
MONKEY BAR
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MB-2000
®
IMPEX
INC.

Advertisement

Table of Contents
loading

Related Manuals for Impex MB-2000

Summary of Contents for Impex MB-2000

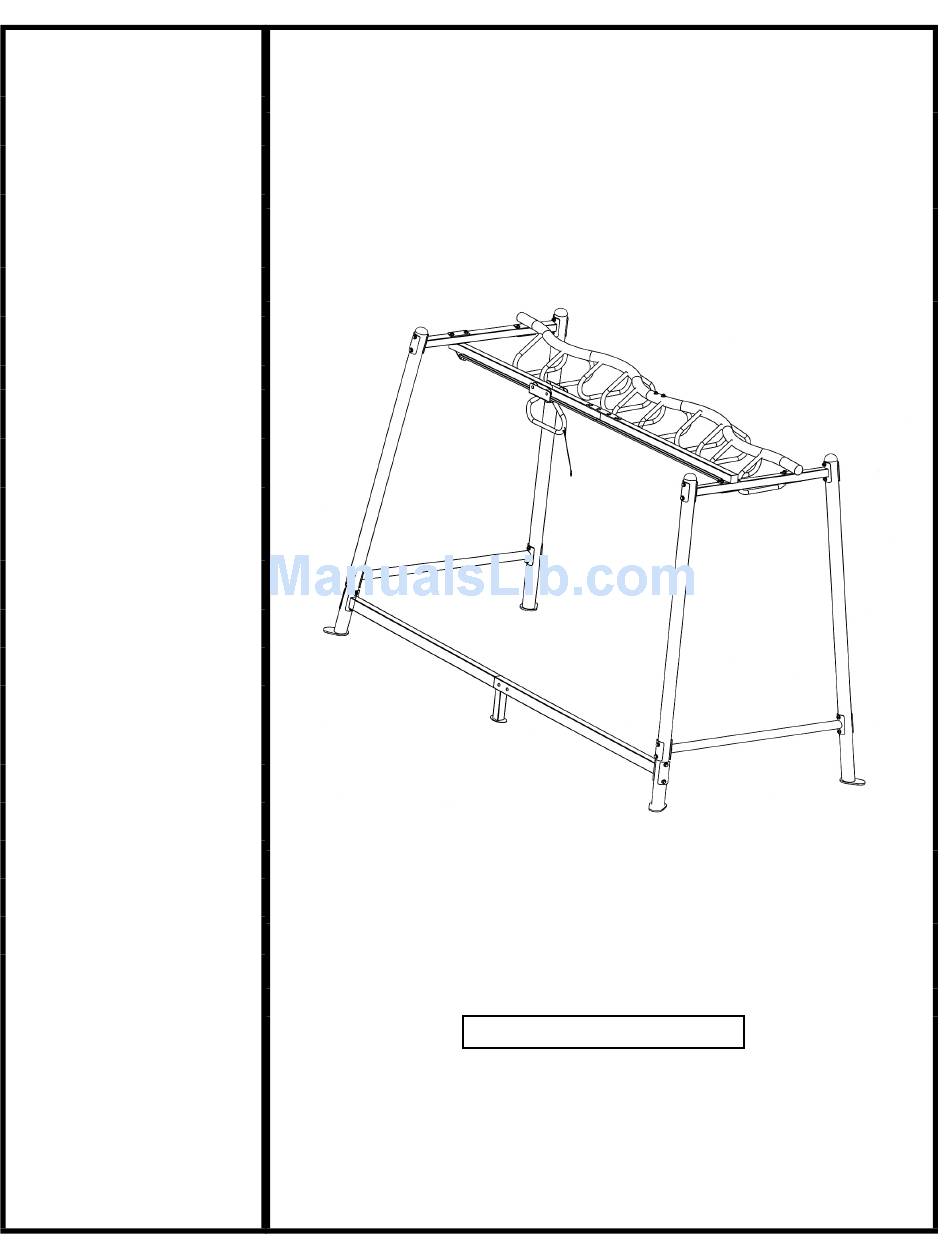

  • Page 1 NOTE: Please read all instructions carefully before using this MONKEY BAR product MB-2000 Table of Contents Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model MB-2000 Retain This Manual for Reference 10-10-07 ® IMPEX INC. OWNER'S 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...

  • Page 2: Table Of Contents

    ORDERING PARTS..................….. BEFORE YOU BEGIN ® Thank you for selecting the MONKEY BAR MB-2000 by IMPEX . For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Warning Label Placement

    WARNING LABEL PLACEMENT The warning label and caution label have been placed on the unit in location shown. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacement. Apply the labels in location shown.

  • Page 4: Important Safety Notice

    IMPORTANT SAFETY NOTICE This play ground equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of play ground equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, observing the following safety precautions and warnings to reduce the likelihood of serious or fatal injury.
  • Page 5 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment-related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.

  • Page 6: Hardware Identifier

    HARDWARE IDENTIFIER...

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and one Allen Wrench. NOTE: It is strongly recommended two or more people assembling this equipment to avoid possible injury. STEP 1 (See Diagram 1) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Connect the Upright Post-1 (#1) and Upright Post-3 (#3) with a Lower Cross Brace (#5) in the mid- span.
  • Page 8 Step 2 (See Diagram 2) A.) Connect Upright Post-2 (#2) and Upright Post-4 (#4) with a Lower Cross Brace (#5) in the mid-span. Secure each end with two M12 x 4 1/8” Hex Bolts (#27), one Curved Bracket (#15), four Ø 1” Curved Washers (#35), and two M12 Aircraft Nuts (#36). B.) Connect Upright Post-2 (#2) and Upright Post-4 (#4) with an Upper Cross Brace (#6) on the top.
  • Page 9 Step 3 (See Diagram 3) A.) Insert the Left Balance Beam (#12) into the Right Balance Beam (#11). Align the holes and secure them together with four M10 x ¾” Allen Bolts (#29) and Ø ¾” Washers (#33). B.) Attach the Left Balance Beam to the Upright Post-3 (#3). Secure it with two M12 x 4 1/8” Hex Bolts (#27), one Large Curved Bracket (#16), four Ø...
  • Page 10 Step 4 (See Diagram 4) A.) Insert the Left Monkey Bar (#8) into the Right Monkey Bar (#7). B.) Align the holes and secure them together with two M12 x 3” Hex Bolts (#28), four Ø 1” Curved Washers (#35), and two M12 Aircraft Nuts (#36). DIAGRAM 4...
  • Page 11 Step 5 (See Diagram 5) A.) Slide the Sliding Carriage (#13) onto the Left Sliding Track (#9). B.) Insert the Right Sliding Track (#10) into the Left Sliding Track. Secure them together with four M10 x ¾” Allen Bolts (#29), one Large Flat Bracket (#17), and four Ø ¾” Washers (#33).
  • Page 12 Step 6 (See Diagram 6) A.) Place the Right & Left Monkey Bars (#7 & #8) onto the Upper Cross Brace (#6). B.) Secure each end with two M12 x 3” Hex Bolts (#28), one Flat Bracket (#14), four Ø 1” Washers (#34), and two M12 Aircraft Nuts (#36).

  • Page 14: Parts List

    Parts list KEY NO. DESCRIPTION Q’ty Upright Post-1 Upright Post-2 Upright Post-3 Upright Post-4 Lower Cross Brace Upper Cross Brace Right Monkey Bar Left Monkey Bar Left Sliding Track Right Sliding Track Right Balance Beam Left Balance Beam Sliding Carriage Flat Bracket Curved Bracket Large Curved Bracket...

  • Page 15: Impex Inc

    ® IMPEX INC. LIMITED WARRANTY ® IMPEX INC ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of 2 YEARS from the date of purchase. This warranty extends only to the original purchaser.
