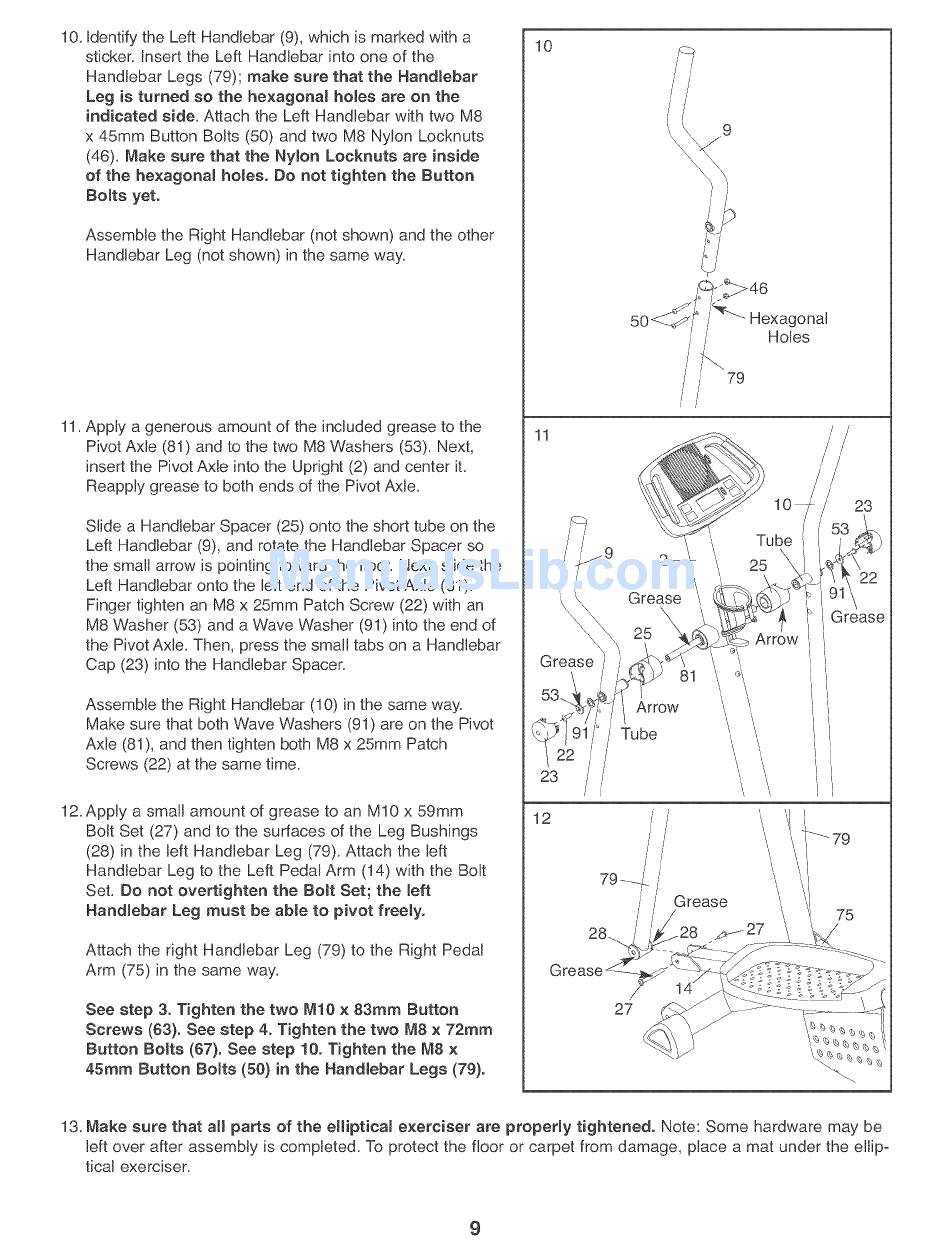

10.Identify t heLeftHandlebar (9),which is marked witha
sticker. I nsert t he LeftHandlebar intooneofthe
Handlebar Legs(79);makesurethatthe Handlebar
Leg is turned so the hexagonal
holes are on the
indicated
side. Attach the Left Handlebar with two M8
x 45mm Button Bolts (50) and two M8 Nylon Locknuts
(46). Make sure that the Nylon Locknuts
are inside
of the he×agonal holes. Do not tighten
the Button
Bolts yet.
Assemble the Right Handlebar (not shown) and the other
Handlebar Leg (not shown) in the same way.
11. Apply a generous amount of the included grease to the
Pivot Axle (81) and to the two M8 Washers (53). Next,
insert the Pivot Axle into the Upright (2) and center it.
Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (25) onto the short tube on the
Left Handlebar (9), and rotate the Handlebar Spacer so
the small arrow is pointing toward the floor. Next, slide the
Left Handlebar onto the left end of the Pivot Axle (81).
Finger tighten an M8 x 25mm Patch Screw (22) with an
M8 Washer (53) and a Wave Washer (91) into the end of
the Pivot Axle. Then, press the small tabs on a Handlebar
Cap (23) into the Handlebar Spacer.
Assemble the Right Handlebar (10) in the same way.
Make sure that both Wave Washers (91) are on the Pivot
Axle (81), and then tighten both M8 x 25mm Patch
Screws (22) at the same time.
12.Apply a small amount of grease to an M10 x 59mm
Bolt Set (27) and to the surfaces of the Leg Bushings
(28) in the left Handlebar Leg (79). Attach the left
Handlebar Leg to the Left Pedal Arm (14) with the Bolt
Set. Do not overtighten
the BoJt Set; the left
HandJebar Leg must be able to pivot freely.
Attach the right Handlebar Leg (79) to the Right Pedal
Arm (75) in the same way.
See step 3. Tighten the two M10 × 83ram Button
Screws (83). See step 4o Tighten the two M8 x 72ram
Button Bolts (87). See step 16. Tighten the M8 x
45ram Button Botts (50} in the Handlebar
Legs (79).
10
11
23
12
/
/
//
Holes
/ /
79
l
,/
27
23
75
13. Make sure that aH parts of the elliptical
exerciser
are properly
tightened.
Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the ellip°
tical exerciser.
9
