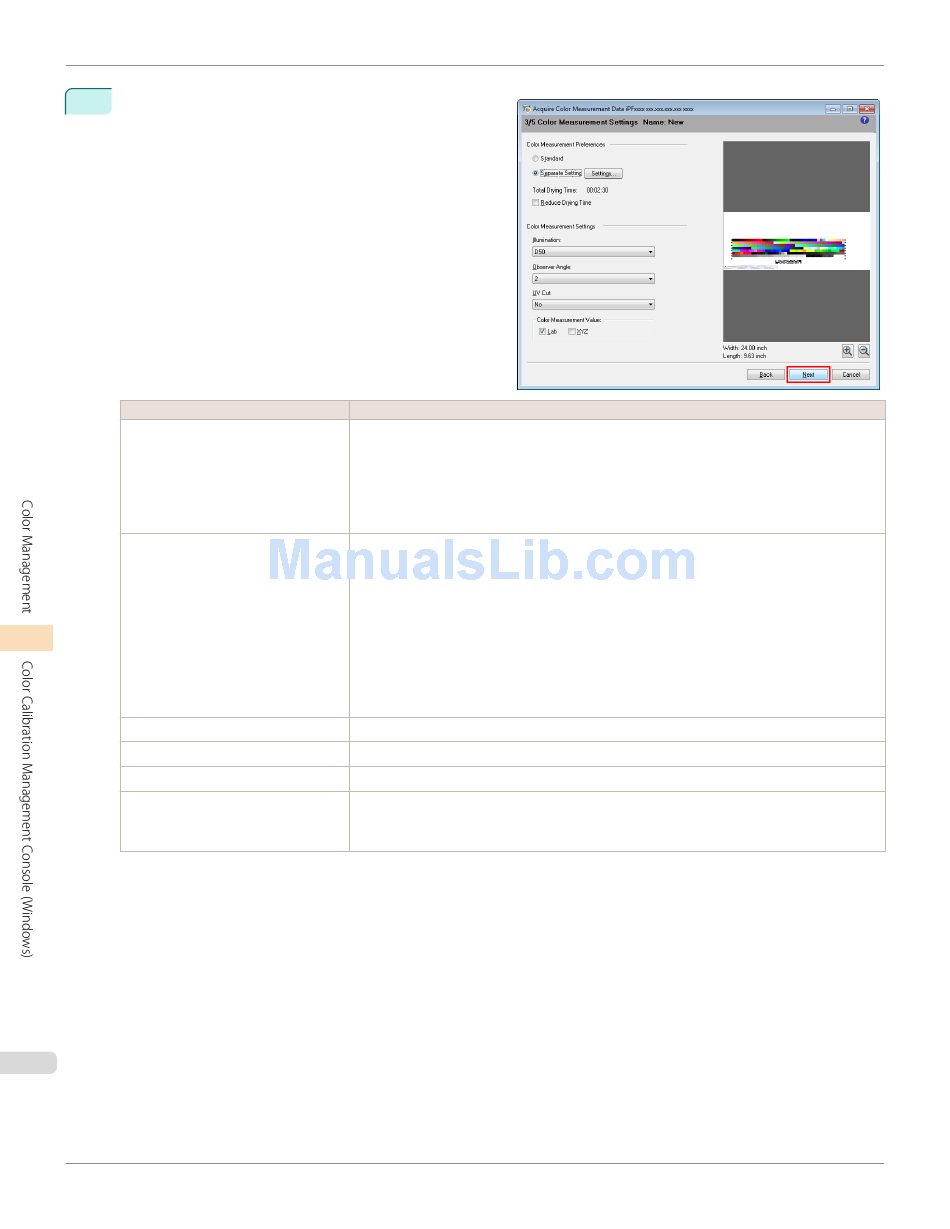

Acquiring Color Measurement Data For Any Color Chart
7
Configure the color measurement settings and drying
settings, and then click Next.
Color Measurement Preferences
Reduce Drying Time
Illumination
Observer Angle
UV Cut
Color Measurement Value
*1: If you want to enlarge the color chart pattern or configure the color chart drying settings in detail, click the Settings button to
display the Color Measurement Preferences dialog box.
834
Setting Item
Configures the pattern size to print the color charts and the drying settings for the printed color
charts.
Choose Standard to print at the standard pattern size and dry using the standard setting val-
ues.
Click the Settings button to display the Color Measurement Preferences dialog box, which
allows you to configure the pattern size and drying method in detail.( *1 )
Selecting this check box reduces the drying time.
Once the time configured in the Color Measurement Env. sheet in the Preferences dialog box
has elapsed, color measurement proceeds without performing any further drying with the venti-
lation fan.
Specify a time that offers sufficient drying by air drying in the Preferences dialog box. If you
perform color measurement while the ink is not dry, the measurements may not be correct.
The Preferences dialog box is displayed when you click Preferences in the File menu.
If the number of patterns is small, drying will finish in a shorter amount of time than the time
configured in the Preferences dialog box. If this happens, the drying time will not be reduced
even if the Reduce Drying Time check box is selected.
Select the illumination from D50, D65, and A.
Selects the observer angle.
Selects whether or not UV cut is used.
Saves the color measurement data for the color measurement values where the check box is
selected.
The Lab check box cannot be cleared.
