ENGINE COMPARTMENT OVERVIEW - 2.0L DURATORQ-
TDCI (DW) DIESEL

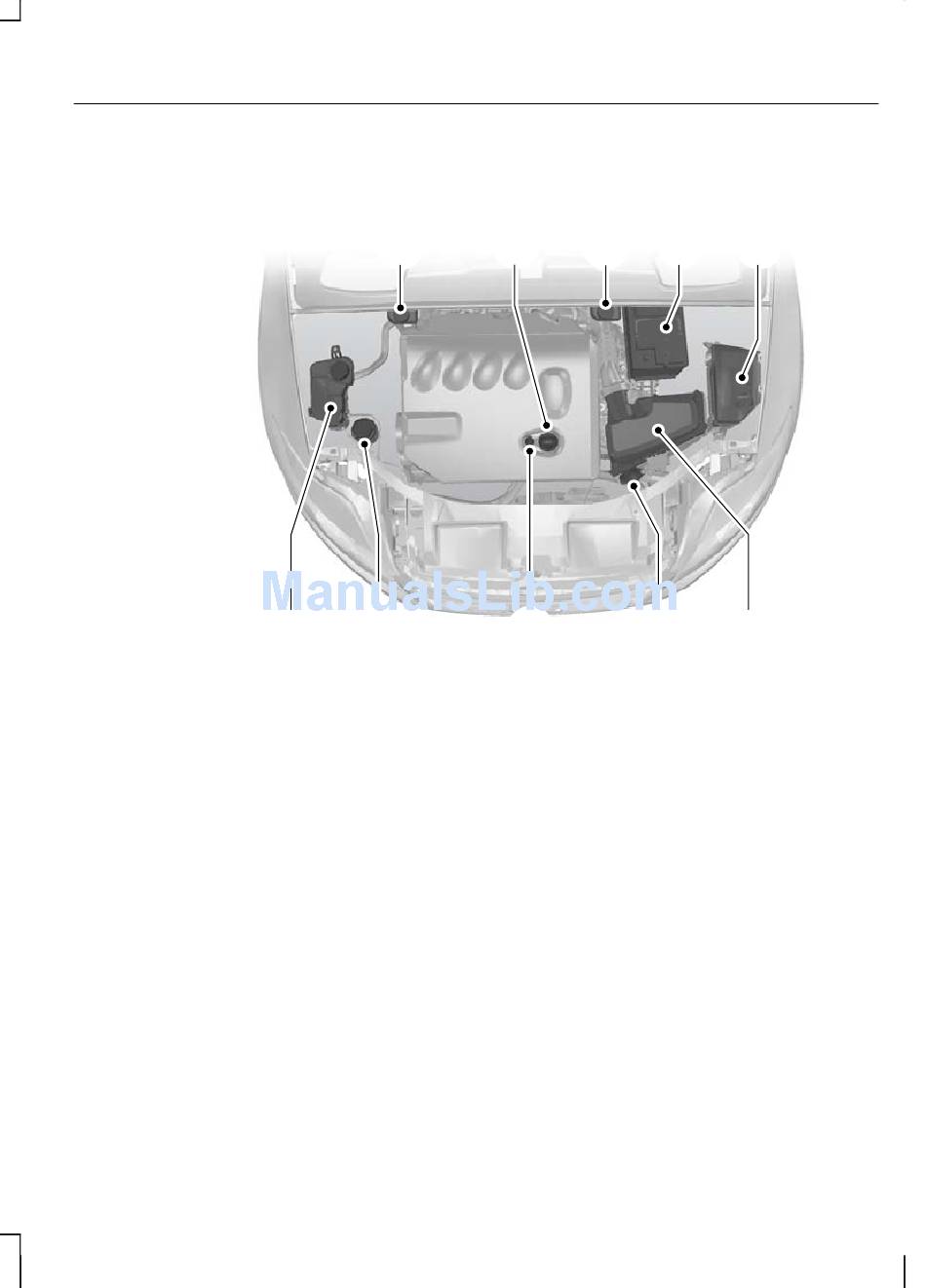

E73234
A Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch
fluid check (page 193).
B Engine oil filler cap
C Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch
fluid check (page 193).
D Battery. See Battery care (page 199).
E Engine compartment fuse box. See Fuse specification chart (page 171).
F Air cleaner. No maintenance necessary.
G Screen washer fluid reservoir. See Washer fluid check (page 194).
H Engine oil dipstick
I Power steering fluid reservoir. See Power steering fluid check (page
193).
J Engine coolant reservoir. See Engine coolant check (page 192).
1
The filler caps and the engine oil dipstick are coloured for easy identification.
