Summary of Contents for VIETA VMD500
-
Page 2: Table Of Contents
Table of Contents Before Connection ........................2 For your safety ............................2 Precautions .............................. 2 Connection ..........................3 Connect to the TV ........................... 3 Connecting the Speakers ........................3 Connecting the FM Antenna ........................4 Connect to the assistance equipment ....................4 Connect to the amplifier with digital signal input terminal .............. -
Page 3: Before Connection

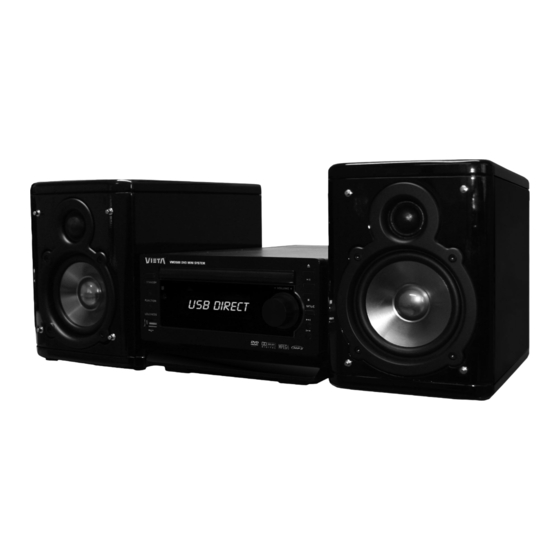

Before Connection Thank you for purchasing this DVD 2 channel component system, in order to fully utilize this system, please read this instruction book carefully before use it. For your safety Precautions 1. Before operating this system, check the voltage of CAUTION this system to see if it is identical with the voltage RISK OF ELECTRIC SHOCK... -
Page 4: Connection
Connection Caution: Please turn off all the equipment power before connecting. Connect to the TV Connecting diagram Safety precautions Terminal board for the DVD player 1. This unit has video and S terminal output modes, please choose one to connect with the TV terminal. -
Page 5: Connecting The Fm Antenna
Connecting the FM Antenna Using the supplied wire Antenna Using the coaxial type connector A 75Ohm antenna with coaxial type connector should be con- nected to the FM 75 ohm coaxial terminal. If reception is poor, connect the outside antenna. FM outdoor antenna Coaxial Cable Note: Before attaching a 75 ohm coaxial lead (the kind with a... -
Page 6: Connect To The Amplifier With Digital Signal Input Terminal
Connect to the amplifier with digital signal input terminal Terminal board for the DVD player Use coaxial signal wire to connect coaxial output jack of the DVD player with coaxial input jack of other amplifier, then you can feel the super digital With digital signal input terminal’s Dolby Digital signal decode amplifier sound effect. -
Page 7: Control Locations
Control Locations The Unit Function Select Button Standby Button Disc Tray Play/Pause Button Tuning Forward Button Open/Close Button Stop Button Tuning Backward Button Loudness Button USB Port Remote Sensor VFD Display Lens Volume Control Knob Button Next Button Channel Select Forward Button Previous Button Channel Select Backward Button Mode Button... -
Page 8: Remote Control
Remote control Dimmer Button 1. Standby Button 2. DVD Function Button Preset Equalizer Button 3. TUNER Function Button Subtitle Button Band Switch Button Title Button Function Setting Button Direction Button ( Direction Button ( Direction Button ( Clock Button Next Button Channel Select Forward Button Previous Button Channel Select Backward Button... -
Page 9: Installation Of Batteries In The Remote Control
Installation of Batteries in the Remote Control 1. Remove the battery compartment cover. 2. Insert two batteries (size AAA) correctly, so that the + and - polarities match the polarity diagrams in the battery compartment. About half a year of normal operation can be expected when using standard batteries. When the batteries are exhausted, the remote will not function. - Page 10 Press the stop button ( ) to stop playing, the unit will store the last playing time in the memory automatically, then press the button, the unit will resume to last memory time and continue playback automatically. If you press the stop button ( ) twice to stop the disc playing.
- Page 11 If your DVD disc has one or more music chapters or titles, you can setup playing order for the disc using this button. Press the program button, TV display will be as follows: Note: TT: Title CH: Chapter * Use the buttons to input the sequence number which you want to program 0-9,10+ playing (the first selection is title and the second selection is chapter of the programs...
-
Page 12: Playing Picture Cd Disc
You may directly enter a time, title or chapter number to go to a particular point on the disc. The unit will play from this point. 1. Press the time search button ( ) on the remote control. GOTO 2. Press the buttons on the remote control, enter the time, title or chapter numbers to look for desired scene. -
Page 13: Dvd Menu Options
When playing, press button to select one of the transition effect to playing the PROGRAM picture. When playing, use the button to enter the “Thumbnail Mode”. (Use the buttons to display previous or next 6 pictures of disc. Press the button to exit the “Thumbnail Mode”... - Page 14 DUAL MONO Select the setting that matches the number of speak- ers you have connected. STEREO --- Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker. L-Mono --- Left mono sound will send output signals to Left speaker and Right speaker.
- Page 15 Contrast Adjusts the contrast level. Range: -16-+16. Gamma Adjusts the gamma level. High, Medium, Low and None. Adjusts the hue level. Range: -9-+9. Saturation Adjusts the saturation level. Range: -9-+9. Luma Delay Adjusts the luma delay. 0 T and 1 T. Preference Setup Page l l l l l TV Type...
-
Page 16: Use The Usb
5-6 PGR, R --- Parental Guidance - Restricted; recom- mended that parents restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian. 7 NC-17 --- No children under age 17; not recom- mended viewing for children under age 17. -
Page 17: Listening To Radio Broadcasts
Listening to Radio Broadcasts Caution: Before listening to the radio, please check if FM antennas are correctly connected. Press tuner function button ( ) to select TUNER function. TUNER (You can also operate the key “ ” on the panel of unit.) FUNCTION Press the tuning forward button ( ) repeatedly to move from frequency to frequency... -
Page 18: Rds (Radio Data System) Reception
RDS (Radio Data System) Reception Many FM stations are broadcasting added data compatible with RDS. This radio set offers convenient functions using such data. w w w w w PS (Program Service Name) When an RDS station is received, the RDS indicator lights and automatically displays the name of that station instead of the frequency. -
Page 19: Setting The Daily Timer
Setting the Daily Timer In standby mode, you can use the daily timer setting to turn the unit on automatically at a certain time everyday under standby mode. When the setting timer is on, the timer indictor “ ” will display on the VFD, however the clock must be set correctly for the timer function to work. -
Page 20: Protect The Disc
Protect the Disc 1. To keep the disc clean, please don’t touch the disc’s surface when you are holding it. You should hold the edge. 2. If the disc is dirty, it will affect the sound quality. Please use the clean and soft cloth to wipe the disc from inside to outside. -
Page 21: Specification
Specification System Power supply ................ ~230V / 50 Hz Rated working power consumption ........£ 40W Channel Separation ............. ³ 40dB Distortion ................£ 0.7% Dimensions ................160(W) x 76(H) x 275(D) mm Frequency response ............20Hz-20kHz (±3dB) Video output ................1 V Horizontal definition .............. -
Page 22: Accessories
Accessories FM antenna ................1 Speaker box connect line ............. 2 A/V signal line ............... 1 Adapter ................. 1 Power line ................1 SCART Adapter ..............1 Stand ..................1 Battery ................... 2 Remote control ..............1 Instructions manual ............. 1 Note: Design and specifications are subject to change without prior notice.
