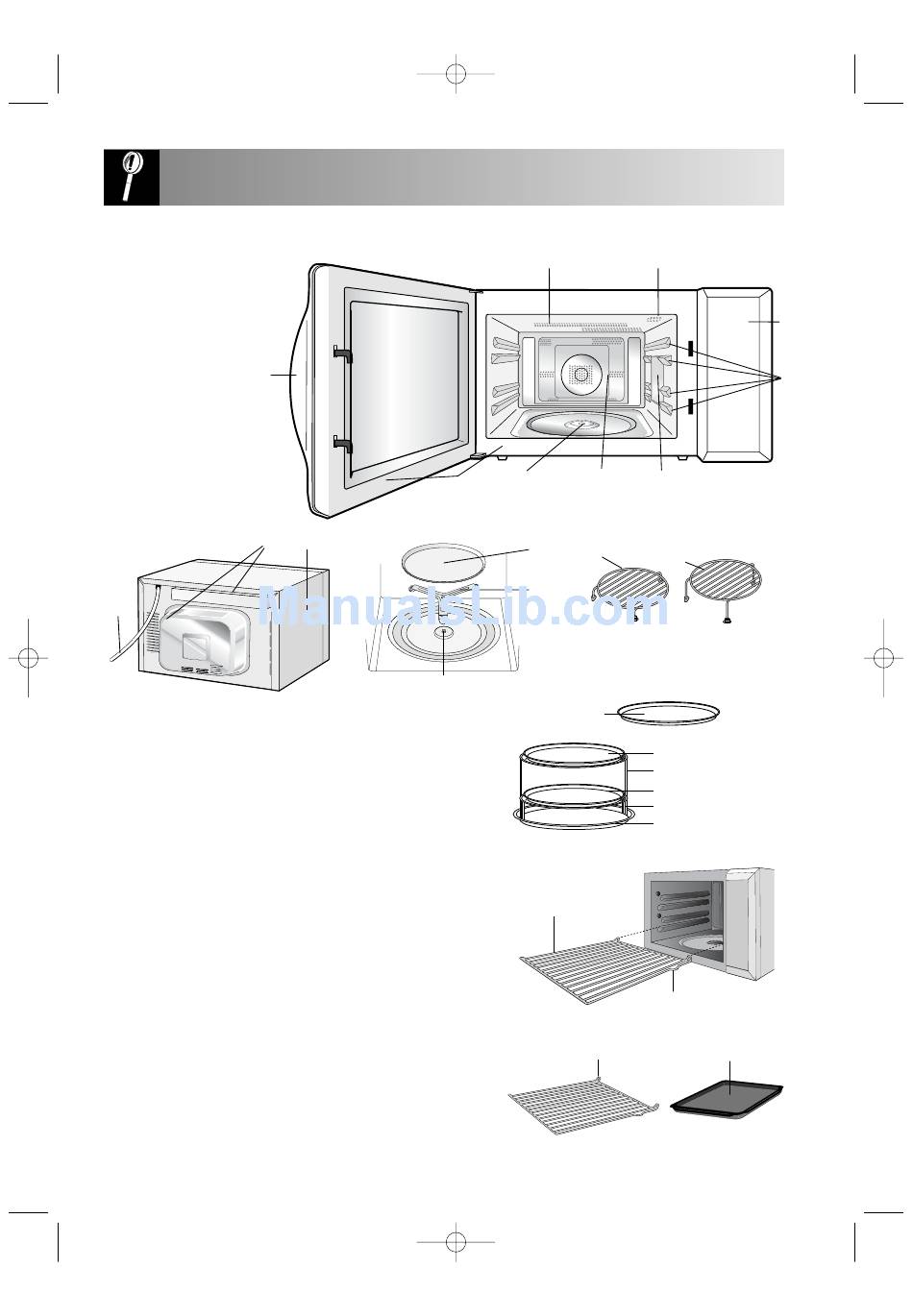

OVEN AND ACCESSORIES
1 Grill heating
element
2 Oven lamp
3 Control panel
4 Shelf Runners
5 Waveguide cover
6 Oven cavity
7 Coupling
8 Door seals and
sealing surfaces
9 Door opening
handle
10 Air-vent openings
11 Outer cabinet
12 Power cord
12
ACCESSORIES:
Check to make sure the following accessories are supplied:
13 Turntable, 14 Turntable support, 15 Low rack, 16 High rack,
17 Baking tin, 18 Square shelf, 19 Square tin
• Place the turntable support into the coupling in the centre of
the oven floor, ensuring you place it TOP side up, (TOP is
engraved on one side). It should be able to freely rotate
around the coupling.
• Place the turntable on to the turntable support.
• Place the high/low racks onto the turntable if necessary.
• The baking tins are only recommended for baking pastries in
convection mode. Place the tin on the low rack. In case of two
stage baking place additionally another household baking tin
(not supplied with oven) on the high rack as shown opposite.
• When using the square shelf or square tin, place them onto
the shelf runners as shown in Fig. A. When using the square
shelf, ensure the shelf locator is on the right side.
NOTES:
• Always operate the oven with the turntable and support fitted
correctly. This promotes thorough even cooking. A badly fitted
turntable may rattle, may not rotate properly and damage the
oven.
• The turntable rotates clockwise or counter clockwise.
The rotary direction may change each time you start the oven.
This does not affect cooking performance.
• When you order accessories, please mention two details: part
name and model name to your dealer or SHARP authorised
service facility.
12:37 PM
Page 2
9
10
11
Coupling
1
7
6
8
13
15
14
These racks are used for cooking
in Convection, Dual or Grill mode.
17
Fig. A
Square shelf
18
Use for convection only. See page13.
2
2
3
4
5
16
Household baking tin
High rack
Baking tin
Low rack
Turntable
Shelf locator
19
