Gigaset 3000 Comfort Operating Instructions Manual
Hide thumbs
Also See for Gigaset 3000 Comfort:
- Operating instruction (30 pages) ,
- User manual and safety precautions (125 pages) ,
- User manual (85 pages)
Related Manuals for Gigaset Gigaset 3000 Comfort
Summary of Contents for Gigaset Gigaset 3000 Comfort
-

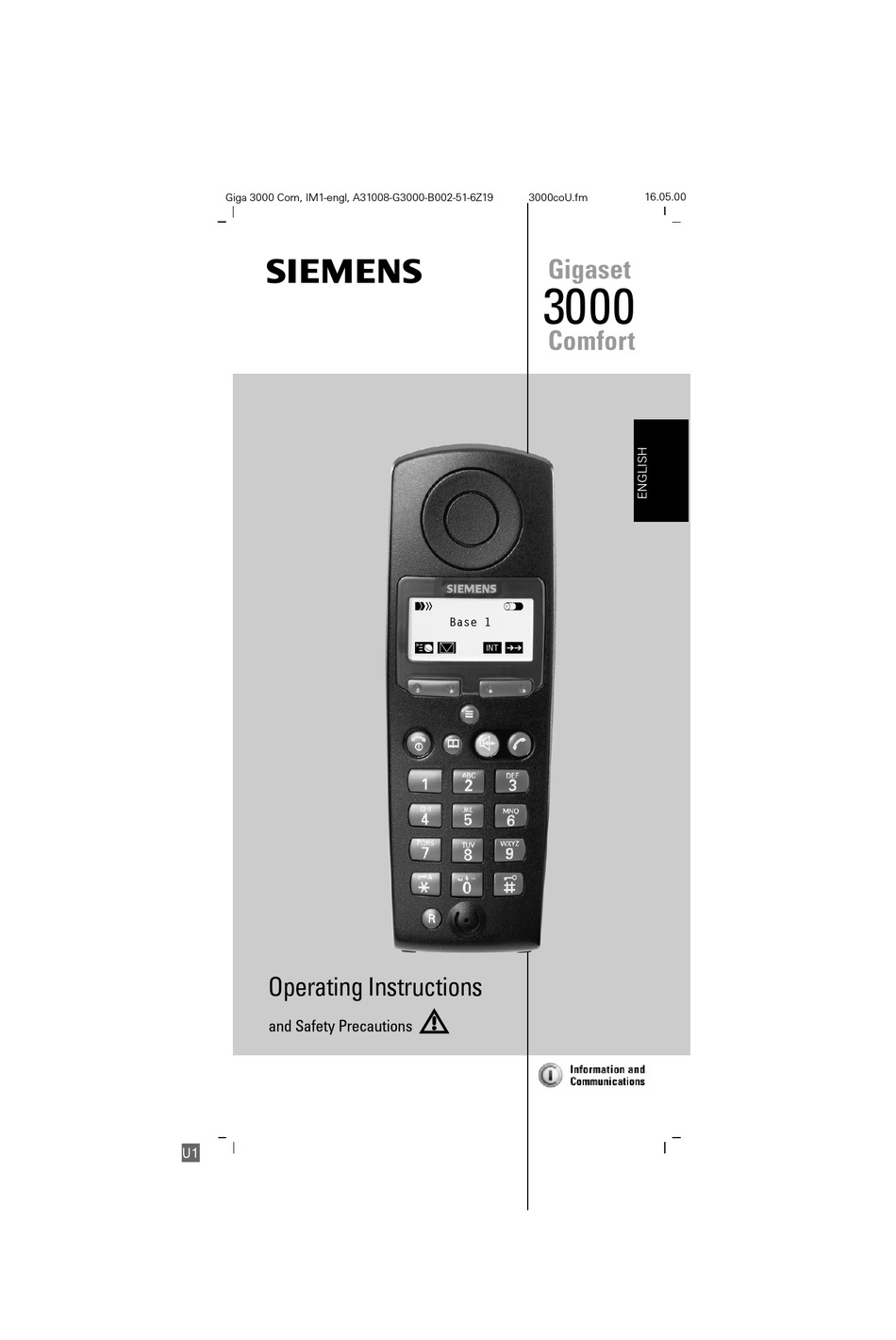

Page 1: Operating Instructions
16.05.00 Giga 3000 Com, IM1-engl, A31008-G3000-B002-51-6Z19 3000coU.fm *LJDVHW 3000 &RPIRUW 3?7 M , + [ Operating Instructions and Safety Precautions... -
Page 2: Brief Overview
16.05.00 Giga 3000 Com, IM1-engl, A31008-G3000-B002-51-6Z19 3000coU.fm Brief overview The display is protected by a film. Please remove protective film. Base name Charging status – Constant: ready full for dialling/to empty receive – Flashing: no Display keys base station contact see below M, + [ 3?7 ... -
Page 3: Important Menus
16.05.00 Giga 3000 Com, IM1-engl, A31008-G3000-B002-51-6Z19 3000coU.fm Important menus Main menu Directory Supplementary menu Settings Audio Redialling number Activate the Supplementary menu main menu Scroll through menus, directory Confirm function/ input Activate supple- mentary menu Cancel/end func- tions... -
Page 4: Safety Precautions
Operate battery type in accordance with these operating instructions. • Never use non-Siemens charging units as these can dam- age the batteries. • Batteries heat up during charging - this is a normal occur- rence and is not dangerous. -
Page 5: Table Of Contents
18.05.00 Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000CoIVZ.fm Contents Brief overview ..............2 Idle display, display keys...........2 Important menus .............. 3 Safety precautions............4 Display symbols ..............4 Preparing the handset ............6 Inserting the batteries............6 Charging the batteries............7 Fitting the attachment clip ..........8 Activating/deactivating the handset ........8 Activating/deactivating keypad protection ......8 Registering the handset ........... -
Page 6: Preparing The Handset
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Preparing the handset Contents of the package Gigaset 3000 Comfort enhanced handset, two batteries, attachment clip, operating instructions. Inserting the batteries • Never use ordinary (non-rechargeable) batteries. Only use approved batteries of the same type (rechargeable), otherwise the battery casings may be destroyed (dangerous). -
Page 7: Charging The Batteries
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Charging the batteries The batteries supplied are not charged. To charge the bat- teries, insert the handset either into the base station or the Gigaset 3000L charging unit – you will hear the confirmation beep. -
Page 8: Fitting The Attachment Clip
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Handset operating time/charging time: Charging Capacity Standby time Talktime time (mAh) (hours) (hours) (hours) up to 100 over 10 approx. 5 up to 160 over 15 approx. 9 1100 1500 up to 220 over 20 approx. -
Page 9: Registering The Handset
When you switch on your handset, the message appears. Step 1: • You must first prepare the Siemens base station: Gigaset Preparing the base station 3010/pocket Press the coloured key on the base station 3015 for approx. -
Page 10: Making Calls
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Making calls Making external calls Enter the call number. If necessary, correct with Press the talk key to start dialling. Ending a call: Press the end call key – You can cancel the dial operation with the end call key –... -
Page 11: Handsfree Talking
Press the handsfree talking key instead of the talk key Transferring a call, making an enquiry call Siemens base stations allow you to transfer an external call to another handset or to hold a call while making an internal enquiry call. -
Page 12: Redial
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Redial Manual redial You can access the last five call numbers dialled. Display and select the call number. Start the dial operation. Automatic redial This function is not available in all countries! The handset redials the last call number. Display and select the call number. -
Page 13: Directories
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Directories With the directory , you can store up to 100 call num- bers and then dial them at the push of a button. You can store prefixes for telephone companies and fre- quently used call numbers in the network access list (see also Network access support, page 16). -
Page 14: Entering Names
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Entering names To enter names, you can choose letters, digits and symbols with the appropriate key: Press the appropriate key repeatedly or hold it down: ä à â ã ç ë é è ê... -
Page 15: Additional Functions
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Additional functions Display the directory/network access list. e.g. Enter the first letter of the name, e.g. press for " Open the supplementary menu. Select the required function and con- firm: (add to/change a call number before dialling);... -
Page 16: Network Access Support
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Network access support • Linking call numbers This function allows you to merge two parts of a number. Open the network access list and select an entry. Open the supplementary menu. Confirm – the number is displayed. -
Page 17: Caller List
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Caller list Unanswered calls are also, for example, stored in the caller list New entries in the caller list are indicated by the display symbol Press the display key – the caller list, for example, is displayed. -
Page 18: Ringer Volume/Melody
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Ringer volume/melody – You can choose between 5 ringer volumes, the crescendo ring (=C; increasing volume) and ringer off (=0). – You can choose between 10 ringer melodies. Press the menu key. Select Select Select Change the setting and save. -
Page 19: Security
Identification Number) on your handset. Do not forget your telephone PIN! It can only be reset by calling the Siemens hotline, see back cover. First steps are as described at the start of the Safety pre- cautions section, then:... -
Page 20: Hot Key Selection (Direct Station Selection)
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Hot key selection (direct station selection) This function is not available in all countries! When hot key selection is activated, every keystroke ini- tiates a call to the previously stored hot key number. Sick people and the elderly, for example, can thus summon help in emergencies. -
Page 21: Dialling The Emergency Number
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Dialling the emergency number When the hot key/telephone lock is activated, you can dial the emergency numbers saved on the base station – see base station operating instructions! Further settings Auto talk If this function is activated, simply remove the handset from the base station/charging unit to answer a call. -
Page 22: Resetting The Handset To The Default Configuration
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Resetting the handset to the default configu- ration The telephone PIN is not reset, the directory, network access list and the caller list are not deleted. Handset factory settings: Language setting English Hot key, redial deleted Auto talk, key beep, battery low beep, con- firmation beeps... -
Page 23: Base Settings
Base settings Registering the handset You can operate your handset at up to 4 base stations. For information on registering at non-Siemens GAP base stations, see the relevant base station operating instruc- tions. • To prepare the base station, see page 9. -
Page 24: User Options (Short Cuts)
– automatic switch to the base station with the strongest reception. Select Only possible in conjuction with some Siemens ISDN base stations. Refer to the appropriate operating instructions. User options (short cuts) Base station user options Only available with Gigaset 3000 base stations! Refer to the appropriate operating instructions. - Page 25 Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Additional supplementary menu functions when enter- ing the short cut contents: The following letters are displayed for the functions: Select a function and confirm. The meaning of the character at the current cursor position is displayed.
-
Page 26: Room Monitor
Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00 Room monitor When the room monitor feature is activated, an internal call to another handset is triggered as soon as the noise level in the monitored room reaches the level set. You can hear the noises in the room when you answer the call. -
Page 27: Appendix
Low reception strength Guarantee/service Over a guarantee period of six months from the date of pur- chase from the stockist, Siemens AG will rectify all material or manufacturing defects by repairing or replacing the defec- tive terminal. The guarantee does not cover damage caused by incorrect use, wear and tear, or third-party access. - Page 28 Giga 3000 Comfort, IM1-engl, A31008-G3000-B002-50-6Z19 3000co.fm 18.05.00...
