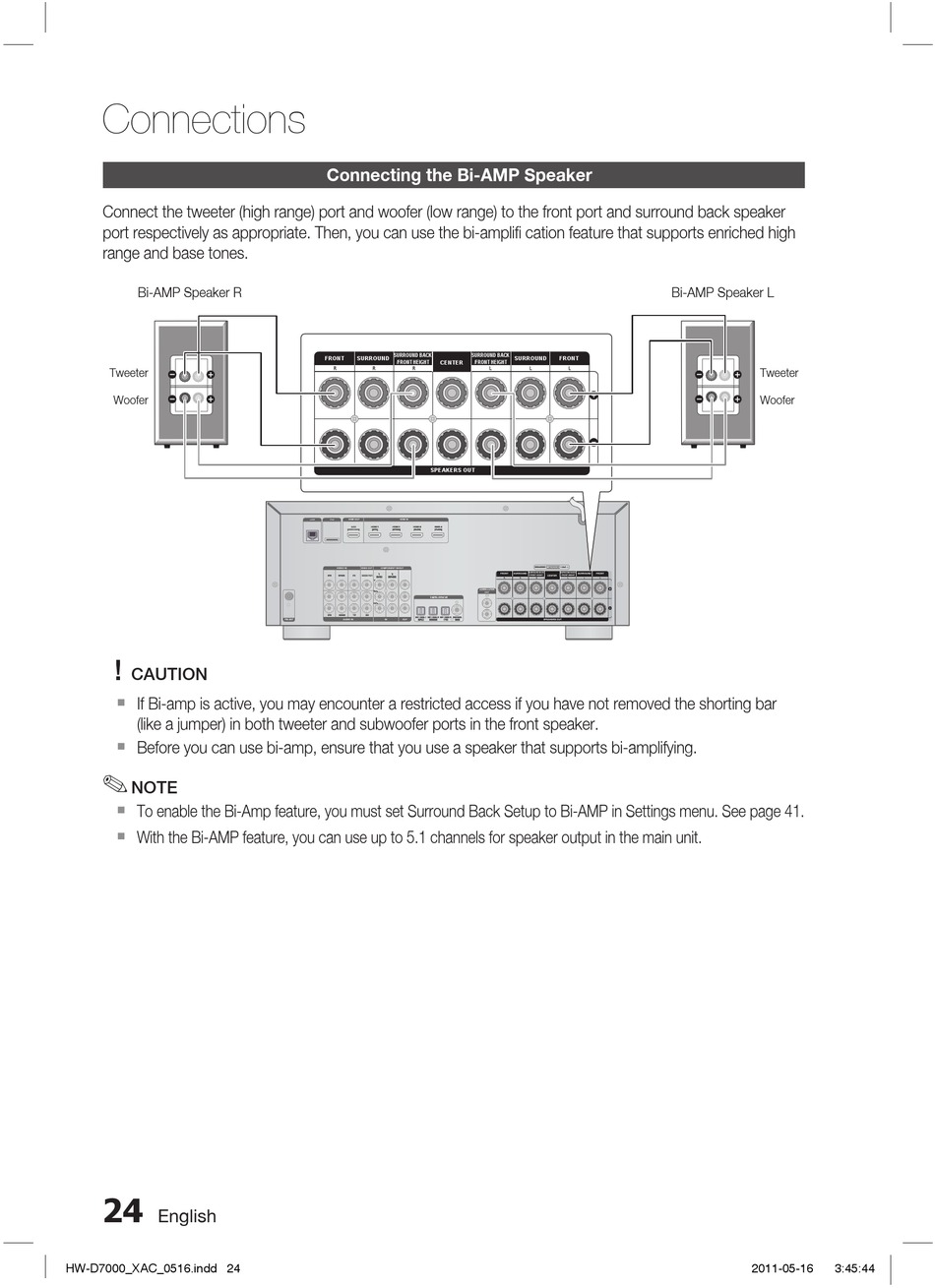

Connecting The Bi-Amp Speaker - Samsung HW-D7000 User Manual

Connections
Connect the tweeter (high range) port and woofer (low range) to the front port and surround back speaker
port respectively as appropriate. Then, you can use the bi-amplifi cation feature that supports enriched high
range and base tones.
Bi-AMP Speaker R
Tweeter
Woofer
!
CAUTION

If Bi-amp is active, you may encounter a restricted access if you have not removed the shorting bar
(like a jumper) in both tweeter and subwoofer ports in the front speaker.

Before you can use bi-amp, ensure that you use a speaker that supports bi-amplifying.
✎
NOTE

To enable the Bi-Amp feature, you must set Surround Back Setup to Bi-AMP in Settings menu. See page 41.

With the Bi-AMP feature, you can use up to 5.1 channels for speaker output in the main unit.
24
English
HW-D7000_XAC_0516.indd 24 HW-D7000_XAC_0516.indd 24

Connecting the Bi-AMP Speaker

SURROUND BACK
FRONT SURROUND
/FRONT HEIGHT
CENTER
SPEAKERS OUT
HDMI OUT HDMI OUT HDMI IN HDMI IN
LAN LAN iPod iPod
A A R R C C C C C C A A R R ARC A A R R HDMI 1 HDMI 2 HDMI 3 HDMI 4
(MONITOR) (M M O O NI O (M M O O NI TOR R ) ) TOR R ) O (SAT) (GAME) (AUX1) (AUX2)
VIDEO IN VIDEO IN VIDEO OUT VIDEO OUT COMPONENT IN/OUT COMPONENT IN/OUT
1 2
SAT GAME TV M M O O N N T T O O R R MONITOR M M O O N N T T O O R R
(SAT) (GAME)
Y
P /C
B B
P /C
R R
SAT GAME TV CD
OPTICAL 1 OPTICAL 2 OPTICAL 3 COAXIAL
AUDIO IN AUDIO IN IN IN OUT OUT (SAT) (GAME) (TV) (CD)
FM ANT FM ANT
SURROUND BACK
SURROUND FRONT
/FRONT HEIGHT
SPEAKER IMPEDANCE IMPEDANCE : 4~8
SURROUND BACK SURROUND BACK
FRONT SURROUND SURROUND FRONT
/FRONT HEIGHT CENTER /FRONT HEIGHT
SUBWOOFER SUBWOOFER
OUT OUT OUT
SPEAKERS OUT
Bi-AMP Speaker L
Tweeter
Woofer
