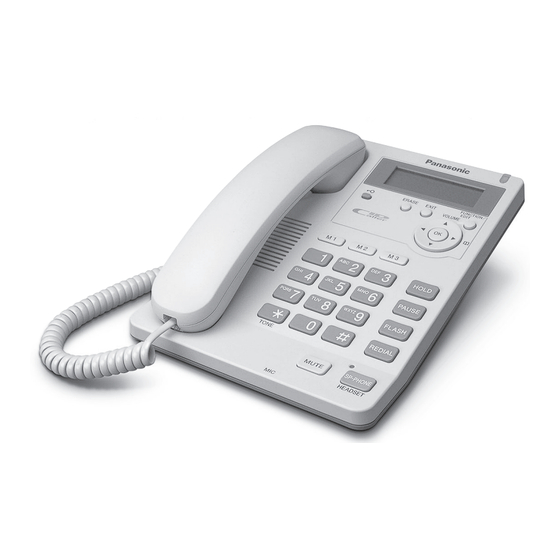

Panasonic KX-TS600FX Operating Instructions Manual

Integrated telephone system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

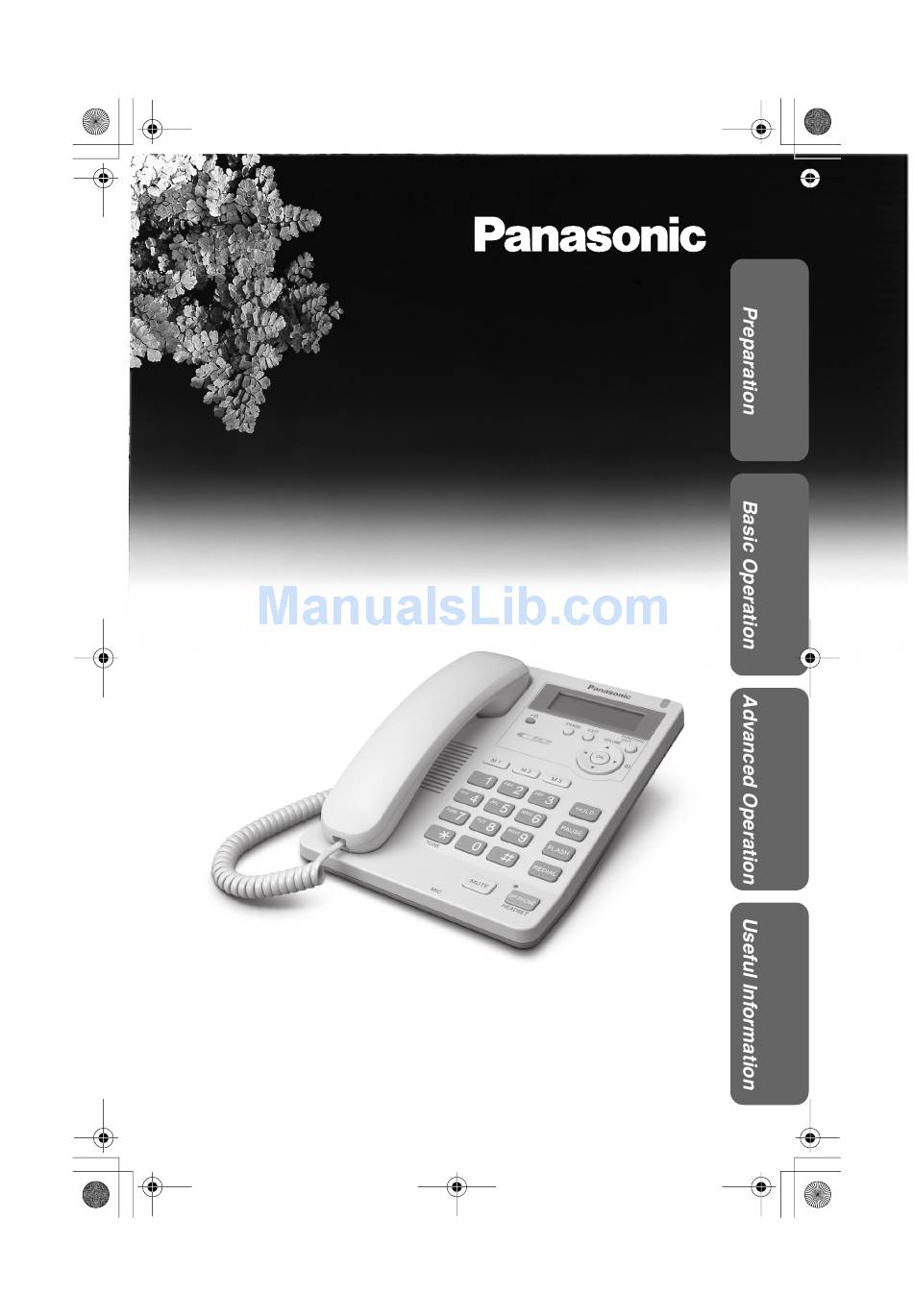

TS600FX.book Page 1 Wednesday, April 5, 2006 10:27 AM
Integrated Telephone System
Operating Instructions
KX-TS600FX
Model No.
Pulse-or-tone dialling capability
KX-TS600FXW
This unit is compatible with Caller ID. To use this feature, you must
subscribe to the appropriate service offered by your service provider.
Please read these Operating Instructions before using the unit and save
for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TS600FX

Summary of Contents for Panasonic KX-TS600FX

  • Page 1 TS600FX.book Page 1 Wednesday, April 5, 2006 10:27 AM Integrated Telephone System Operating Instructions KX-TS600FX Model No. Pulse-or-tone dialling capability KX-TS600FXW This unit is compatible with Caller ID. To use this feature, you must subscribe to the appropriate service offered by your service provider.

  • Page 2: Before Initial Use

    • In the event of problems, you should contact your equipment supplier in the first instance. Declaration of Conformity: • Panasonic Communication Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.

  • Page 3: Table Of Contents

    TS600FX.book Page 3 Wednesday, April 5, 2006 10:27 AM Contents Preparation Advanced Operation Location of Controls..4 Phonebook....26 Storing Names and Phone Display .

  • Page 4: Location Of Controls

    TS600FX.book Page 4 Wednesday, April 5, 2006 10:27 AM Location of Controls [FUNCTION/EDIT] Button (p. 8, 21) [EXIT] Button (p. 8, 19) [ERASE] Button (p. 21, 25, 31) [DIAL LOCK] Button (p. 39) Display (p. 5) Direct Dial Button (p. 23, 32) RINGER Indicator Headset Jack (p.

  • Page 5: Display

    TS600FX.book Page 5 Wednesday, April 5, 2006 10:27 AM Display (This display shows all of the possible configurations.) 0:00 31.12 While the unit is not in use, the display shows the current time and date, and the number of 10 missed calls missed calls.

  • Page 6: Settings

    To Single-Line Telephone Jack • Use only a Panasonic Handset for the KX-TS600FXW and KX-TS600FXB. • Use only the telephone line cord included with the unit. • If your unit is connected to a PBX which does not support Caller ID services, you...

  • Page 7: Device

    TS600FX.book Page 7 Wednesday, April 5, 2006 10:27 AM If you subscribe to a DSL service • Please attach a noise filter (contact your DSL provider) to the telephone line between the base unit and the telephone line jack in the event of the following: jNoise is heard during conversations.

  • Page 8: Programming Summary

    TS600FX.book Page 8 Wednesday, April 5, 2006 10:27 AM Settings Programming Summary You can program the following functions. The display shows the programming instructions. See the corresponding pages for function details. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 9: Time And Date

    TS600FX.book Page 9 Wednesday, April 5, 2006 10:27 AM Time and Date You can select 24-hour clock or AM/PM by programming. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off. Press [FUNCTION/EDIT]. Set clock ? Scroll to “Set clock ?”...
  • Page 10 TS600FX.book Page 10 Wednesday, April 5, 2006 10:27 AM Settings Press [#] to select “AM”, “PM” or 24-hour #=AM/PM/24H clock. [OK]=Next (Example: You select “PM”.) Display Option 24-Hour clock • Each time you press [#], the selection will change on the display. Press [OK] (Next key).

  • Page 11: Display Language

    TS600FX.book Page 11 Wednesday, April 5, 2006 10:27 AM Display Language You can select “English”, “Czech”, “Polish”, “Hungarian” or “Romanian” as the display language. Your phone default setting is “English”. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 12: Dialling Mode

    TS600FX.book Page 12 Wednesday, April 5, 2006 10:27 AM Settings Dialling Mode You can select the dialling mode by programming. If you have touch tone service, set to Tone. If rotary or pulse service is used, set to Pulse. Your phone default setting is Tone.

  • Page 13: Lcd Contrast

    TS600FX.book Page 13 Wednesday, April 5, 2006 10:27 AM LCD Contrast You can select the LCD contrast level from 1 to 4 by programming. Your phone default setting is 2. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 14: Time Adjustment (Caller Id Subscribers Only)

    TS600FX.book Page 14 Wednesday, April 5, 2006 10:27 AM Settings Time Adjustment (Caller ID subscribers only) Using this feature, the unit’s date and time setting will be automatically adjusted when caller information is received. You can set the auto time adjustment by programming. Your phone default setting is OFF.

  • Page 15: Making Calls

    TS600FX.book Page 15 Wednesday, April 5, 2006 10:27 AM Making Calls You can make a call by simply lifting the handset. To hang up, place the handset on the cradle. Using the speakerphone Press [SP-PHONE/HEADSET], then dial a phone number. Dial a phone number, then press 12:34 21.5...
  • Page 16 TS600FX.book Page 16 Wednesday, April 5, 2006 10:27 AM Making Calls To redial the last number dialled Using the handset: Lift the handset press [REDIAL]. Press [REDIAL] Lift the handset. Using the speakerphone: Press [SP-PHONE/HEADSET] press [REDIAL]. Press [REDIAL] press [SP-PHONE/ HEADSET].

  • Page 17: Answering Calls

    TS600FX.book Page 17 Wednesday, April 5, 2006 10:27 AM To put a call on hold Press [HOLD]. • The SP-PHONE/HEADSET indicator flashes. • If using the handset, you can place it on the cradle. • During the hold, both parties will hear a hold music. To cancel the hold music, see page 36 To release the hold If the handset is on the cradle, lift the handset.

  • Page 18: Caller Id Service

    TS600FX.book Page 18 Wednesday, April 5, 2006 10:27 AM Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. If you subscribe to a Caller ID service, the caller’s information will be displayed when the unit is ringing. The unit can record information of up to 50 incoming calls, including the time and date received, in the Caller List.

  • Page 19: Using The Caller List

    TS600FX.book Page 19 Wednesday, April 5, 2006 10:27 AM Using the Caller List If you have received 10 missed calls, the 12:34 21.5 number of missed calls will be displayed as 10 missed calls shown, while the unit is not in use. Viewing the Caller List To check who has called, follow the steps below.

  • Page 20: Calling Back From The Caller

    TS600FX.book Page 20 Wednesday, April 5, 2006 10:27 AM Using the Caller List Display meaning: : You have checked this caller information, answered the call or called back the caller. Calling Back from the Caller List Press [ ] or [ ] to enter the Caller List.

  • Page 21: Editing The Caller's Phone Number

    TS600FX.book Page 21 Wednesday, April 5, 2006 10:27 AM Editing the Caller’s Phone Number You can edit a phone number recorded in the Caller List. Press [ ] or [ ] to enter the Caller List. Scroll to the desired caller by pressing 1234567890 ] or [ 10:50...

  • Page 22: Storing Caller List Information In The Phonebook

    TS600FX.book Page 22 Wednesday, April 5, 2006 10:27 AM Using the Caller List Storing Caller List Information in the Phonebook You can store numbers that are in the Caller List in the Phonebook. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 23: Storing Caller List Information In The Direct Dial Memory

    TS600FX.book Page 23 Wednesday, April 5, 2006 10:27 AM Storing Caller List Information in the Direct Dial Memory You can store numbers that are in the Caller List to the Direct Dial memory ([M1], [M2] and [M3]). Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.
  • Page 24 TS600FX.book Page 24 Wednesday, April 5, 2006 10:27 AM Using the Caller List If the Direct Dial button selected is M1 is occupied Overwrite ? occupied, the display on the right will ] =No [OK]=Yes be shown. To overwrite, press [OK] (Yes key). To select another empty Direct Dial memory, press [ ] (No key), press an...

  • Page 25: Erasing Caller List Information

    TS600FX.book Page 25 Wednesday, April 5, 2006 10:27 AM Erasing Caller List Information After checking the Caller List, you can erase some or all of the entries. Make sure that the handset is on the cradle, and the SP-PHONE/ HEADSET indicator light is off. To erase a specific caller from the Caller List Press [ ] or [...

  • Page 26: Phonebook

    TS600FX.book Page 26 Wednesday, April 5, 2006 10:27 AM Phonebook Storing Names and Phone Numbers in Phonebook You can store up to 50 names and phone numbers in memory. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 27: Selecting Characters To Enter Names

    TS600FX.book Page 27 Wednesday, April 5, 2006 10:27 AM Selecting characters to enter names The dialling buttons ([0] to [9], [ ] and [#]) can be used to enter letters and £ symbols. Pressing each button selects a character as shown below. Number of times key is pressed Keys &...

  • Page 28: Dialling From The Phonebook

    TS600FX.book Page 28 Wednesday, April 5, 2006 10:27 AM Phonebook Dialling from the Phonebook Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off. Press [ ] or [ ] to enter the Phonebook. Phonebook 10 items Scroll to the desired item by using...

  • Page 29: Chain Dial

    TS600FX.book Page 29 Wednesday, April 5, 2006 10:27 AM Index table Keys Index Keys Index Symbols, 1, No name P, Q, R, S, 7 A, B, C, 2 T, U, V, 8 D, E, F, 3 W, X, Y, Z, 9 ¢...

  • Page 30: Editing

    TS600FX.book Page 30 Wednesday, April 5, 2006 10:27 AM Phonebook Editing Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off. Press [ ] or [ ] to enter the Phonebook. Scroll to the Phonebook item you want to Jane change by using [ ] or [...

  • Page 31: Erasing

    TS600FX.book Page 31 Wednesday, April 5, 2006 10:27 AM Erasing Make sure that the handset is on the cradle and the SP-PHONE/HEAD- SET indicator light is off. Press [ ] or [ ] to enter the Phonebook. Scroll the Phonebook item you want erase by using [ ] or [ •...

  • Page 32: Direct Dial (M1, M2, M3)

    TS600FX.book Page 32 Wednesday, April 5, 2006 10:27 AM Direct Dial (M1, M2, M3) Storing Names and Phone Numbers in Memory You can store up to 3 names and phone numbers in the Direct Dial memory. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.
  • Page 33 TS600FX.book Page 33 Wednesday, April 5, 2006 10:27 AM If the Direct Dial button selected is M1 is occupied occupied, the display on the right will Overwrite ? ]=No [OK]=Yes be shown. To overwrite, press [OK] (Yes key). To select another empty Direct Dial memory, press [ ] (No key), then press an empty Direct Dial button ([M1], [M2] or...

  • Page 34: Dialling

    TS600FX.book Page 34 Wednesday, April 5, 2006 10:27 AM Direct Dial (M1, M2, M3) Dialling Lift the handset or press [SP-PHONE/HEADSET]. Press the required Direct Dial button ([M1], [M2] or [M3]). • The stored number is displayed and dialled. Press the required Direct Dial button ([M1], [M2] or [M3]). •...

  • Page 35: Special Features

    TS600FX.book Page 35 Wednesday, April 5, 2006 10:27 AM Special Features [ERASE] [DIAL LOCK] [EXIT] £ ] (TONE) [FUNCTION/EDIT] ], [ ], [OK] [PAUSE] [FLASH] [MUTE] Temporary Tone Dialling (For Rotary or Pulse Service Users) Press [ £ ] (TONE) before entering access numbers which require tone dialling.

  • Page 36: Muting Your Conversation

    TS600FX.book Page 36 Wednesday, April 5, 2006 10:27 AM Special Features Muting Your Conversation Press [MUTE] while talking. “ ” is displayed. • The other party cannot hear you but you can hear them. • To resume the conversation, press [MUTE] again. Setting Hold Music to ON/OFF You can set music play during the hold as follows.

  • Page 37: Flash Button

    TS600FX.book Page 37 Wednesday, April 5, 2006 10:27 AM FLASH Button Pressing [FLASH] allows you to use special features of your host PBX such as transferring an extension call or accessing special telephone services (optional) such as call waiting. Selecting the flash time The flash time depends on your telephone exchange or host PBX.

  • Page 38: Setting The Password

    • The display will return to step 3. To exit the programming mode, press [EXIT] or wait for 60 seconds. • You can exit the programming mode any time by pressing [EXIT]. Please write down your password. If you forget your password, consult your nearest Panasonic service center.

  • Page 39: Dial Lock

    TS600FX.book Page 39 Wednesday, April 5, 2006 10:27 AM Dial Lock The Dial Lock feature allows you to prevent others from making calls. To use this, set the feature ON. Your phone comes from factory is set to OFF. Before using the Dial Lock or Call Restriction feature (p. 40), we recommend storing emergency numbers in the memory of Direct Dial buttons (p.

  • Page 40: Call Restriction

    TS600FX.book Page 40 Wednesday, April 5, 2006 10:27 AM Special Features Call Restriction You can prevent the unit from dialling phone numbers beginning with specified digit(s) (1 digit or 2 digits). Phone numbers with the restricted leading digits cannot be dialled out, except the emergency numbers stored in the Phonebook and Direct Dial memory ([M1], [M2] and [M3]).
  • Page 41 TS600FX.book Page 41 Wednesday, April 5, 2006 10:27 AM When dialling a phone number with the restricted leading digit(s), “CALL RESTRICTED” will be displayed but not dialled out. To cancel the call restriction Follow steps 1 through 4 on page 40. In step 5, press [ERASE] to clear the restricted digits, and press [OK] (Save key).

  • Page 42: Optional Headset

    TS600FX.book Page 42 Wednesday, April 5, 2006 10:27 AM Optional Headset Plugging the optional headset into the unit allows a hands-free phone conversation. Please use only a Panasonic KX-TCA89EX. Connecting the Optional Headset to the Unit Connect the optional headset to the headset jack as shown below.

  • Page 43: Wall Mounting

    TS600FX.book Page 43 Wednesday, April 5, 2006 10:27 AM Wall Mounting This unit can be mounted on a wall. Press the tabs in the direction of the arrows (1), then remove the wall mounting adaptor (2). Tuck the telephone line cord inside the wall mounting adaptor, and push it in the direction of the arrow (1...

  • Page 44: Battery Replacement

    TS600FX.book Page 44 Wednesday, April 5, 2006 10:27 AM Battery Replacement If “ ” flashes, the battery power is low. Install new batteries as soon as possible. If batteries are not replaced even after the “ ” is displayed, the unit may not work properly.

  • Page 45: Troubleshooting

    TS600FX.book Page 45 Wednesday, April 5, 2006 10:27 AM Troubleshooting Problem Cause and Remedy The unit does not work. • Check the settings (p. 6 –14). • Remove the batteries and reinstall them to reset the unit. The unit does not ring. •...
  • Page 46 TS600FX.book Page 46 Wednesday, April 5, 2006 10:27 AM Troubleshooting Problem Cause and Remedy You cannot store a name • Programming is not possible when the and phone number in handset is off the cradle or the memory. SP-PHONE/HEADSET indicator lights. •...

  • Page 47: Safety Instructions

    TS600FX.book Page 47 Wednesday, April 5, 2006 10:27 AM Safety Instructions Take special care to follow the safety suggestions listed below. Installations Environment 1) Do not use this unit near water—for example, near a bathtub, washbowl, sink, etc. Damp basements should also be avoided. 2) The unit should be kept away from heat sources such as radiators, kitchen range, etc.

  • Page 48: Specifications

    Manufactured for Panasonic Communications (Malaysia) Sdn. Bhd. Senai Malaysia Copyright This material is copyrighted by Panasonic Communications (Malaysia) Sdn. Bhd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications (Malaysia) Sdn.
