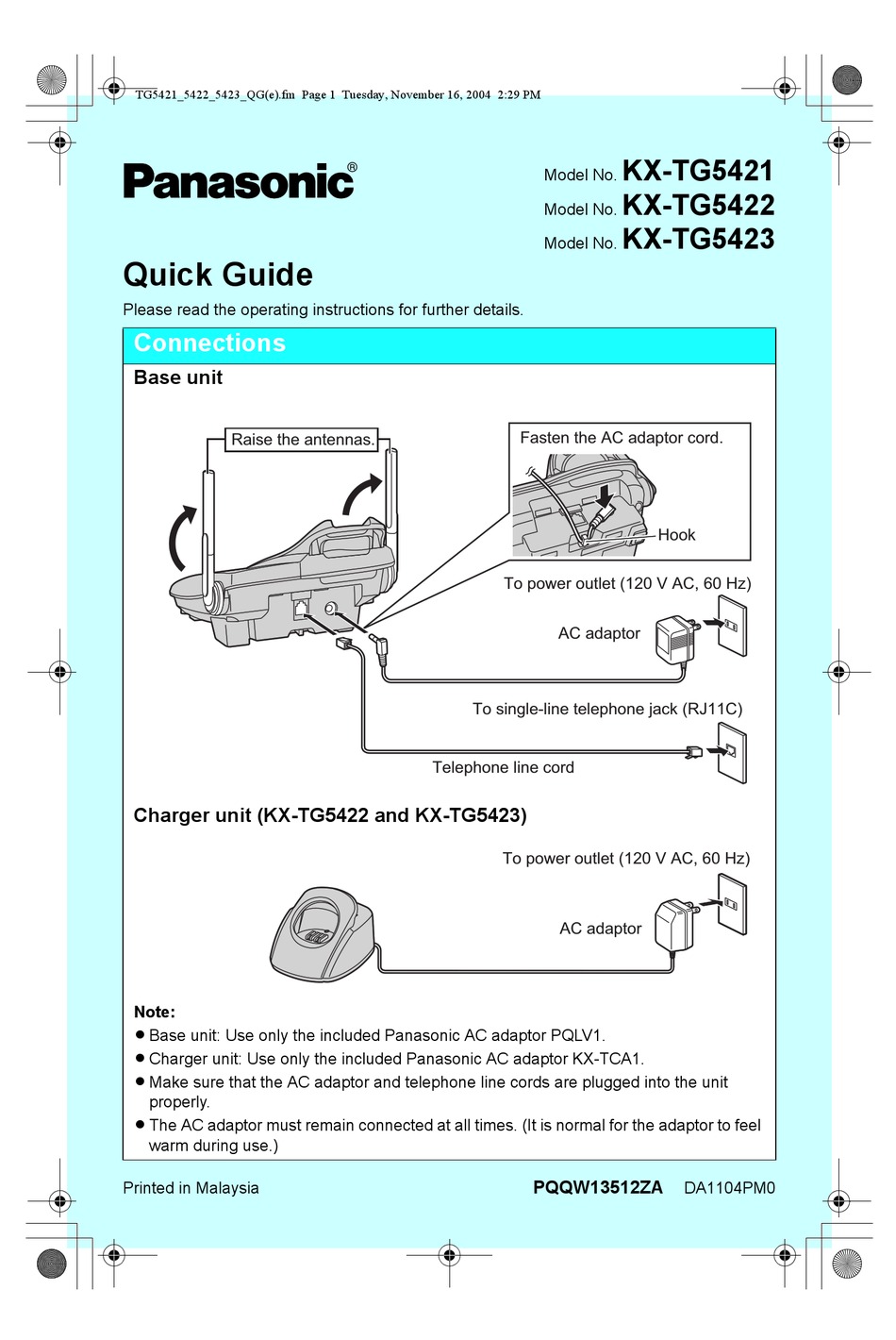

TG5421_5422_5423_QG(e).fm Page 1 Tuesday, November 16, 2004 2:29 PM

Quick Guide

Please read the operating instructions for further details.
Connections

Base unit

Raise the antennas.
Charger unit (KX-TG5422 and KX-TG5423)
Note:
L Base unit: Use only the included Panasonic AC adaptor PQLV1.
L Charger unit: Use only the included Panasonic AC adaptor KX-TCA1.
L Make sure that the AC adaptor and telephone line cords are plugged into the unit
properly.
L The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)
Printed in Malaysia
Model No.
Model No.
Model No.
Fasten the AC adaptor cord.
To power outlet (120 V AC, 60 Hz)
AC adaptor
To single-line telephone jack (RJ11C)
Telephone line cord
To power outlet (120 V AC, 60 Hz)
AC adaptor
PQQW13512ZA
KX-TG5421
KX-TG5422
KX-TG5423
Hook
DA1104PM0

Advertisement

loading

Related Manuals for Panasonic KX-TG5421

Summary of Contents for Panasonic KX-TG5421

  • Page 1: Quick Guide

    AC adaptor Note: L Base unit: Use only the included Panasonic AC adaptor PQLV1. L Charger unit: Use only the included Panasonic AC adaptor KX-TCA1. L Make sure that the AC adaptor and telephone line cords are plugged into the unit properly.

  • Page 2: Battery Installation

    TG5421_5422_5423_QG(e).fm Page 2 Tuesday, November 16, 2004 2:29 PM Battery installation Insert the battery (1), and press it down Close the handset cover. until it snaps into the compartment (2). Battery charge Place the handset on the base unit or charger for 6 hours before initial use. Base unit Charger unit (KX-TG5422 and KX-TG5423)

  • Page 3: Basic Operation

    {V} or {^}. Then, press {C}. To answer a call Press {C}. To put an outside call on hold KX-TG5421: Press {HOLD} during an outside call. KX-TG5422 and KX-TG5423: Press {HOLD} 2 times during an outside call. Voice Mail service Voice Mail is an automatic answering service offered by your telephone company.

  • Page 4: Adding Items To The Phonebook

    TG5421_5422_5423_QG(e).fm Page 4 Tuesday, November 16, 2004 2:29 PM Phonebook Adding items to the phonebook Press {Phonebook}. Enter the phone number (max. 32 digits). Rcvd Phone Kcalls book L Enter phone no. Press {Add}. Example: Press {Next}. Example: Phonebook 7 items KAdd SearchL 555-765-4321...

  • Page 5: Programming Via Direct Commands

    TG5421_5422_5423_QG(e).fm Page 5 Tuesday, November 16, 2004 2:29 PM Programming via direct commands You can program most features using “direct commands”—special codes that take you directly to the feature you wish to program and allow you to select the desired setting. There is no need to scroll through the unit’s menus.
  • Page 6 If your product is not working properly. . . 1 Read this Quick Guide or Operating Instructions 2 Visit our website: http://www.panasonic.com/ consumersupport 3 Contact us via the web at: http://www.panasonic.com/contactinfo 4 Call us at: 1-800-211-PANA (7262) To order a replacement batteries, 1-800-332-5368 http://www.panasonic.com/batterystore...
