Page 1: Operating Instructions

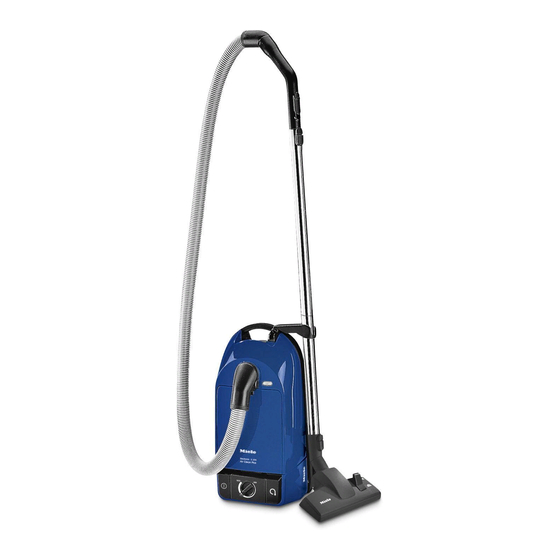

Operating instructions Vacuum cleaners S 240 / S 290 series These operating instructions apply to S 240 / S 290 series vacuum cleaners as well as to other models which are distinguished by names rather than numbers. M.-Nr. 05 773 260... - Page 2 Crevice nozzle ........... . 13 Upholstery nozzle .
- Page 3 The transport and protective packing Old appliances may contain materials material has been selected from materi- which can be reclaimed or recycled. als which are environmentally friendly Please contact your dealer, your local for disposal and can normally be recy- waste collection centre or scrap mer- cled.
- Page 5 Mains cable with plug (plug varies depending on country) Cable rewind Suction power selector On/Off switch Release button for accessories compartment Dustbag change indicator Elbow Dust compartment lid catch Hand piece Air inlet valve Locking button Suction tube Slide control Fold-out suction tube holder Carrying handle Park system...
- Page 6 This appliance meets statutory A damaged vacuum cleaner can safety requirements. Inappropriate be dangerous. Check the packag- use can however lead to personal ing, the vacuum cleaner and accesso- injury and damage to property. ries for any signs of damage. Do not Read the operating instructions use a damaged appliance.
- Page 7 Do not vacuum up liquids or damp Do not pull or carry the appliance dirt. This will cause major faults by the cable. When disconnecting and could seriously impair the function- from the mains socket pull by the plug ing and electrical safety of the appli- not by the cable.
- Page 8 If the cable is damaged it should vacuuming with a Miele Electro- or be replaced together with a com- Turbobrush do not touch the rotating plete cable rewind by a Miele service roller brush. technician. It is not advisable to vacuum di- rectly with the handle, i.e.
- Page 9 ^ Insert the elbow into the suction socket. To remove the suction hose from the vacuum cleaner, ^ Press the release buttons at the side of the elbow and lift the hose from the socket. ^ Fit the hand piece of the suction hose into the suction tube and turn clock- wise or anti-clockwise until they lock together with a click.
- Page 10 (depending on model) One part of the telescopic tube is packed inside the other and can be ad- justed to suit your height for comfort- able vacuum cleaning. ^ Press the telescopic tube release button (see arrow) to release the tubes and adjust to the required height.
- Page 11 For hard flooring, such as stone and floors which are susceptible to scratching, e.g. par- quet, we recommend using the special Miele floor brush (see "Optional acces- sories"). It is also important to observe the flooring manufacturer's cleaning and care instructions.
- Page 12 Other tools, in addition to the floorhead, are supplied with the vacuum cleaner to help deal with various types of clean- ing. – Crevice nozzle – Upholstery nozzle These tools are stored in the special compartment integrated into the actual vacuum cleaner and can be put back after use.
- Page 13 The different tools can either be fitted to the hand-piece or, as required, to the suction tube. Also for cleaning stairs. For cleaning in folds, crevices or cor- ners. For cleaning upholstery, mattresses, cushions, curtains, covers etc.
- Page 14 ^ Hold the plug and unwind cable to the required length (max. approx. 6.5 metres). When vacuuming for longer than 30 minutes, pull the cable out to at least of its total length, even when working close to the wall socket. Otherwise there is a danger of over- heating and damage.
- Page 15 To switch the vacuum cleaner on or off: ^ Press the On/Off switch. ^ When vacuuming pull the cleaner be- hind you on its wheels. You can stand it upright for vacuuming stairs and curtains etc. When vacuuming especially fine dust, e.g.
- Page 16 (for models with a rotary selector) The suction power can be regulated to suit the type of flooring. The higher the wattage the more powerful the suction. Reducing the suction power reduces the amount of effort required to ma- noeuvre the floorhead. Setting the suc- tion power selector according to the degree of soiling and type of flooring being cleaned, will save energy.
- Page 17 (for models with a suction tube holder) ^ Stand the vacuum cleaner upright when it is not being used and during storage. ^ Fold out the tube holder on the suc- tion tube and attach it to the vacuum cleaner. If the tube holder is in an unsuitable po- sition it can be moved along the suction tube and turned as required.
- Page 18 The dustbag change indicator shows when the dustbag needs to be changed. ^ Set the suction power selector (if present) to the highest setting. ^ Switch the vacuum cleaner on and lift the floorhead off the floor a little. To do this test you should only use the standard floorhead on your vacuum cleaner.
- Page 19 Change the dustbag when the colour move the plug. marker in the dustbag change indicator fills the display. The Miele filter system consists of three filters. – Dustbag Replace the SUPER air clean filter ev- – Exhaust filter (SUPER air clean) ery time you start a new packet of dustbags.
- Page 20 ^ Press the release button for the dust compartment lid and raise the lid as far as it will go. ^ To remove the dustbag hold the bag by the collar and pull it out of its holder. The dustbag has a closing flap which closes automatically when the dustbag is removed to prevent any dust escap- ing.
- Page 21 Replace the SUPER air clean filter ev- ery time you start a new packet of Miele dustbags. A SUPER air clean filter is supplied with every packet of Miele dustbags.
- Page 22 2. Take the bearing out of the roller. 3. Take out the roller. Remove all threads and hair etc, then replace the individual parts in the cor- rect order. Spare parts are available from your Miele dealer or from the Miele Spare Parts Department.
- Page 23 Always disconnect the vacuum cleaner from the electricity supply for maintenance work and for clean- ing. Switch off at the wall socket and remove the plug (pull on the plug, not the cable). External surfaces of the vacuum cleaner and of the accessories can be cleaned with a dry cloth or a slightly damp cloth or with a proprietary cleaner suitable for plastic.
- Page 24 A temperature limiter switches the vacuum cleaner off automatically if it gets too hot. This can occur if, for instance, large articles block the suction tube or when the dustbag is full or contains particles of fine dust. A heavily soiled exhaust or dust compartment filter can also be the cause of overheating.
- Page 25 In the event of a fault that you cannot easily remedy, please contact – your Miele Dealer or – the nearest Miele Service Depart- ment. (See address on back page). Please note that telephone calls may be monitored and recorded to im-...
- Page 26 The Turbobrush is particularly suitable for vacuuming cut pile carpeting. The brush is operated by the suction power of the vacuum cleaner. It has a rotating brush and is very effective at picking up thread, hairs and fluff. It is also important to observe the flooring manufacturer's cleaning and care instructions.
- Page 27 Special brush for cleaning hard floors (parquet, stone, PVC), and flooring which might be scratched, (e. g. with a high shine). For cleaning radiators, narrow shelves and crevices. ^ Attach the radiator brush to the crev- ice nozzle. For cleaning skirting boards, ornate or carved articles, etc.
- Page 28 For dusting books, shelves, etc. For cleaning upholstery, mattresses, cushions, curtains, covers etc. For cleaning in folds, crevices or cor- ners.
- Page 29 The CarClean Set Plus has been de- signed for valeting the interior of cars. It consists of: – Hand-held Turbobrush – Micro-hose with combination nozzle (crevice nozzle and dusting brush) – Crevice nozzle (300 mm) These are supplied in a carry case to- gether with a 3 m long suction hose with hose clip.
- Page 30 All electrical work should be carried out by a suitably qualified and competent person in strict accordance with na- tional and local safety regulations. The voltage and rated load are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains sup- ply.
- Page 32 Alteration rights reserved / (S 240/S 290) / 1303 M.-Nr. 05 773 260 / V01 This paper consists of cellulose which has been bleached without the use of chlorine.
