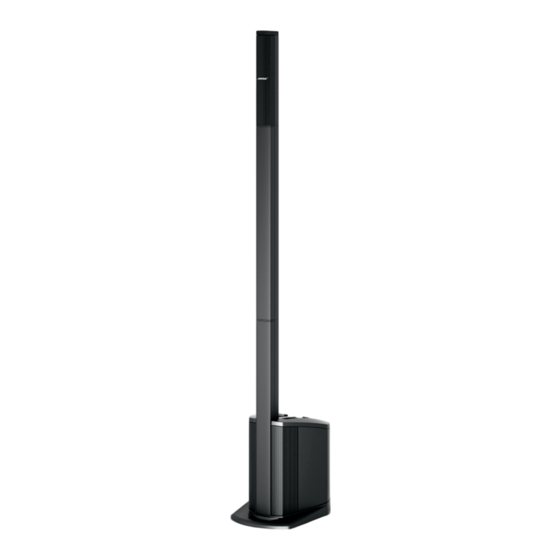

Bose L1 Technical Data Sheet

L1 compact portable line array system
Hide thumbs Also See for L1:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
L1
Compact
®
portable line array system

Key Features

•
High-performing, self-powered, portable two-way
loudspeaker system designed for the production and
reproduction of live music, music playback, speeches
and A/V sound reproduction.
•
Spatial Dispersion
loudspeaker technology produces wide,
™
uniform sound coverage throughout the entire listening
area – even off to the extreme sides.
•
Integrated ToneMatch
equalization curves for dynamic handheld microphones
and acoustic guitars.
•
Offers both collapsed and extended setup positions.
•
For smaller spaces with audiences of up to 100.
Description
The L1
Compact portable line array system is a powered
®
loudspeaker system designed to provide wide, uniform sound
coverage and easy setup. Spatial Dispersion loudspeaker
technology combines proprietary Bose
the entire listening area – even off to the extreme sides. The interlocking components are easily
transported and eliminate the need for external speaker wires and stands.
The system offers a built-in, two-channel mixer with XLR,
phone jack compatibility. The L1 Compact system is well-suited for professional applications such as
music playback, speeches and A/V sound reproduction.
Descriptive Data
System Specifications
System Type
Calculated Maximum SPL @ 1m (continuous and peak)
Frequency Range (-3 dB)
Frequency Range (-10 dB)
Crossover Frequency
Nominal Coverage Pattern
Power
System Power Handling
Distortion at Rated Power
System Limiter
Transducers
High-Frequency Drivers
Low-Frequency Driver
Channel 1 – Microphone Only Input
Signal Indicators
ToneMatch
Preset
®
Bose Professional Systems Division
presets contain hardwired
®
technologies to deliver clear, powerful sound throughout
®
∕
" (3.5 mm) TRS, stereo RCA, and ¼" TRS
1
8
Self-powered, two-way
106 dB continuous, 112 dB peak
65 Hz – 14 kHz
50 Hz – 16 kHz
400 Hz 4
th
order Butterworth
180° H x 40° V
130 W
0.1% Max 30 Hz – 15 kHz
Dynamic Limiting
(6) 2.00" HF drivers
(1) 8" LF driver
Signal/Clip LED: Green = Signal Present
Red = Clip (limiter active)
NOTE: The ToneMatch equalization is always engaged on Channel 1
and cannot be bypassed. The preset is designed to optimize a dynamic
handheld microphone for the L1 Compact system.
1
OF 8
p r o . B o s e . c o m

Advertisement

Table of Contents
loading

Related Manuals for Bose L1

Summary of Contents for Bose L1

  • Page 1: Key Features

    The system offers a built-in, two-channel mixer with XLR, ∕ " (3.5 mm) TRS, stereo RCA, and ¼" TRS phone jack compatibility. The L1 Compact system is well-suited for professional applications such as music playback, speeches and A/V sound reproduction. Descriptive Data...
  • Page 2 Enclosure and Extensions Enclosure: Polypropylene Extension + Array: ABS Net Weight and Dimensions L1 Compact Collapsed Position 24.6 lbs. (11.2 kg) 16.5" H x 13.25" W x 16.75" D (418 mm x 339 mm x 426 mm) L1 Compact Extended Position 29.2 lbs.

  • Page 3: Signal Flow Block Diagram

    Compact ® portable line array system Mechanical Diagrams Signal Flow Block Diagram Extended Position Channel 1 Channel 2 Microphone 1/8" 1/4" Jack Jacks Jack XLR Jack Pre Amp Buffer Buffer Pre Amp Tone Match Volume Tone Match Bass Adjust Bass 2.8"...
  • Page 4 Compact ® portable line array system Polar Plots ¹⁄ ³ Octave Horizontal 125 Hz Octave Band 250 Hz Octave Band 500 Hz Octave Band -30 -24 -18 -12 -6 -30 -24 -18 -12 -6 -30 -24 -18 -12 -6 100 Hz 200 Hz 400 Hz 125 Hz...
  • Page 5 Compact ® portable line array system Polar Plots ¹⁄ ³ Octave Vertical 125 Hz Octave Band 250 Hz Octave Band 500 Hz Octave Band -30 -24 -18 -12 -6 -30 -24 -18 -12 -6 -30 -24 -18 -12 -6 100 Hz 200 Hz 400 Hz 125 Hz...
  • Page 6 Compact ® portable line array system Beamwidth Horizontal Vertical 1000 10000 20000 Frequency (Hz) Directivity Index and Q 1000 1000 10000 20000 Frequency (Hz) OF 8 p r o . B o s e . c o m...

  • Page 7: Specifications

    Engineers’ and Architects’ Specifications Safety and Regulatory Compliance The system shall be a multiple driver, full-range portable loudspeaker system with internally The L1 Compact system complies with the supplied power amplification and active following standards: equalization for multiple operating modes •...

  • Page 8: Product Codes

    L1 Compact Microphone Accessory Kit ........
