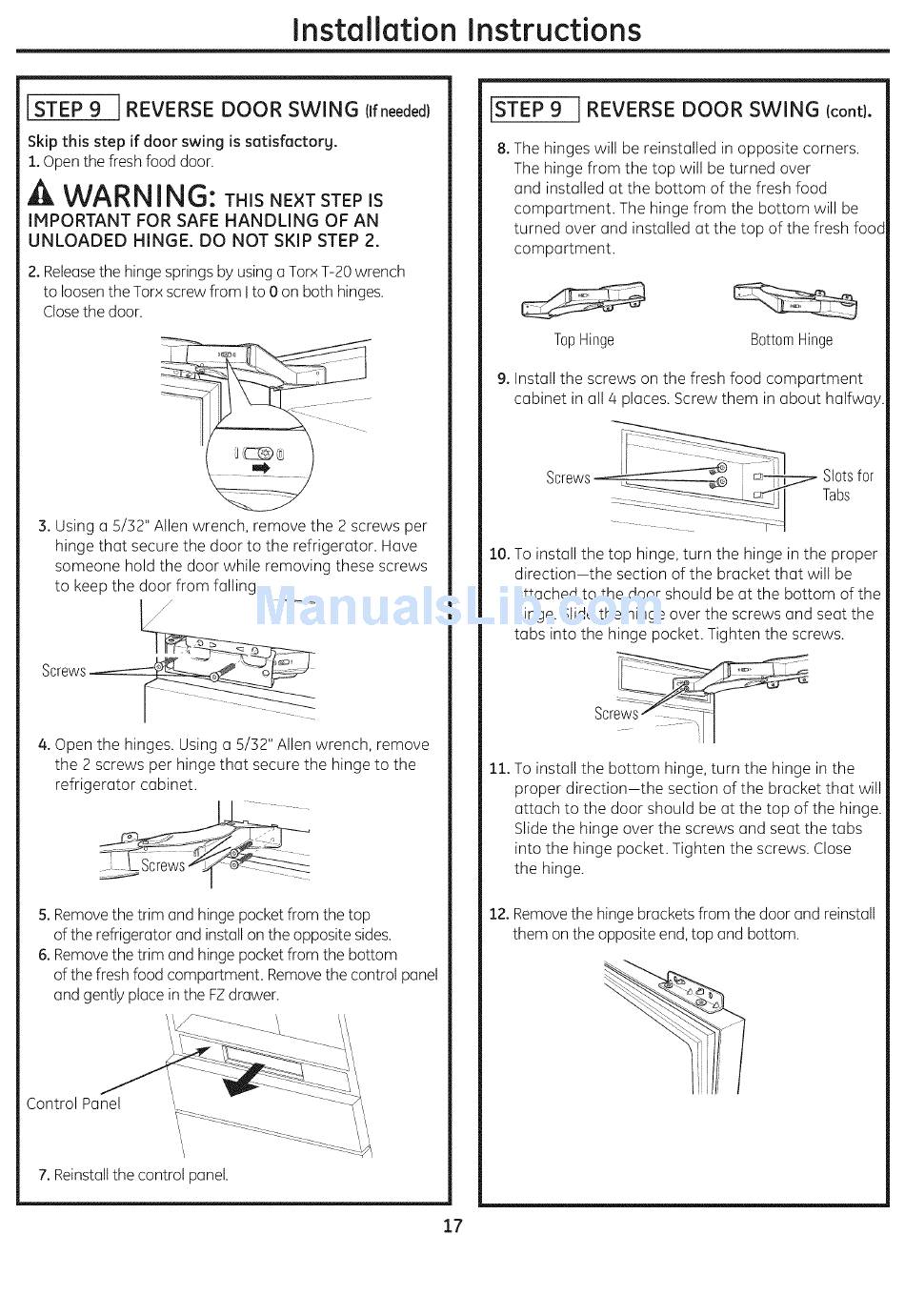

Installation Instructions
STEP 9 I REVERSE DOOR SWING Ilfneeded}
Skip this step if door swing is satisfactorg.
1. Open the fresh food door.
A WARNING: THIS N EXT S TEP Is
IMPORTANT FOR SAFE HANDLING OF AN
UNLOADED HINGE. DO NOT SKIP STEP 2.
2. Releosethe hinge springs by using o Torx T-20 wrench
to loosen the Torx screw from I to 0 on both hinges.
Close the door.
3. Using o 5/32" Allen wrench, remove the 2 screws per
hinge thot secure the door to the refrigerator. Hove
someone hold the door while removing these screws
to keep the door from falling.
Screws
4. Open the hinges. Using o 5/32" Allen wrench, remove
the 2 screws per hinge that secure the hinge to the
refrigerator cabinet.
5. Removethe trim and hinge pocket from the top
of the refrigerator ond install on the opposite sides.
6. Removethe trim ond hinge pocket from the bottom
of the fresh food comportment. Removethe control panel
and gently place in the FZdrawer.
Control Ponel
7. Reinstallthe control panel.
17
STEP 9 REVERSE DOOR SWING
Icont}.
8. The hinges will be reinstalled in opposite corners.
The hinge from the top will be turned over
and instolled at the bottom of the fresh food
comportment. The hinge from the bottom will be
turned over and installed at the top of the fresh food
comportment.
TopHinge BottomHinge
9. Install the screws on the fresh food comportment
cabinet in oil 4 places. Screw them in about halfway.
Screws Slots for
Tabs
10. To install the top hinge, turn the hinge in the proper
direction-the section of the bracket that will be
attached to the door should be ot the bottom of the
hinge. Slide the hinge over the screws and seat the
tabs into the hinge pocket. Tighten the screws.
Scr
11. To install the bottom hinge, turn the hinge in the
proper direction-the section of the bracket that will
attach to the door should be ot the top of the hinge.
Slide the hinge over the screws and seat the tabs
into the hinge pocket. Tighten the screws. Close
the hinge.
12. Removethe hinge brackets from the door and reinstall
them on the opposite end, top and bottom.
