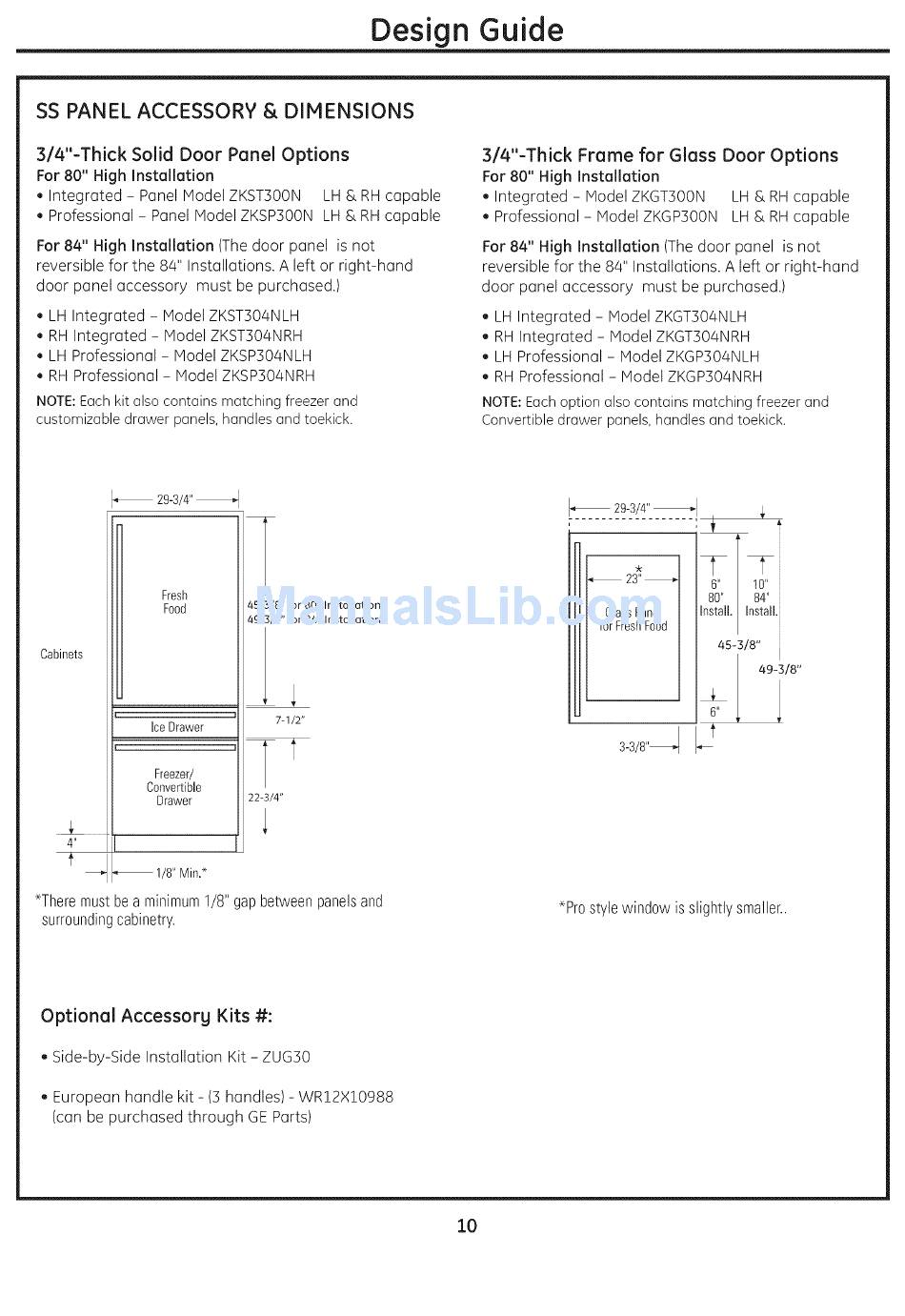

SS PANEL ACCESSORY & DIMENSIONS
3/4"-Thick Solid Door Panel Options
For 80" High Installation
. Integrated - Panel Model ZKST3OON LH & RH capable
. Professional - Panel Model ZKSP3OON LH & RH capable
For 84" High Installation (The door panel is not
reversible for the 84" Installations. A left or right-hand
door panel accessory must be purchased.)
. LH Integrated - Model ZKST304NLH
. RH Integrated - Model ZKST304NRH
. LH Professional- Model ZKSP304NLH
. RH Professional - Model ZKSP304NRH
NOTE: Each kit also contains matching freezer and
customizable drawer panels, handles and toekick.
3/4"-Thick Frame for Glass Door Options
For 80" High Installation
. Integrated - Model ZKGT3OON LH & RH capable
. Professional- Model ZKGP3OON LH & RH capable
For 84" High Installation (The door panel is not
reversible for the 84" Installations. A left or right-hand
door panel accessory must be purchased.
. LH Integrated - Model ZKGT304NLH
. RH Integrated - Model ZKGT304NRH
. LH Professional - Model ZKGP304NLH
. RH Professional - Model ZKGP30/4NRH
NOTE: Each option also contains matching freezer and
Convertible drawer panels, handles and toekick.
Cabinets
4"
I_ 29-3/4" _
Fresh
Food
IceDrawer
Freezer/
Convertible
Drawer
45-3/8" for 80" Installation
49-3/8" for 84" Installation
7-1/2"
t
22-3/4"
1/8" Min. _
_Theremust be a minimum1/8" gap betweenpanelsand
surrounding cabinetry.
29-3/4"_1
23"_
GlassPanel
for FreshFood
Install Install.i
4s-318"
49-3/8"
_Pr0style window is slightly smaller..
Optional Accessorg Kits #:
. Side-by-Side Installation Kit - ZUG30
. European handle kit - (3 handles) - WR12X10988
(can be purchased through GE Parts)
