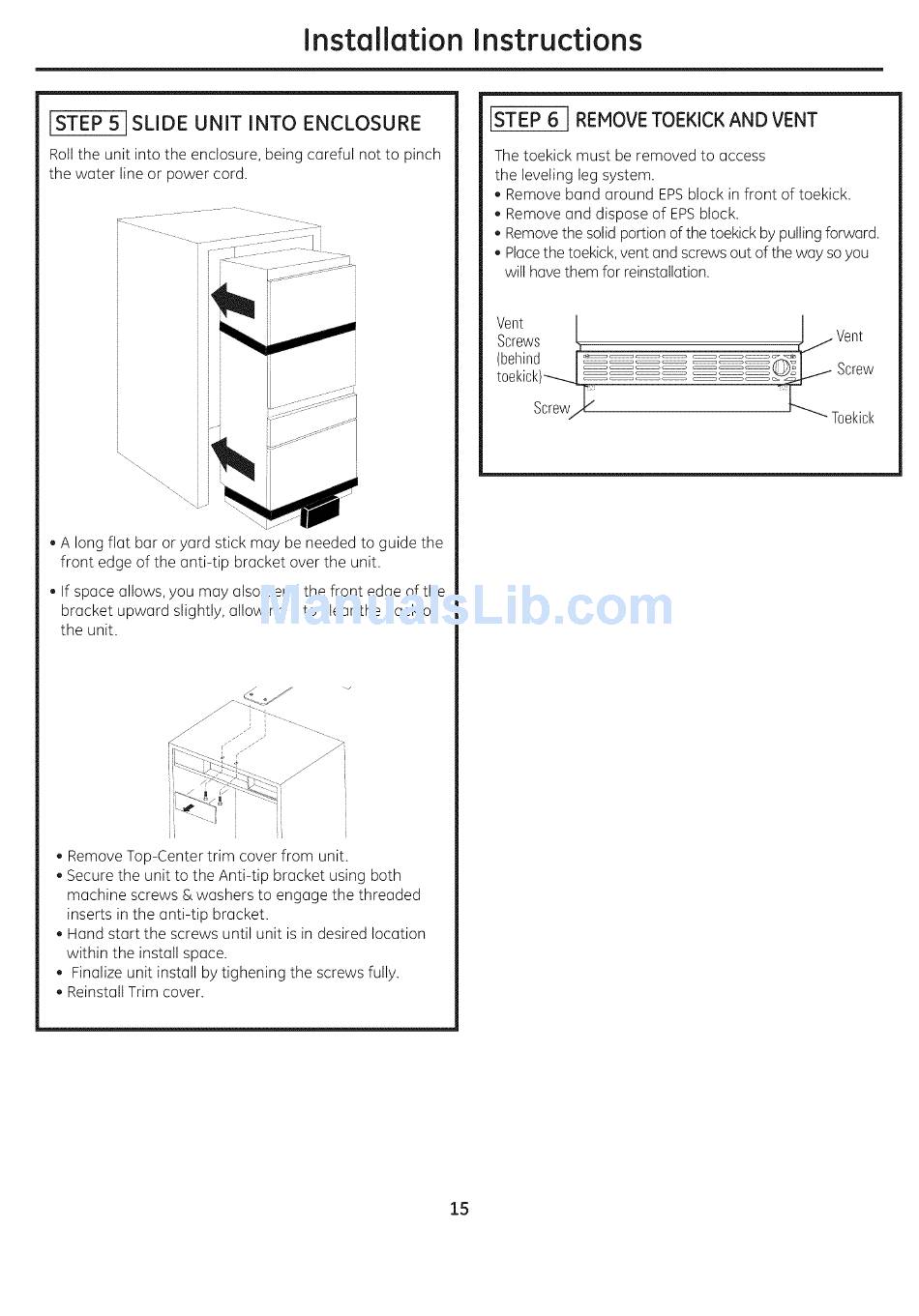

Installation instructions
STEP 5 SLIDE UNIT INTO ENCLOSURE
Roll the unit into the enclosure, being careful not to pinch
the water line or power cord.
, A long flat bar or yard stick may be needed to guide the
front edge of the anti-tip bracket over the unit.
, If space allows, you may also bend the front edge of the
bracket upward slightly, allowing it to clear the back of
the unit.
li
, Remove Top-Center trim cover from unit.
Secure the unit to the Anti-tip bracket using both
machine screws & washers to engage the threaded
inserts in the anti-tip bracket.
Hand start the screws until unit is in desired location
within the install space.
Finalize unit install by tighening the screws fully.
Reinstall Trim cover.
[STEP 6 I REMOVETOEKICKAND VENT
The toekick must be removed to access
the leveling leg system.
Remove band (]round EPSblock in front of toekick.
Remove and dispose of EPSblock.
Remove the solid portion of the toekick by pulling forward.
Placethe toekick, vent and screws out of the way so you
will have them for reinst(]ll(]tion.
Vent
Screws
(behind
t0ekick)_--_.
Screw/X
/Vent
% ew
_L_ T0el<icl<
