GE Monogram ZV830SM Dimensions And Installation Information

ZV830SM
GE Monogram
Dimensions and Installation Information (in inches)
This vent hood is designed to be installed on a wall
and vented to the outdoors, or it can be installed for
recirculating operation. All necessary parts for recirculating
operation are supplied with the hood. No kits required. Must
use an 8" round duct, not supplied with product.
A decorative duct cover is provided to enclose the duct
from the top of the hood to a 8' to 10' ceiling.
Accessories:
An optional stainless steel duct cover is available for
12' ceiling heights. Order ZX83012 optional duct cover
at the same time as the vent hood and have on site
before installation.
Dimensions and Clearances:
The vent hood should be installed 24" min. and 30" max.
above the cooking surface. The cooking surface should be at
least 36" above the floor. Installation will be easier if the vent
hood is installed before the range or cooktop/countertop
is installed.
This hood can be installed over a Monogram electric or gas
cooktop. It cannot be installed over a Monogram professional
cooktop or range.
Installation Information: Before installing, consult
installation instructions packed with product or available
on monogram.com for current dimensional data.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
®

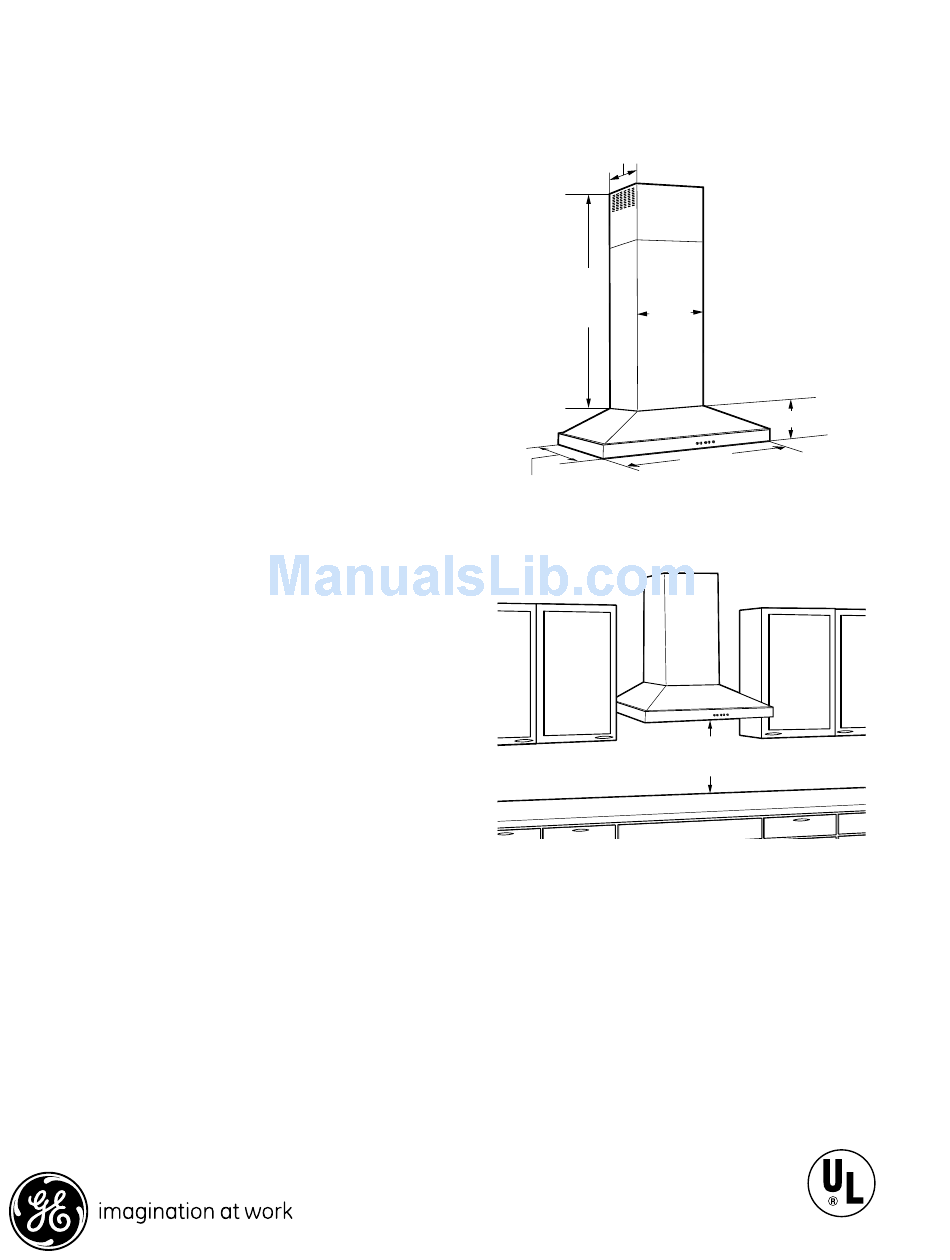

30" Wall-Mounted Vent Hood
GE Profile or
® ™
service,
®
10-7/8
*Height
to
Ceiling 13-1/4
18-7/8
*The Supplied Duct Cover Fits 8' to 10' Ceiling Heights.
30" Max.
Specification Created 11/07
5-7/8
29-7/8
24" Min.
