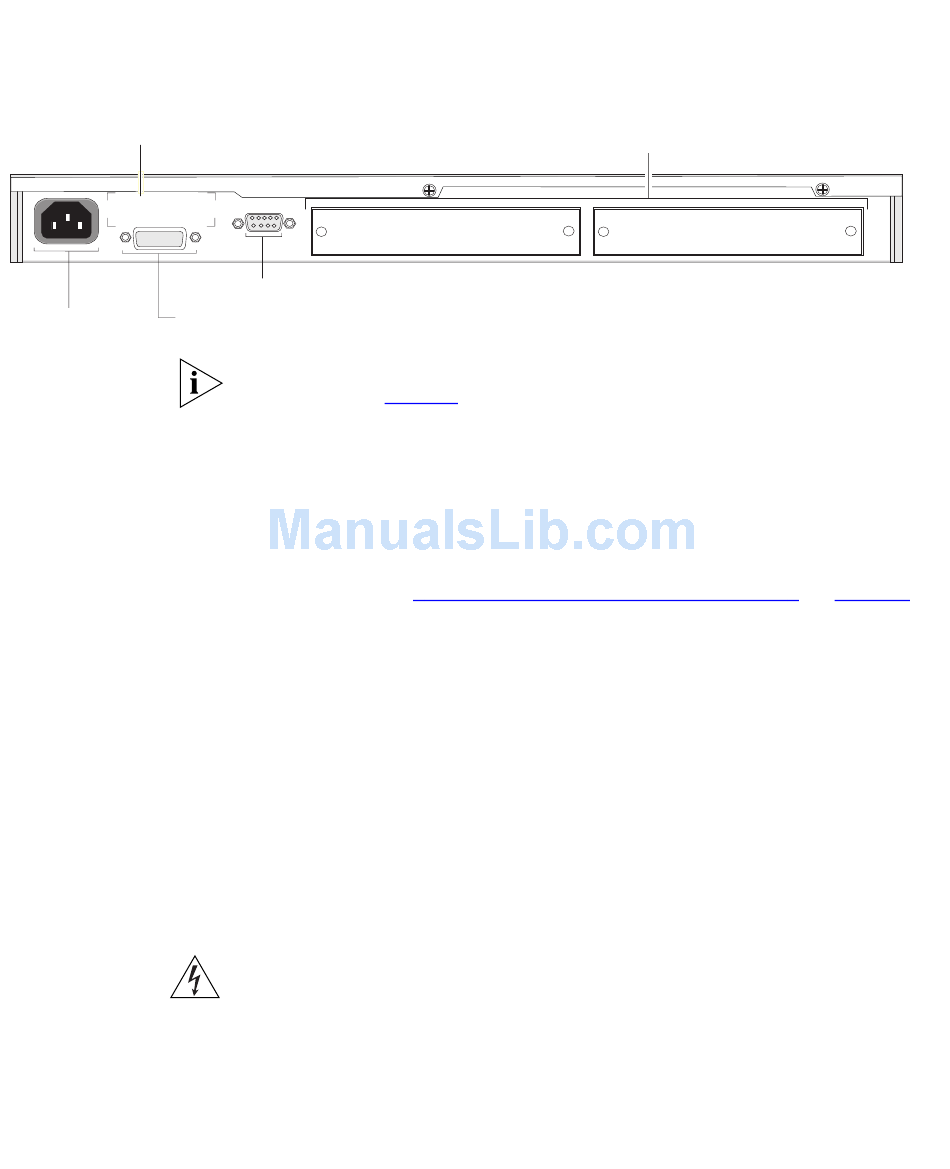

Figure 7 Switch 4400 PWR — rear view 2
Supply Data Warning Label

Expansion Module Slots

Console Module 1
Module 2
(max) 19200,8,1,N

Console Port

Power Socket

Redundant Power System Socket

The Switch 4400 PWR (24-port) that you have purchased has the rear
view shown in Figure 7.
Power Socket The Switch automatically adjusts its power setting to any supply voltage
in the range 90-240 VAC.
Redundant Power To protect against internal power supply failure, you can use this socket
System Socket to connect a Switch 4400 to a SuperStack 3 Advanced Redundant Power
System (RPS). See "Connecting a Redundant Power System" on page 30.
Console Port The console port allows you to connect a terminal and perform remote or
local out-of-band management. The console port uses a standard null
modem cable and is set to auto-baud, 8 data bits, no parity and 1 stop
bit.
Expansion Module You can use these slots to install Expansion Modules. These allow the
Slots Switch to support various forms of connection and add extra functionality
to your Switch. For example you can install a Cascade module to enable
the Switch to be stacked with other Switches. Please note that PoE is not
supported on expansion modules on the Switch 4400 PWR (3C17205).
Contact your supplier for more information.
WARNING: When an Expansion Module is not installed, ensure the
blanking plate is fitted by tightening all screws with a suitable tool.
