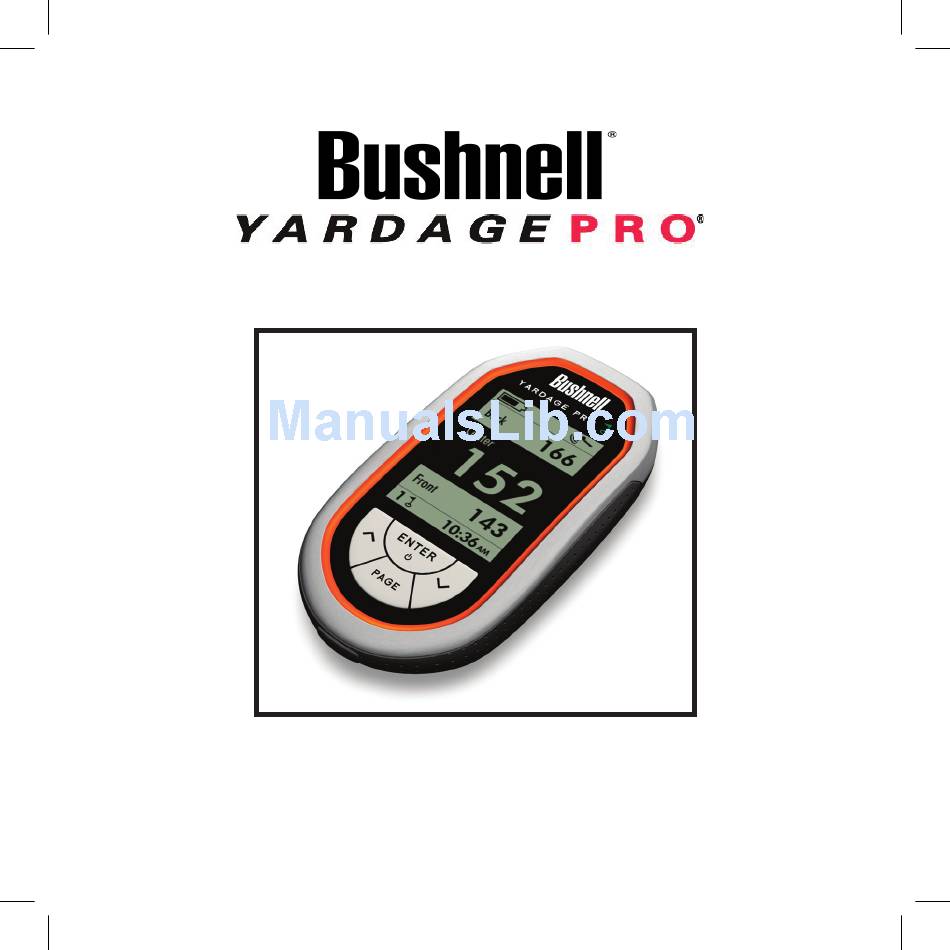

- Page 1 GOLF GPS Owner’s Manual Model # 368100 Lit # 98-1182 / 5-08 YP GPS manual draft rev6.indd 1 5/22/08 2:25:46 AM...
- Page 2 GPS equipment. All course data sources may contain some level of inaccuracies or incomplete data. Bushnell strives to provide the most up to date and accurate course information at a reasonable cost. Warning:...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page # Warnings and Notices Table of Contents About GPS Introduction/Features Software License Agreement what’s Included / Charging the Battery Parts and Display reference System requirements Installing Software and Downloading Course Data 9-13 yardage Pro Sync application screens Power on/Start Page Acquiring GPS Satellite Signals The Settings Page... - Page 4 About GPS GPS stands for “Global Positioning System”. launched by the United States Department of Defense, GPS consists of a constellation of 32 satellites orbiting the earth at nearly 11,000 miles. These satellites are traveling at a speed that allows them to circle the earth twice each day while emitting a very low power signal.
- Page 5 The yardage Pro GPS delivers only the essential information you want, with no unnecessary frills, bells or whistles-it’s the world’s easiest to use GPS for golf. Bushnell yardage Pro. Because every swing counts. The yardage Pro GPS is a specialized global positioning satellite receiver for the golfer, designed to provide many years of enjoyment.
- Page 6 ThIS AGreemenT CArefUlly. Bushnell grants you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights and intellectual property rights in and to the Software remain with Bushnell.
- Page 7 What’s Included in the Package: • yardage Pro GPS with internal rechargeable li-Ion battery • AC Charger • USB Cable • Soft Carrying Pouch • quick Start Guide Charging the Battery: Connect the supplied USB cable to the port under the rubber cover on the bottom end of the yP GPS (see next page).
- Page 8 Parts and Display Reference Battery GPS Satellite Condition Reception Icon Icon Distance to Green (Center, Front, Back) Clock Hole # or Timer ENTER/Power Key DOWN (Previous) (Next) PAGE Key USB Port YP GPS manual draft rev6.indd 8 5/22/08 2:25:47 AM...
-
Page 9: System Requirements
•After the installation is complete, launch the software by clicking the “yardage Pro GPS Sync” icon on your windows desktop. you will see the startup screen “welcome to the Bushnell yardage Pro Sync Application” (Fig. A), followed by the main menu screen (Fig B). -
Page 10: Yardage Pro Sync Application Screens
Yardage Pro Sync Application Screens Fig. B: Main Menu screen Fig. A: Startup screen Fig. D: Send Courses screen Fig. C: Settings screen YP GPS manual draft rev6.indd 10 5/22/08 2:25:48 AM... - Page 11 Installing the Software and Downloading Golf Course Data 2. Connect the Yardage Pro GPS to Your Computer (cont.) •hold the enTer key on the yardage Pro GPS to turn on the power. •The Sync Application will typically automatically find and recognize the USB port where your yP GPS unit is connected.
- Page 12 Installing the Software and Downloading Golf Course Data 3. Download Golf Course GPS Data to Your Computer (cont.) •Click an underlined course name from the search results to see the Course Info/Download screen (Fig. E). Click “Download GPS & Scorecard”, then click “Save” in the popup file Download window. The data will be downloaded and saved to both your PC and yP GPS (if connected).
- Page 13 Installing the Software and Downloading Golf Course Data Fig. E: Course Information and Download screen Click to download GPS data and scorecard for the course 4. You’re Ready to Go Play Golf! •make sure you are in an open area, away from tall buildings and trees, for best reception of GPS satellite signals.
-
Page 14: Acquiring Gps Satellite Signals
PLAYING GOLF WITH YOUR YARDAGE PRO GPS Power On/Start Screen hold the enTer key for 2 seconds to turn on the yP GPS. The Start Screen displays three options: PlAy, SeTTInGS, and Power off . Press the Down (next) key to highlight the option you want to select, then press enTer. -
Page 15: The Settings Page
The Settings Page Although you’ll be spending most of your time on the Play page, checking the distance from where you’re standing to each green, you must first select a course and tee box, so let’s take a look at the Settings page where this is done. from the Start screen, press Down once to select (highlight) SeTTInGS and press enTer. - Page 16 2) Setting Your Tee Box The yP GPS also lets you specify which tee box you will be using as you play the course. make sure you have selected a course first, then select “Tee Box Set” from the Settings page menu and press enTer. you will see a list of tee boxes that are provided on your chosen course, with the longest (most difficult) tee box at the top of the list.
- Page 17 3) Reset Timer The yP GPS has a simple stopwatch feature that you can use to help keep track of your pace while you play- it will show the elapsed time since you began playing if you start it at your first tee off. Or, you can reset the timer anytime you like to use it however you wish.
- Page 18 5) Units-Yards/Meters By default, the distances displayed on the yP GPS are in yards. To change the distance units to meters, select “Units” from the Settings page and press enTer. Select “yards” or “meters” by pressing UP or Down, then press ENTER to confirm and return to the Settings page menu.
-
Page 19: The Play Page
The Play Page The Play page is where you will spend most of your time when using the yP GPS. It simply shows you the distances in yards (or meters-see Setting #5) from your current location front, Center and Back of each green on the course. - Page 20 Reading Distances to the Green (Custom) The yardage Pro GPS offers the capability to change the location of the downloaded front, Center, and Back locations for each hole. for example, if you would like to change the location of the green “Center” for a given hole, first verify that hole# is displayed in the lower left corner of the Play page.
- Page 21 Reading Distances to the Green (Custom) note that if you “custom adjust” one or more distances for one or more of the greens on the course you have selected, those new, adjusted distances will remain in the memory of the yP GPS for future use the next time you play that course.
-
Page 22: The Score Card Page
The Score Card Page The Score Card page is simply a page displaying relevant information about the hole you are currently playing-the data is included in the downloaded data for each course, cannot changed user. To view the Score Card for the hole you are currently playing (as indicated by the “hole #”... -
Page 23: The Drive Distance Page
The Drive Distance Page The Drive Distance page is a simple “Point A to Point B” measurement that lets you mark any two locations and find the distance between them. During a golf game, this can be used to measure the distance of a shot you made. -
Page 24: Troubleshooting
Troubleshooting SYMPTOM POSSIBLE PROBLEM SOLUTION No Power On 1. Batteries are low or dead 1. Recharge battery. 2. Power key was not pressed for 2. Press power key until LCD comes on. 1-2 sec. Unit does not detect 1. Insufficient time allowed for 1. -
Page 25: One Year Limited Warranty
Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9 For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Bushnell at: Bushnell Germany GmbH European Service Centre Mathias-Brüggen-Str. - Page 26 Notes YP GPS manual draft rev6.indd 26 5/22/08 2:25:51 AM...
-
Page 27: Fcc Compliance Statement
· Consult the dealer or an experienced radio/TV technician for help. The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Bushnell repair center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and will void your warranty and your authority to operate this device under Part 15 regulations. - Page 28 Customer Service: (800) 423-3537 www.bushnell.com ©2008 Bushnell Outdoor Products YP GPS manual draft rev6.indd 28 5/22/08 2:25:52 AM...
