Pro-Form 900 Cardiocross Trainer User Manual page 7

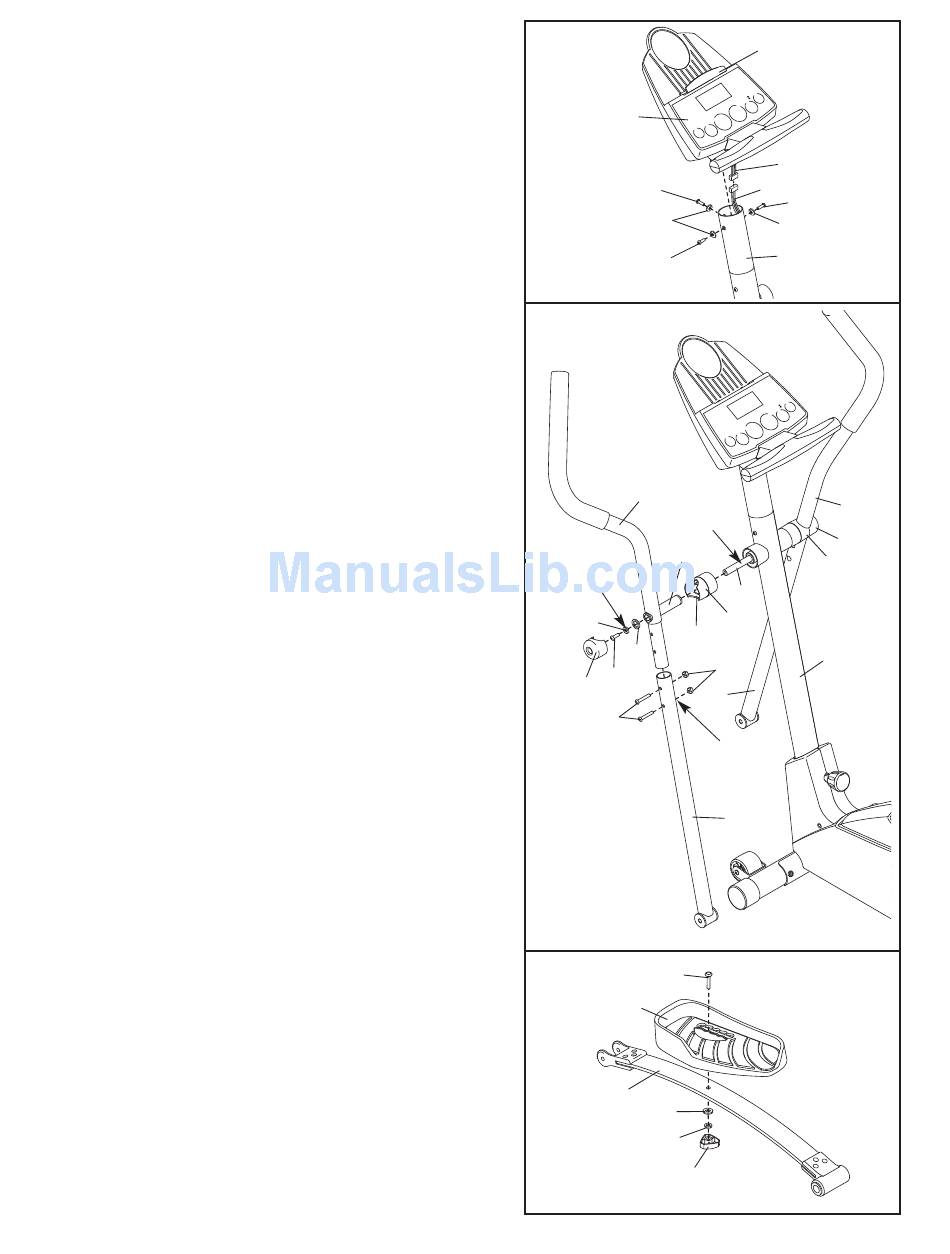

6. While another person holds the Console (23) in the
position shown, connect the wire harness on the
Console to the Extension Wire Harness (44). Insert the
excess wire harness into the Upright Extension (73).
Attach the Console (23) to the Upright Extension (73)
with three M10 x 27mm Button Screws (67) and three
M10 Split Washers (59). Be careful to avoid pinch-
ing the wire harnesses.
Snap the bookrack onto the Console (23) in the indicat-
ed location.
7. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (5); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (38). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Attach the Right Handlebar (8) to the other Handlebar
Leg (5) in the same way.
Apply a generous amount of the included grease to the
Pivot Axle (83) and to the two M8 Washers (55). Next,
insert the Pivot Axle into the Upright (2) and center it.
Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (47) onto the short tube on
each Handlebar (6, 8), and rotate the Handlebar
Spacers so the small arrows are pointing toward the
floor. Next, slide the Handlebars onto the Pivot Axle (83).
Make sure that the Handlebars are on the correct
sides.
Tighten an M8 x 25mm Patch Screw (56) with an M8
Washer (55) and a Wave Washer (84) into each end of
the Pivot Axle (83). Next, orient the two Handlebar Caps
(46) as shown, and press the small tabs on the
Handlebar Caps into the two Handlebar Spacers (47).
8. Identify the left Pedal Spring (11), which is marked with
a sticker. Attach the Left Pedal (13) to the left Pedal
Spring with an M10 x 29mm Pedal Bolt (80), an M10
Washer (78), an M10 Split Washer (59), and a Pedal
Knob (81) as shown. Note: The Left Pedal can be
attached in any of five positions (see HOW TO ADJUST
THE PEDALS AND THE UPRIGHT on page 9).
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
6
23
67
7
6
Grease
55
84
56
46
50
8
13
11
7
Bookrack
Wire Harness
44
67
59
59
73
67
Grease
Tube
47
83
47
Arrow
2
38
5
Hexagonal
Holes
5
80
78
59
81
8
46
