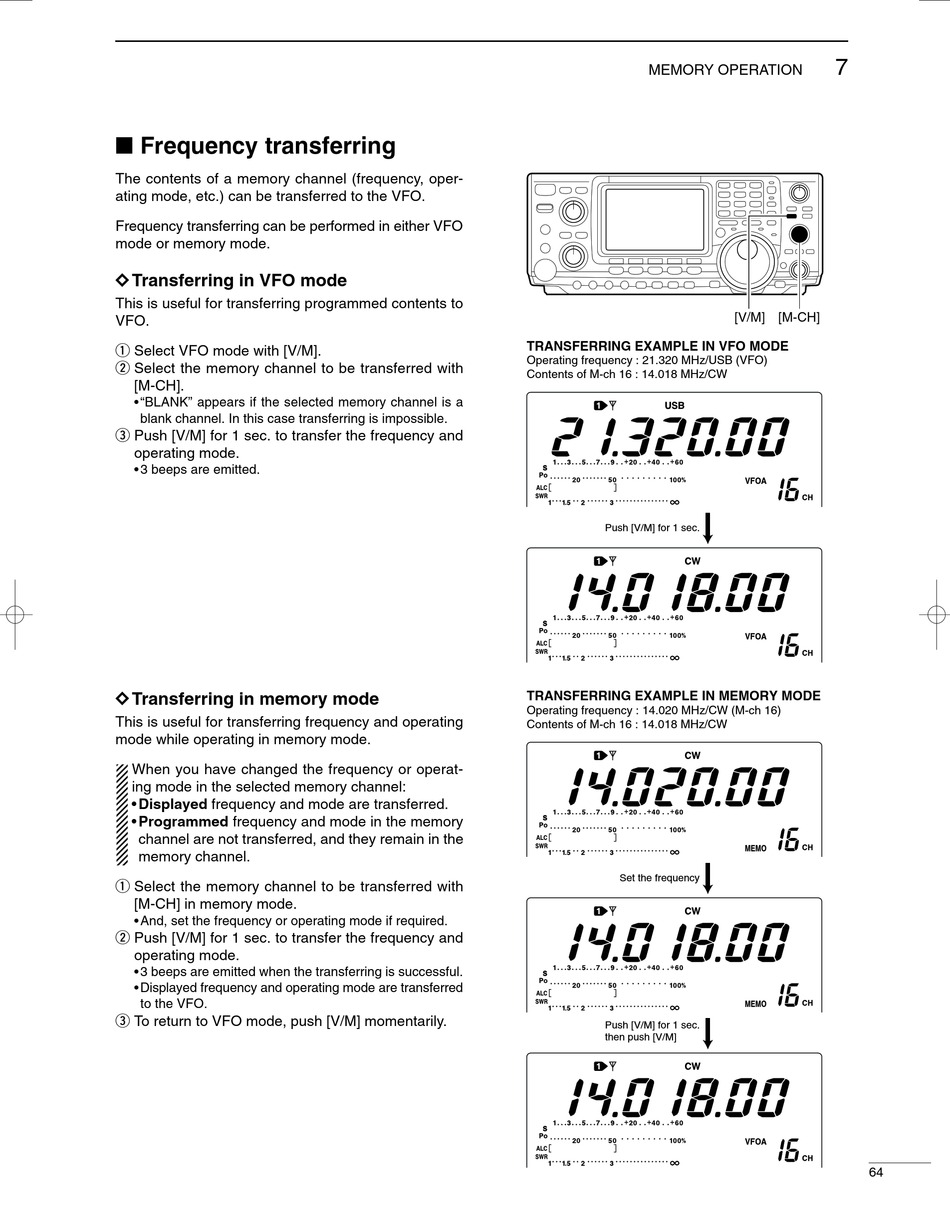

I Frequency Transferring - Icom IC-7400 Instruction Manual

I Frequency transferring

The contents of a memory channel (frequency, oper-
ating mode, etc.) can be transferred to the VFO.
Frequency transferring can be performed in either VFO
mode or memory mode.
D D Transferring in VFO mode
This is useful for transferring programmed contents to
VFO.
q Select VFO mode with [V/M].
w Select the memory channel to be transferred with
[M-CH].
• "BLANK" appears if the selected memory channel is a
blank channel. In this case transferring is impossible.
e Push [V/M] for 1 sec. to transfer the frequency and
operating mode.
• 3 beeps are emitted.
D D Transferring in memory mode
This is useful for transferring frequency and operating
mode while operating in memory mode.
When you have changed the frequency or operat-
ing mode in the selected memory channel:
• Displayed frequency and mode are transferred.
• Programmed frequency and mode in the memory
channel are not transferred, and they remain in the
memory channel.
q Select the memory channel to be transferred with
[M-CH] in memory mode.
• And, set the frequency or operating mode if required.
w Push [V/M] for 1 sec. to transfer the frequency and
operating mode.
• 3 beeps are emitted when the transferring is successful.
• Displayed frequency and operating mode are transferred
to the VFO.
e To return to VFO mode, push [V/M] momentarily.
MEMORY OPERATION
TRANSFERRING EXAMPLE IN VFO MODE
Operating frequency : 21.320 MHz/USB (VFO)
Contents of M-ch 16 : 14.018 MHz/CW
Push [V/M] for 1 sec.
TRANSFERRING EXAMPLE IN MEMORY MODE
Operating frequency : 14.020 MHz/CW (M-ch 16)
Contents of M-ch 16 : 14.018 MHz/CW
Set the frequency
Push [V/M] for 1 sec.
then push [V/M]
7
[V/M] [M-CH]
64
