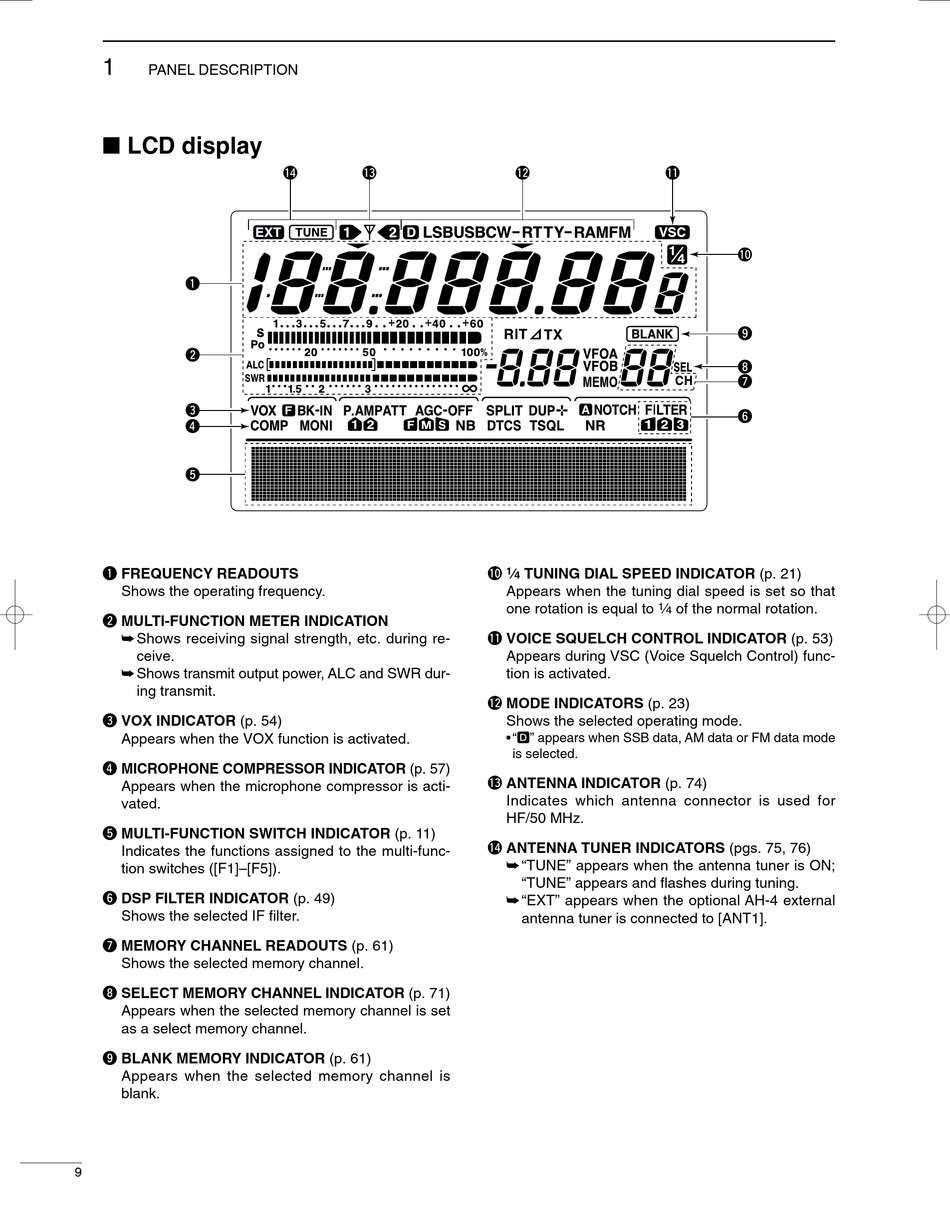

PANEL DESCRIPTION

I LCD display

q
w
e
r
t
q FREQUENCY READOUTS
Shows the operating frequency.
w MULTI-FUNCTION METER INDICATION
➥ Shows receiving signal strength, etc. during re-
ceive.
➥ Shows transmit output power, ALC and SWR dur-
ing transmit.
e VOX INDICATOR (p. 54)
Appears when the VOX function is activated.
r MICROPHONE COMPRESSOR INDICATOR (p. 57)
Appears when the microphone compressor is acti-
vated.
t MULTI-FUNCTION SWITCH INDICATOR (p. 11)
Indicates the functions assigned to the multi-func-
tion switches ([F1]–[F5]).
y DSP FILTER INDICATOR (p. 49)
Shows the selected IF filter.
u MEMORY CHANNEL READOUTS (p. 61)
Shows the selected memory channel.
i SELECT MEMORY CHANNEL INDICATOR (p. 71)
Appears when the selected memory channel is set
as a select memory channel.
o BLANK MEMORY INDICATOR (p. 61)
Appears when the selected memory channel is
blank.
9
!4 !3 !2
!0
1
⁄ TUNING DIAL SPEED INDICATOR (p. 21)
4
Appears when the tuning dial speed is set so that
one rotation is equal to
!1 VOICE SQUELCH CONTROL INDICATOR (p. 53)
Appears during VSC (Voice Squelch Control) func-
tion is activated.
!2 MODE INDICATORS (p. 23)
Shows the selected operating mode.
• "D" appears when SSB data, AM data or FM data mode
is selected.
!3 ANTENNA INDICATOR (p. 74)
Indicates which antenna connector is used for
HF/50 MHz.
!4 ANTENNA TUNER INDICATORS (pgs. 75, 76)
➥ "TUNE" appears when the antenna tuner is ON;
"TUNE" appears and flashes during tuning.
➥ "EXT" appears when the optional AH-4 external
antenna tuner is connected to [ANT1].
!1
!0
o
i
u
y
1
⁄ of the normal rotation.
4
