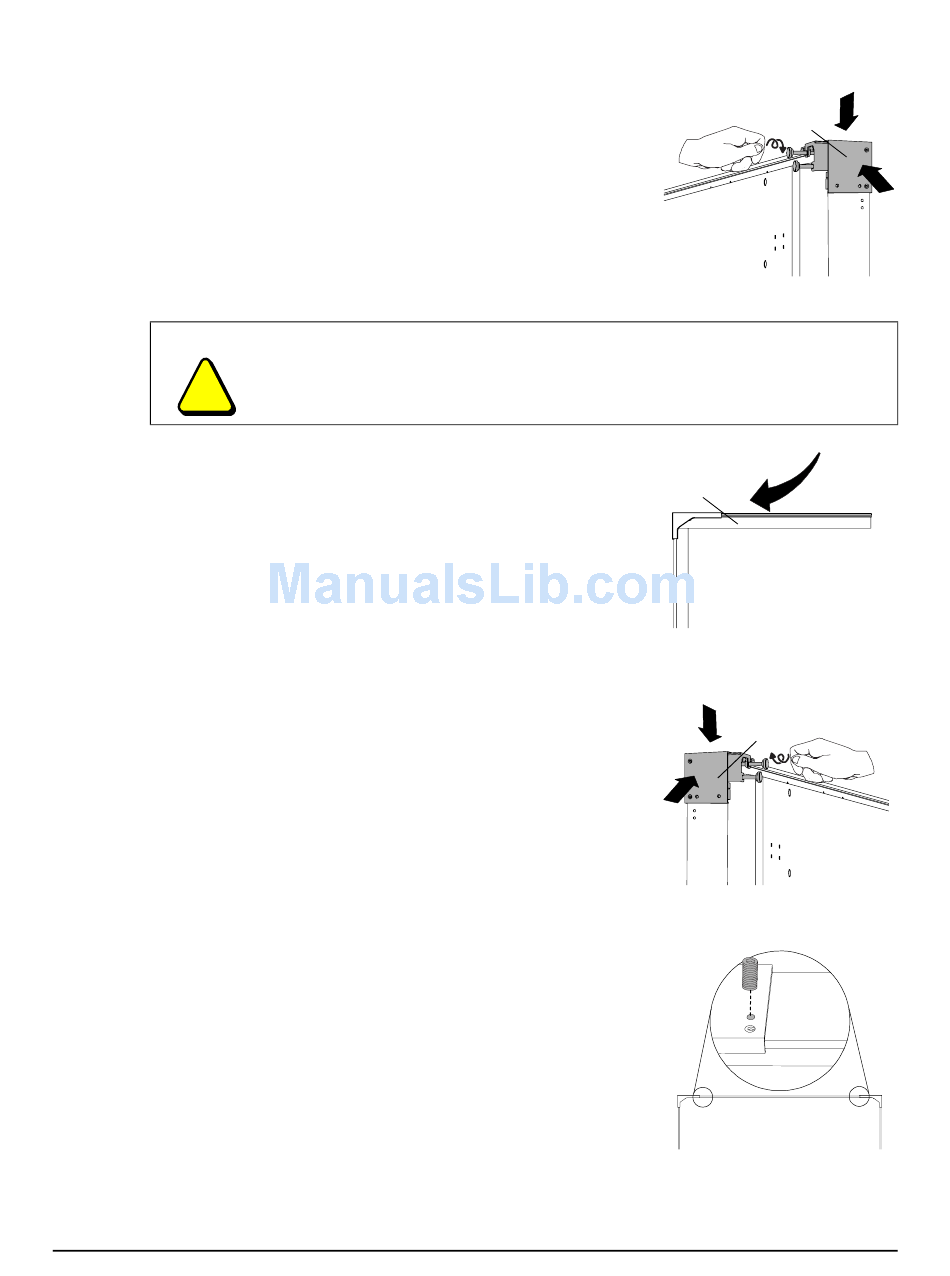

To install the interactive frame on your flat panel
1. Slide the top-left corner block (a) onto the top-left corner of
your flat panel. Ensure that it fits snugly against the side and
top of the flat panel, and then tighten the thumb screws on the
back of the block.
CAUTION
2. Slide the top bezel (f) securely into the corner block that you
attached in the previous step.
3. Slide the top-right corner block (b) onto the top-right corner of
your flat panel. Ensure that the block fits snugly against the
side and top of the flat panel and that the top bezel rests
securely inside the block. Tighten the thumb screws on the
back of the block.
4. Secure the top portion of the frame by inserting four set screws
into the holes in the top blocks, if they aren't already inserted,
and then tighten the screws with the provided hex key.
8
Do not over-tighten the thumb screws, because this could damage the
components. Stop tightening the screw if the metal flange holding the thumb
screw begins to bend.
Installing Your SMART Board interactive display frame
a
f
b
4×
