Summary of Contents for Chauvet Hurricane
- Page 1 User Manual...
-
Page 2: Table Of Contents
© Copyright 2013 CHAUVET®. All rights reserved Printed in P.R.C. Electronically published by CHAUVET® in the United States of America Page 2 of 18 Hurricane™ 1800 Flex User Manual Rev. 6... -
Page 3: Before You Begin
Therefore, if the received merchandise appears to have damages caused during shipping, the customer must submit the damage report and any related claims with the carrier, not CHAUVET®. The customer must submit the report upon reception of the damaged merchandise. Failure to do so in a timely manner may invalidate the customer’s claim with the carrier. -
Page 4: Product At A Glance
Make sure there are no flammable materials close to the unit while operating. · Depending on the amount of fog generated, all fog machines may set off smoke detectors. · Do not use as a space heater. Page 4 of 18 Hurricane™ 1800 Flex User Manual Rev. 6... -
Page 5: Introduction

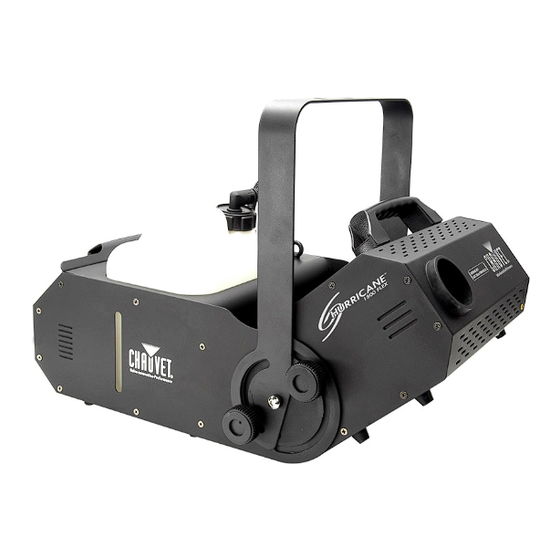

FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1800 Flex. Make sure you use FCQ regularly to increase the life of your fogger. 2. I NTRODUCTION Product Overview Hanging bracket Bracket adjustment Remote knobs control... -
Page 6: Setup
Allow to cool for 5-15 minutes. Using your hand, press on the button for the breaker, until it remains in place. In the event this breaker will not reset, contact CHAUVET® for troubleshooting. The product may need to be serviced. -
Page 7: Data Cabling
Data Cabling To link products together you must obtain data cables. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 8: 3-Pin To 5-Pin Conversion Chart
Secondarily, the products that follow may also require a slave setting. Please consult the “Operating Instructions” section in this manual for complete instructions for this type of setup and configuration. Page 8 of 18 Hurricane™ 1800 Flex User Manual Rev. 6... -
Page 9: Mounting
Never mount in places where the product will be exposed to rain, high humidity, extreme temperature changes, or restricted ventilation. Hanging Clamp Pointing up LAMP IS SOLD SEPARATELY Pointing down Hurricane™ 1800 Flex User Manual Rev. 6 Page 9 of 18... -
Page 10: Operation
000 (0%) in order to allow the fog machine to reset itself. · Once the tank has been refilled with fog fluid, you may resume using the fog machine. The auto cut-off will automatically reset. Page 10 of 18 Hurricane™ 1800 Flex User Manual Rev. 6... -
Page 11: Wireless Controller (Fc-W) (Optional)
Press the fog button, and the fog machine will output fog for as long as you hold down the button. LED indicator LED indicator (ready) (heating) Dipswitches Wireless Transmitter Fog Triggers Wireless Receiver Hurricane™ 1800 Flex User Manual Rev. 6 Page 11 of 18... -
Page 12: Setting The Starting Address
41 – (32) = 9, Turn ON Dip # 6 9 – (8) = 1, Turn ON Dip # 4 Address 233 1 – (1) = 0, Turn ON Dip # 1 Page 12 of 18 Hurricane™ 1800 Flex User Manual Rev. 6... -
Page 13: Dmx Quick Reference Chart
30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510 1 1 1 1 1 31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511 DIP Switch Position DMX Address Hurricane™ 1800 Flex User Manual Rev. 6 Page 13 of 18... -
Page 14: Technical Information
Do not operate the machine without liquid at any time. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1800 Flex. Make sure you use FCQ regularly to increase the life of your fogger. Storage When storing run distilled water (not tap water) through the system as described in the cleaning regimen above. -
Page 15: General Troubleshooting
Make sure connector is firmly connected to device ü ü work If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support at the location listed below. Contact Information World Headquarters United Kingdom & Ireland CHAUVET®... -
Page 16: Returns Procedure
The user must clearly label the package with a Return Merchandise Authorization Number (RMA #). CHAUVET® will refuse any product returned without an RMA #. DO NOT write the RMA # directly on the box. Instead, write it on a properly affixed label. -
Page 17: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). Hurricane™ 1800 Flex User Manual Rev. 6 Page 17 of 18... -
Page 18: Technical Specifications
Data pin configuration (5-pin)pin 1 shield, pin 2 (-), pin 3 (+), pin 4 (not used), pin 5 (not used) Protocols ....................DMX-512 USITT DMX Channels ......................1 ORDERING INFORMATION Hurricane™ 1800 Flex ..............HURRICANE1800FLEX WARRANTY INFORMATION Warranty ..................1-year limited warranty Page 18 of 18 Hurricane™ 1800 Flex User Manual Rev. 6...
