To connect:
1. Turn everything OFF.
2. First attach all cables to devices.
3. Attach signal cables to connectors.
4. Attach power cords to outlet.
5. Turn device ON.
Connecting a computer
The projector comes with an M1-DA analog computer cable. If your computer
has a digital output, you can use the optional M1-DA digital computer cable,
sold separately. See Appendix A for ordering accessories.

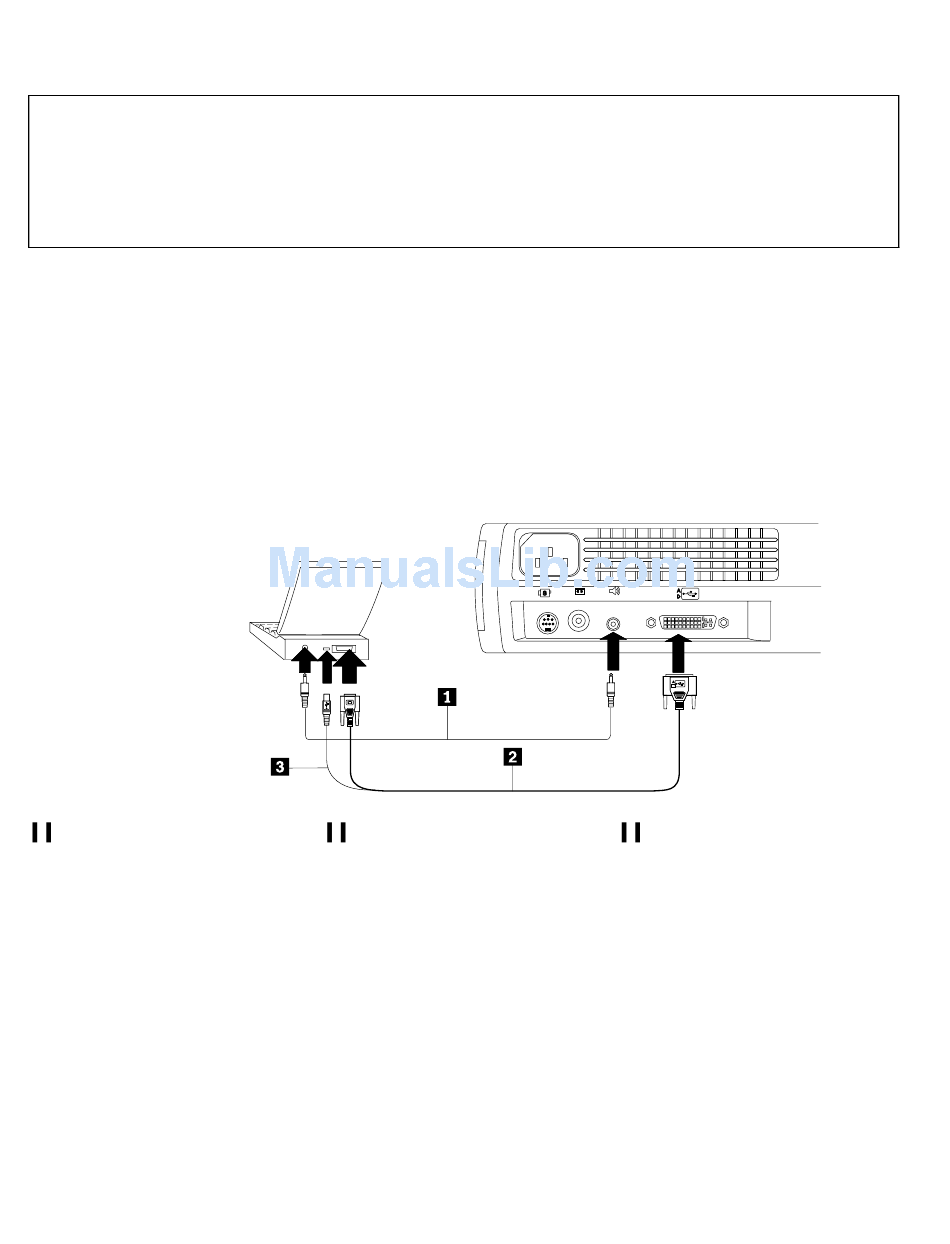

1. Plug the end of the M1-DA analog computer cable (marked A) into the
connector marked AD on the projector.
2. Plug the end of the M1-DA analog computer cable into the video
connector on your computer.
1 Audio cable
Note: Many mobile computers do not automatically turn on their external
Note: If you are connecting the projector to an older Macintosh computer that
6
iL2215 IBM UltraPortable Data/Video Projector: User's Guide
2 MI-DA analog computer cable
video port when a secondary display device such as a projector is
connected. See your computer manual for the command that activates
the external video port. Press Fn F7 on your IBM ThinkPad to activate
the external display. Activation commands for some mobile computers
are listed in Appendix B.
does not have a 15-pin connector, you must use a Mac adapter between
the computer and the projector.
To disconnect:
1. Turn everything OFF.
2. First, remove power cords from outlet.
3. Remove signal cables from connectors.
4. Remove all cables from devices.
in in
3 USB mouse
