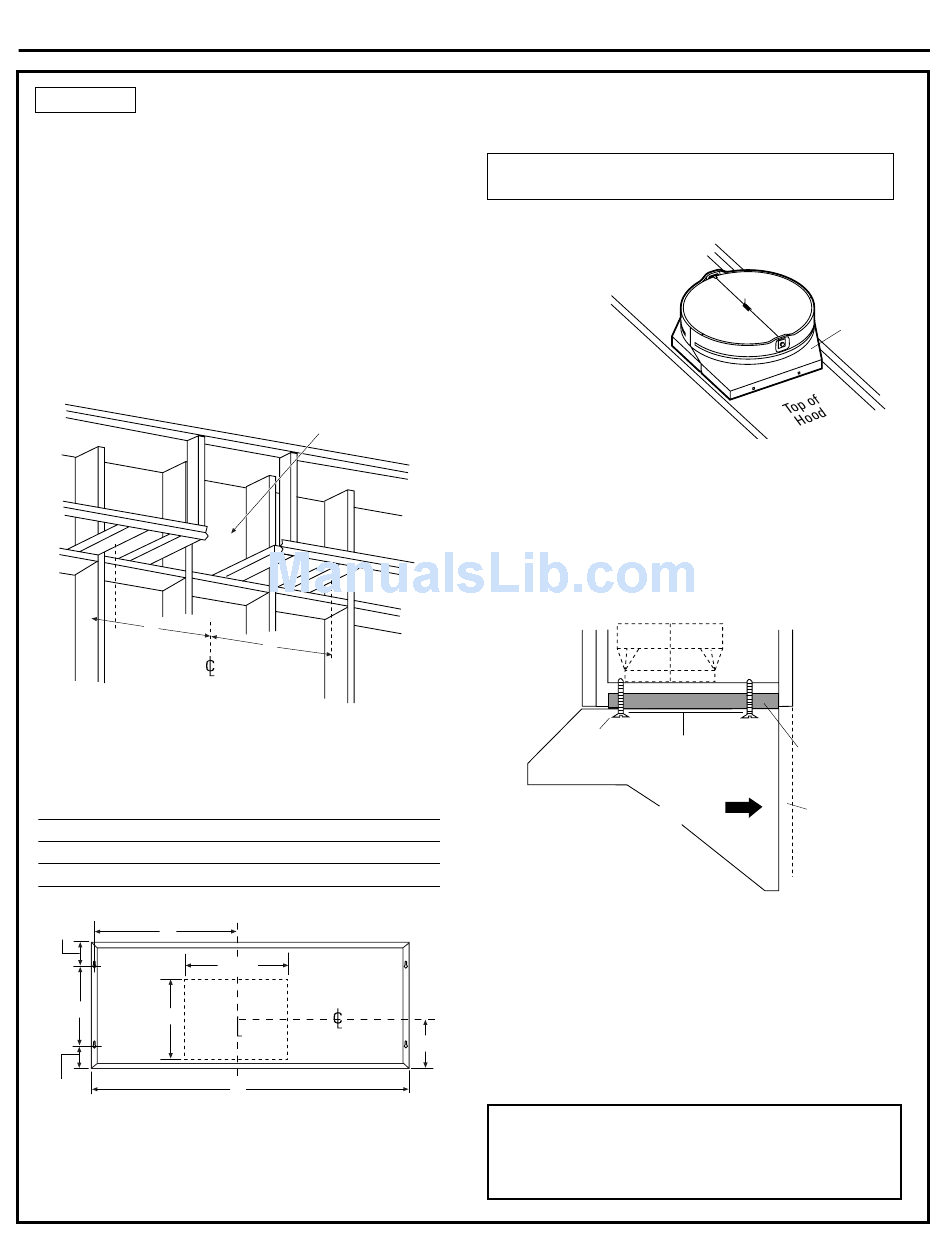

STEP 2B Alternate Mounting Method
INSTALL HOOD TO SOFFIT OR BENEATH CABINETS
SKIP THIS STEP IF USING WALL MOUNTING
METHOD
When necessary, the hood may be installed so that it is
supported by the soffit.
• The soffit should be constructed with 2 x 4's.
• Determine the installation location on the wall.
• Continue the centerline forward on the bottom of the
cabinet or soffit.
• The opening above the hood should allow for the 10"
round duct and clearance to slide the hood back
against the wall.
A
• The 2 x 4 studs must be located as shown in the chart,
Dim. A. to accept mounting screws.
"A"
Centerline to Stud
and Keyhole Slots
ZV48R
23-9/16"
ZV36R
17-9/16"
ZV30R
14-9/16"
A
2"
7-1/2"
8"
2-9/16"
Back of Hood
• Drill 1/8" pilot holes into the studs at the locations
shown in the top view illustration.
Installation Instructions
Requires 10-1/2" Min.
Opening For Ductwork
and Hood Installation
A
"B"
Hood Width
At the Top
47-15/16"
35-15/16"
29-15/16"
Top View
Front of Hood
8-1/8"
C
B
IMPORTANT: Soffit framing must be capable
of supporting up to 150 lbs.
Install Transition Onto Top of Hood
IMPORTANT: Remove
shipping tape from
damper and check that
damper moves freely.
• Place the transition piece over the hood exhaust and
secure with 4 screws provided.
• Use duct tape to seal the connection. Check to be sure
the damper moves freely.
Mount Hood onto Soffit or Cabinet
Note: If mounting to the underside of a cabinet with a
recessed bottom, install shims to fill the gap.
Engage Top
Keyhole Slots
• Drive mounting screws into the studs until they
protrude 1/4". The 1/4" gap will provide clearance to
engage the keyhole slots in the top of the hood.
• Lift hood to installation position. Locate house wiring
and route through the knockout (from the back or
top of the hood).
• Lift hood onto mounting screws. Slide back against
6"
the rear wall.
• Tighten mounting screws.
IMPORTANT: For additional support and to
minimize vibration during operation, the hood
must be secured to the back wall. Use wall anchors
to fasten bottom back of hood to the wall.
12
Duct
Transition
Soffit
Add Shims
1/4" Gap
If Bottom
Is Recessed
Push Back
Back
to Wall
Wall
